Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-KC13A |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Usage: | Abrasion Resistance Of Footwear | Warranty: | 12 Months |
|---|---|---|---|
| Product Name: | Martindale Tester | Application: | Footwear Industry |
| Quality: | High,good | Advantage: | Factory Direct Sale, Fast Delivery |
| Feature: | Reliable, Professiona | Price: | Factory Price |
| Highlight: | SATRA TM31 Martindale Abrasion Tester,Footwear Vamp Material Martindale Abrasion Tester,SATRA TM31 Martindale Tester |
||
|

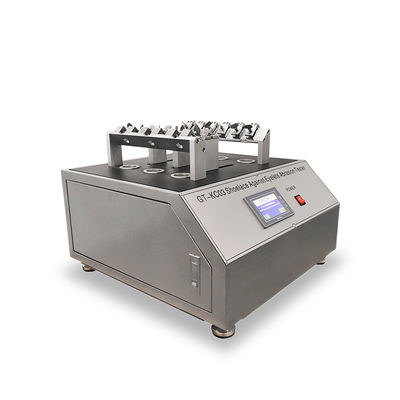

Application: The Martindale Abrasion Tester is used to determine the abrasion resistance of all kinds of footwear vamp material. Samples are rubbed against known abrasion at low pressures and in continuously changing directions and the amount of abrasion. The unique design allows removal of individual sample holders for examination without lifting the top motion plate.
Standards: ISO 20344 section 6.12, ISO 5470-2, ISO 12947 AS/NZS 2210.2 section 6.12 GB/T 20991 section 6.12 EN 344-1 section 5.14, EN 13520 BS 3424.24, ASTM D4966, SATRA TM31 EN 388 Section 6.1
|
|
Model |
GT-KC13A |
|
Control mode |
LCD Counter display |
|
Abradant table |
≥ ￠125mm |
|
Lissajous figure |
60±1 mm x 60±1 mm |
|
Test Pressure |
A) Specimen holder: (198 ±2)g B) Larger loading piece: (597±5)g C) The sum mass: (795±7)g, for workwear, upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa) |
|
A) Specimen holder: (198 ±2)g B) Smaller loading piece: (397±5)g C) The sum mass: (595±7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa) |
|
|
Exposed area of specimen holder |
645 ± 5 mm2 |
|
Rotational Speed |
47.5 ± 2.5 r/min |
|
Pressing Weight |
Mass : (2.5 ± 0.5) kg |
|
Diameter: Φ(120 ± 10) mm |
|
|
Dimensions |
62x 60 x 45 cm ( L x W x H ) |
|
Weight |
80kg |
