| Product Name: | TAPPI T803 Puncture Resistance Tester Of Corrugated Box | Price: | Factory Price |
|---|---|---|---|
| Certificate: | CE ISO | Warranty: | 1 Year |
| Key Words: | Puncture Resistance Tester | Standards: | ISO3036, GB/T2679.7, TAPPI T803 |
| Printer: | Thermal Printer | Dimension(mm): | 900*420*810 |
| Weight (kg): | About 120 Kg | Resolution: | 0.001J |
| High Light: | TAPPI T803 puncture resistance tester,Corrugated Box puncture resistance tester,puncture resistance test of corrugated box |
||
TAPPI T803 Puncture Resistance Tester Of Corrugated Box
Application
GT-N18 Puncture Resistance Tester is for various kinds of cardboard such as boxboard an Corrugated cardboard. The tester is designed according to the standard. The puncture strength is the energy that the puncture produces recur to he kinetic energy of the oscillating body. The tester is composed mainly by the rack equipment, splinting devices, pendulum devices, release devices and components such as control box; its shape the structure of a diagram.
Equipment with compact structure and function of the whole, easy to operate, stable performance, reliable security features. It is the necessary equipment of Inspection for production enterprises, research units and departments of Quality Supervision.
Standards
ISO3036, GB/T2679.7, TAPPI T803
Key Specification
| Model | bGT-N18 |
| Gear Positions |
A:0~6J; B:6~12J; C:12~24J; D:24~48J |
| Accuracy | ≤±0.5% |
| Testing Range | 0~48J |
| Resolution | 0.001J |
| Pressure of the Press Head | 100±2kpa |
| Friction sleeve resistance | <0.25J |
| Pyramid Side Length | 60×60×60mm, height: 25±0.7mm |
| Pyramid Edge Fillet Radius | 1.5±0.1mm |
| Data Save Amount | 10 times |
| Printer | Thermal Pinter |
| Dimension(mm) | 900×420×810 |
| Weight (kg) | About 120 kg |
| Power supply | 1 phase AC 220V 50/60Hz 1KW |

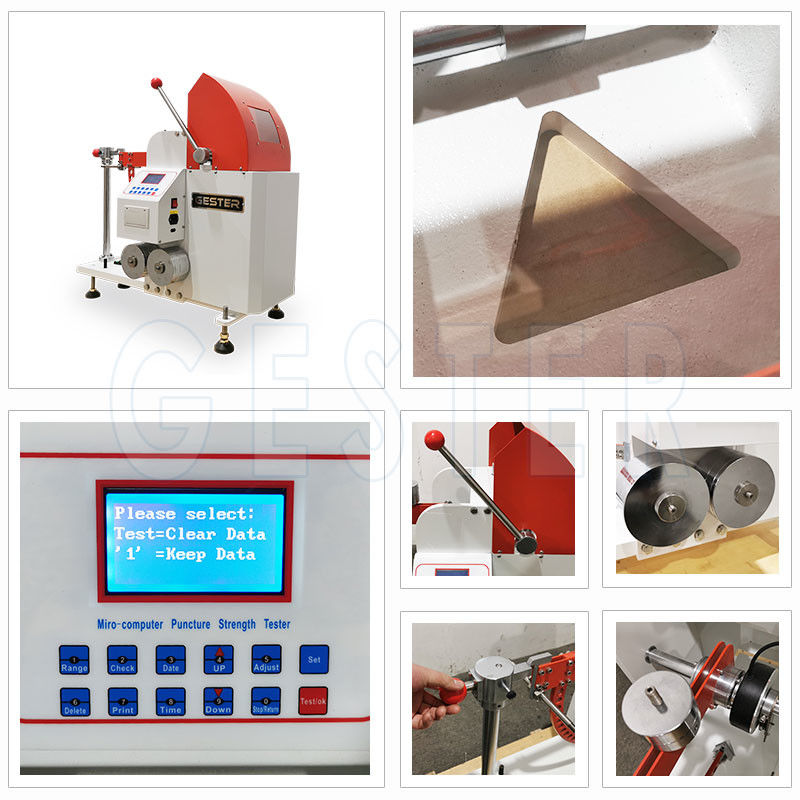

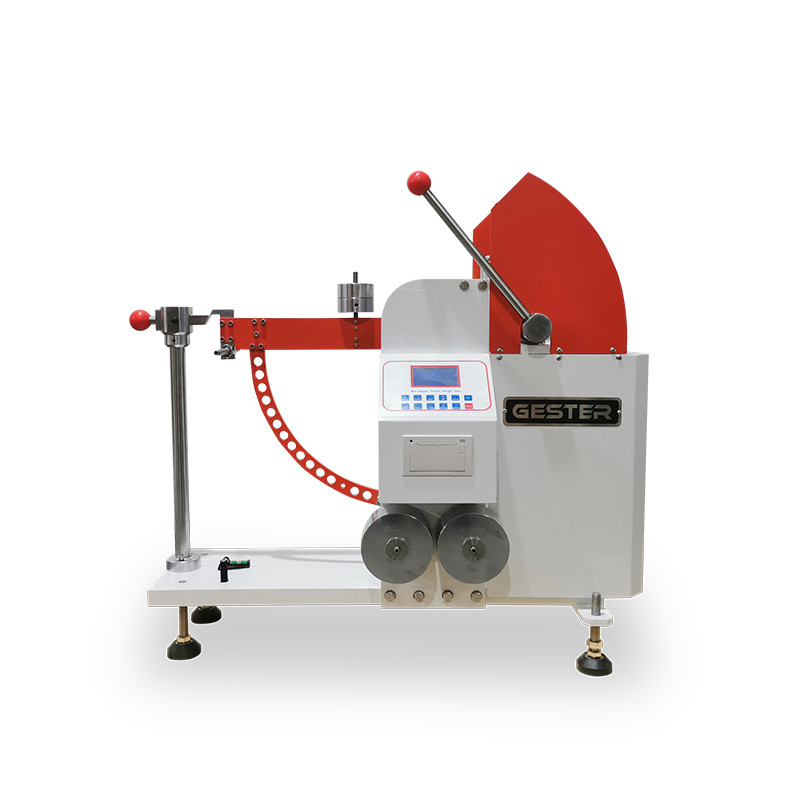

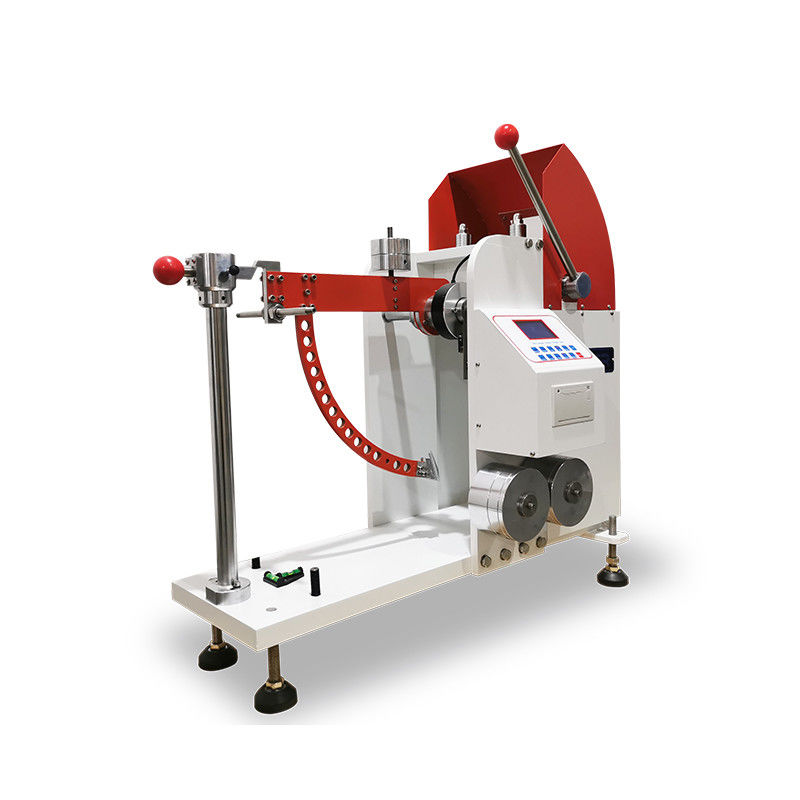

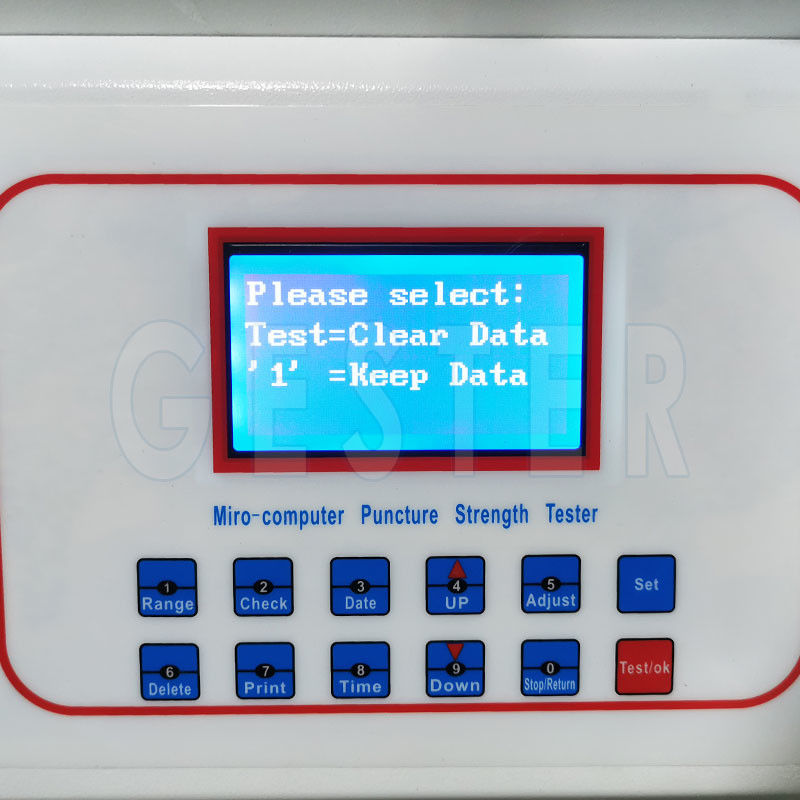

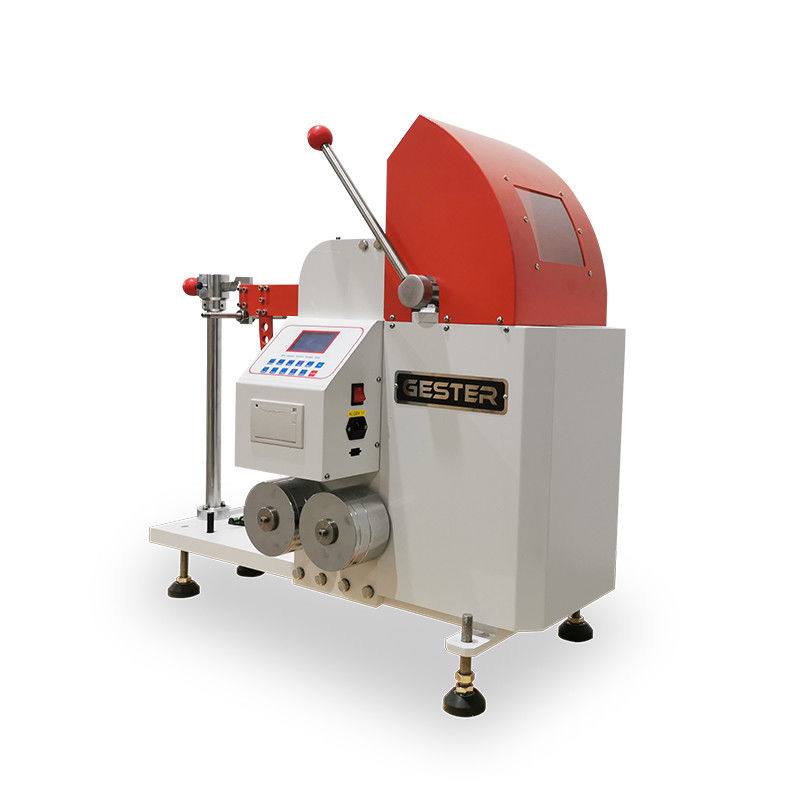

Product Image
