| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-I06 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Power Battery Squeeze Acupuncture Extrusion Testin | The Pressure: | 13kn |
|---|---|---|---|
| Accuracy Of The Force Display: | 0.1n | Distance Of Compression: | 300mm |
| Price: | Factory Price | Use Power: | 380V, 50~60Hz, |
| Dimension (Mainframe): | 66*53*168cm | Dimension (Controller): | 55*35*100cm |
| Warranty: | 1 Year | Key Words: | Battery Squeeze Acupuncture Testing Machine |
| High Light: | 13kn battery tester machine,squeeze acupuncture extrusion battery tester machine,squeeze acupuncture extrusion battery tester |
||

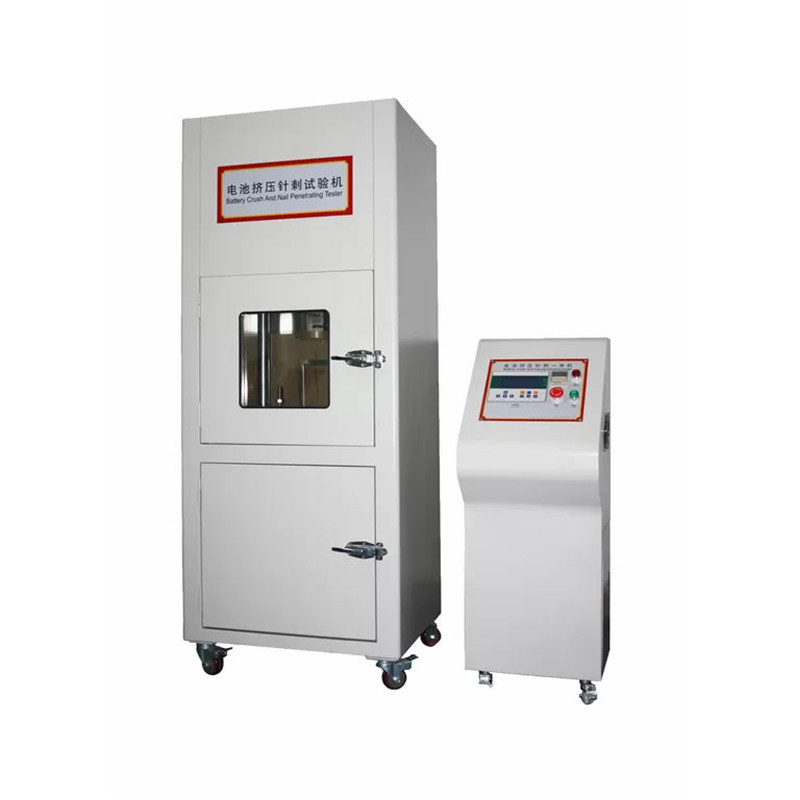

Power Battery Squeeze Acupuncture Extrusion Testing Machine is suitable for simulating various types of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and sharp objects penetrate the situation, the test results are used to evaluate the battery safety performance.
| Model | GT-I06 |
| Power transmission method |
Hydraulic Servo A) Two plates grip the battery B) When the tested sample is gripped by the two plates, it can begin to crush. |
| The pressure | 13kN |
| Accuracy of the force display | 0.1N |
| Resolution | 1/10000 |
| Compression Space | W300×D300×H300mm(or custom with the battery size) |
| Distance of Compression | 300mm |
| Test speed | 0~100mm/s |
| Holding time | 1s~9999h( arbitrary set) |
| Cable port | Diameter 50mm on the left side of the chamber |
| Interior material | A3 steel paint drying |
| Exterior material | SUS#304 |
| Power | 380V, 50~60HZ, |
| Dimension (mainframe) | 66×53×168cm |
| Dimension (controller) | 55×35×100cm |
