Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-KB35 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Warranty: | 12 Months | Product Name: | Outsole Belt Flexing Tester |
---|---|---|---|
Application: | Footwear Industry | Color: | Black |
Quality: | High,good | Advantage: | Factory Direct Sale, Fast Delivery |
High Light: | SATRA TM 133 Outsole Belt Flexing Tester,Speed 90CPM Outsole Belt Flexing Tester,SATRA TM 133 Footwear Flexing Tester |

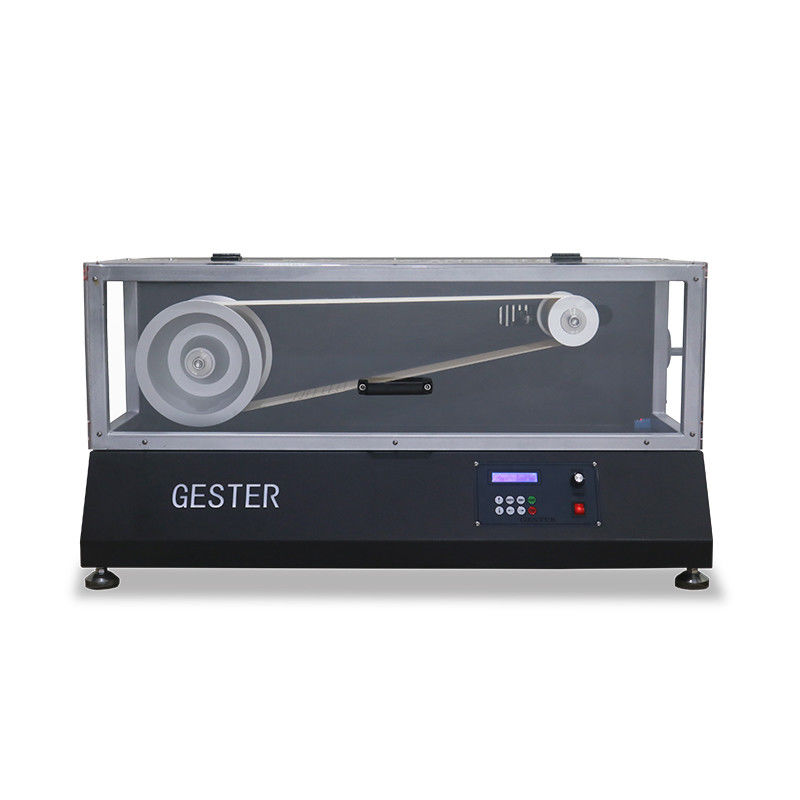

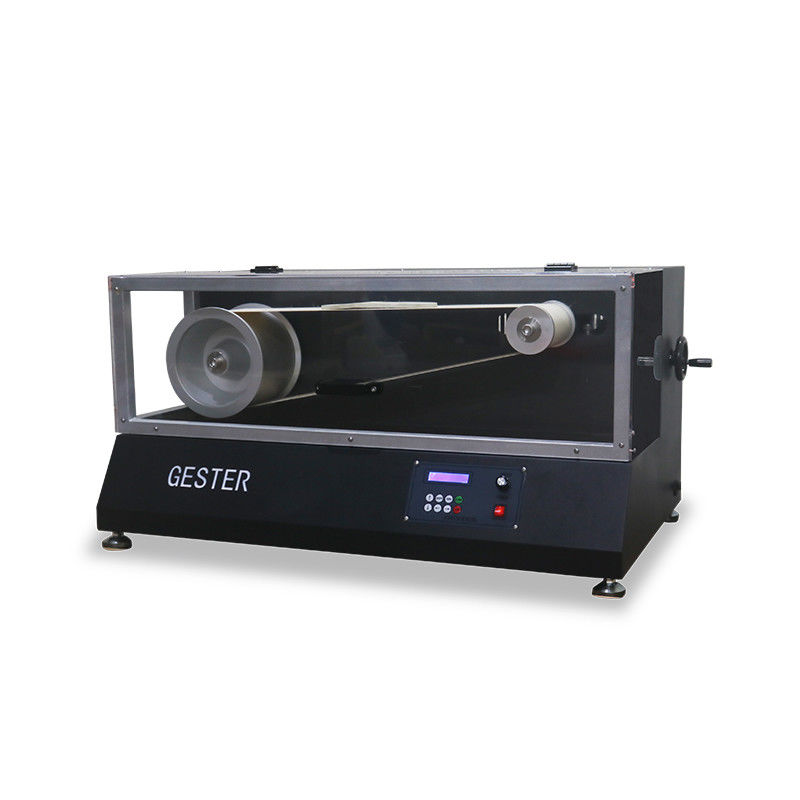

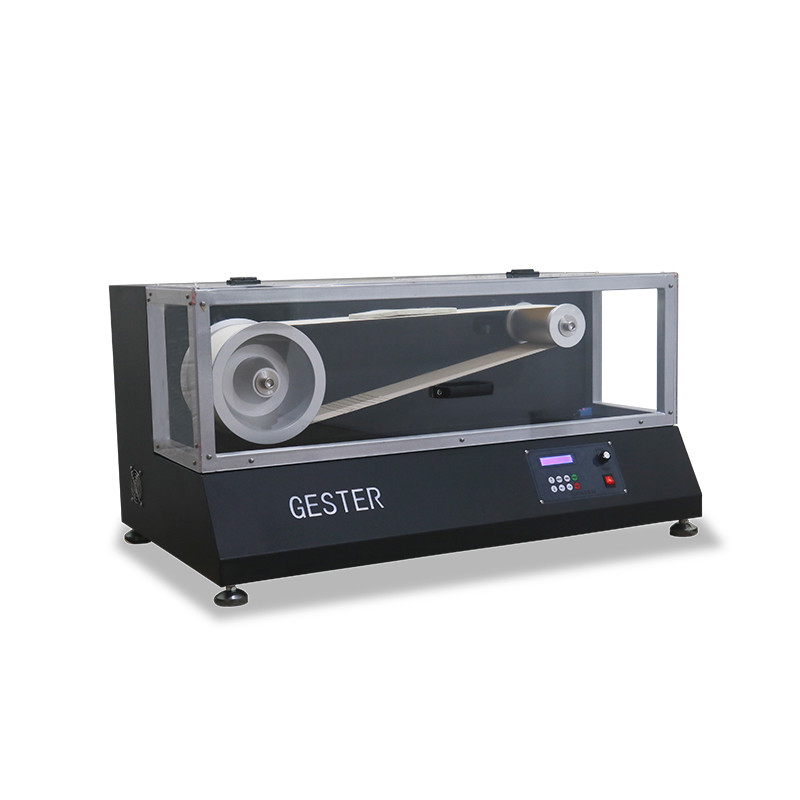

SATRA TM 133 Footwear Outsole Belt Flexing Tester
Application: This outsole belt flexing tester is to determine the resistance of a component or material to crack initiation and growth due to repeated flexing. Standards: SATRA TM 133 |
It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.
Model | GT-KB35 |
Canvas belt size | Length :1930±50mm Width :140±5mm |
Driven roller | Diameter: 225 ± 5 mm |
Width: 170 ± 20 mm | |
Free roller 1 for typical sole units test | Centre Diameter : 90.0 ± 0.5 mm |
Ends Diameter : 87 ± 1 mm | |
Width: 170 ± 20 mm | |
Free roller 2 for very flexible sole units test | Centre Diameter : 60.0 ± 0.5 mm |
Ends Diameter : 57 ± 1 mm | |
Width: 170 ± 20 mm | |
Free roller 3 for very rigid sole units | Centre Diameter : 120.0 ± 0.5 mm |
Ends Diameter : 117 ± 1 mm | |
Width: 170 ± 20 mm | |
Belt rotate speed | 90 ± 8 CPM |
Sampling | MAX.6 pcs |
Counter | LCD 0~999,999 |
Power supply | 1∮AC 220V 50/60HZ 3A |
Dimensions(W×D×H) | 131 cm x 82cm x 69cm |
Weight(Approx) | 170kg |
Standards | SATRA TM 133 |
Accessories:
Standard accessories | 1pc | Spanner |
1pc | Canvas belt | |
3pcs | Free roller | |
1pc | Drive roller | |
1pc | Power line | |
Option accessories | Optional | Canvas belt (consumptive material) |
