Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-I07 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |

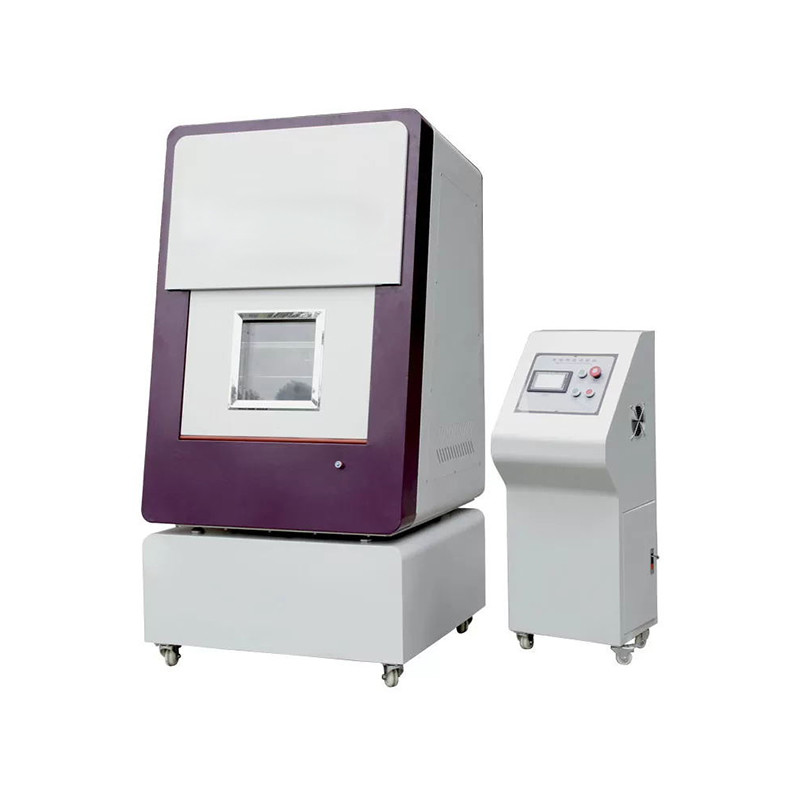

| Product Name: | Battery Flame Resistanc Safety Fire Burning Testin | Standards: | Sj/T11169-1998(Eqv UL 1642:1995) |
|---|---|---|---|
| Control Mode: | PLC Human Touch Interface | Test Hole Diameter: | 102mm |
| Ection Warehouse Volume: | 750 * 750 * 1000mm | Controller Volume: | 200 * 150 * 1000mm |
| Use Power: | 220V, 50 / 60Hz | Remote Wire-Controlled Distance: | No Barrier, 10 Meters |
| Warranty: | 1 Year | Equipment Power: | 0.75kw |
| High Light: | 0.75kw battery resistance tester,0.75kw battery flame resistance tester,PLC battery resistance tester |
||
| Model | GT-I07 |
| Control mode | PLC human touch interface |
| Burner | Bunsen burner, nozzle diameter of 9.5mm long about 100 mm |
| Flame application time | 0 ~ 999.9 seconds ± 0.1 seconds |
| Test hole diameter | 102mm |
| Test mesh sieve | A stainless steel wire with a diameter of 0.43 mm (0.017 inch) was woven into a mesh containing 20 mesh screens. |
| Ignition controller | Remote control ignition, test process automatic control Remote wire-controlled distance: no barrier, 10 meters |
| Remote wire-controlled distance | No barrier, 10 meters |
| Flame on the net screen height | 38mm |
| Test octagonal hood width | The distance between each pair of 24 "(610mm), octagonal, while eight for the activities of easy to replace and disassemble |
| Test octagonal height | 12 "(305mm) |
| Octagonal cover Material | Aluminum mesh, made of aluminum wire with a diameter of 0.010inch (0.25mm) into a mesh containing 16- 18 mesh per inch |
| Test section | Stainless steel, one side of the 5mm thick tempered glass, can be witnessed test state, while the top of the protective box with exhaust fan, and set aside external exhaust pipe interface. |
| Test protection warehouse volume | 750 * 750 * 1000mm |
| Controller volume | 200 * 150 * 1000mm |
| Combustion gas | Methane |
| Use power | 220V, 50 / 60Hz, |
| Equipment power | 0.75Kw |
