| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-RA06 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Type: | Medical Mask Tester | Standards: | EN 149, IS 9473, EN 14325 |
|---|---|---|---|
| Keyword: | Mask Flammability Tester | Testing: | Mask Combustion Tester |
| Color: | Silver | Weight: | 100kg |
| High Light: | GB 19083 Mask Test Machine,Flammability EN 149 Mask Test Machine,GB 19083 Flammability Test Equipment |
||
|
Application: Mask Flame Retardant Tester is a special test instrument for flame retardant performance of medical masks, to test the flammability performance of medical mask after contacting with flame at a certain linear speed.
Standards: GB 19083, YY 0469, GB 2626, EN 149, IS 9473, EN 14325 |

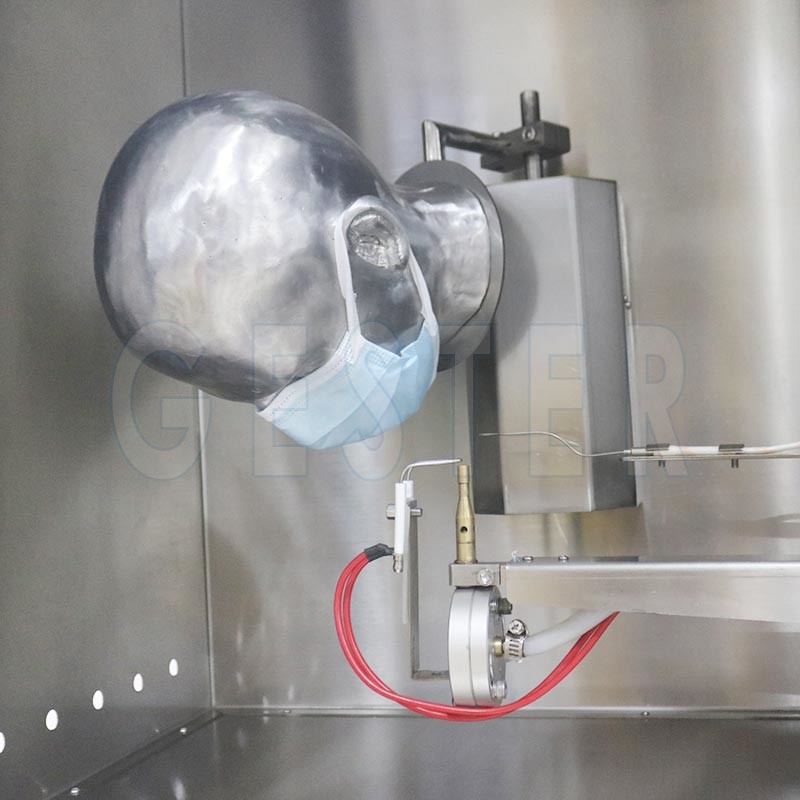

1. The mask fixture is a metal human head mold, which can simulate the actual use situation of the mask.

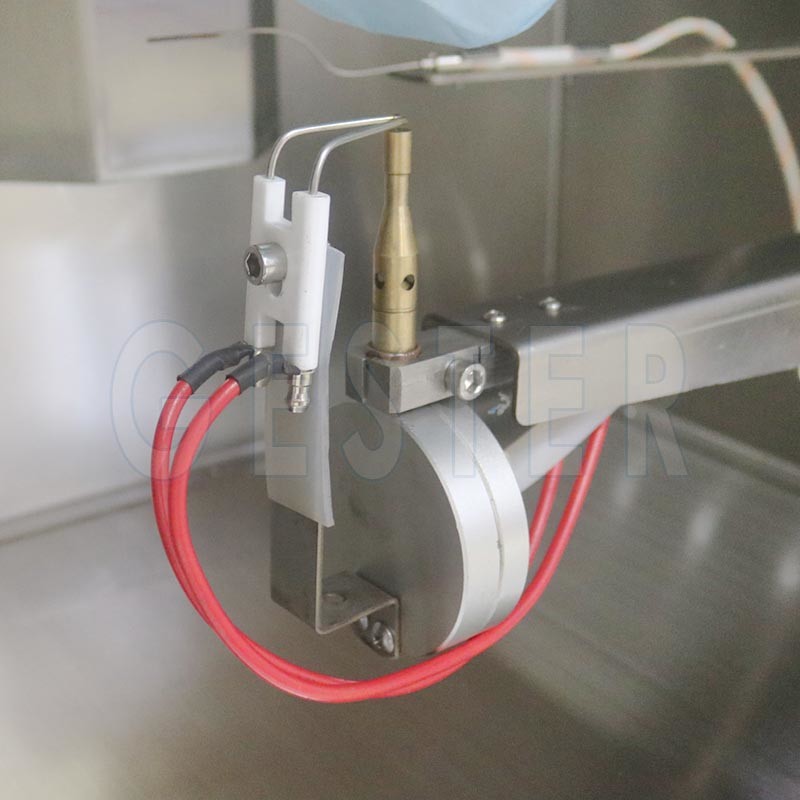

2. The burner is equipped with a combustible gas interface, such as propane (liquefied gas).
3. Burner height is adjustable.
4. Burner could be timing and positioning automatic.
5. Burning time and flame retardant time are automatically recorded and displayed digitally
6. Mask Flame Retardant Tester is equipped with flame temperature measuring probe and flame temperature display.
|
Model |
GT-RA06 |
|
Linear speed of the tip of nose on head model |
(60 ± 5) mm / s |
|
Flame height |
Initial height 40±4mm(adjustable) |
|
Diameter of flame temperature measuring probe |
1.5mm |
|
The temperature of the flame |
(800 ± 50) ℃ at a height of (20 ± 2) mm from the top of the burner |
|
Distance between top of the burner and lowest point of the mask |
(20 ± 2) mm |
|
Adjustment range of burner height |
30mm |
|
Thickness of the metal mold |
2 ~ 3mm, flame resistant. |
|
Timer of burning time and smoldering time |
0-99.99 seconds, accuracy: ± 0.1 seconds |
|
Gas |
Propane gas |
|
Weight |
100kg |
|
Power supply |
AC220V, 50Hz, 50W |
