PLC Touch Screen ISTA 5KW Drop Test For Packaging

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	GT-LC06

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets/month

Get Best Price Contact Now

Power:	220V	Usage:	Packaging Test
Power Supply:	220V 50Hz	Warranty:	12 Months
Product Name:	Zero Height Drop Tester	Testing Before Delivery:	Yes
High Light:	5KW Drop Test For Packaging , ISTA Drop Test For Packaging , 5KW Drop Test Machine

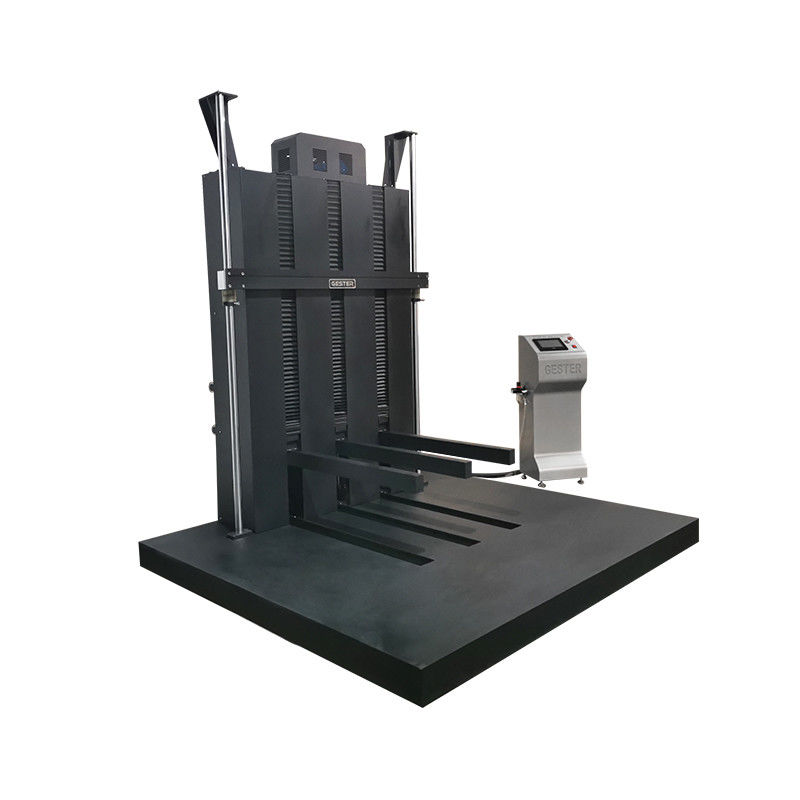

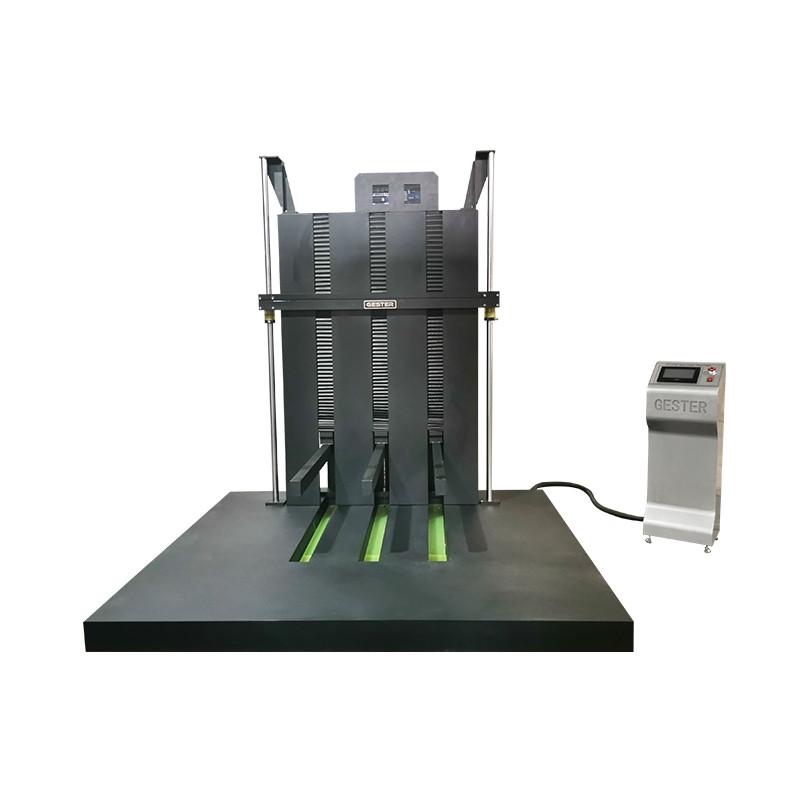

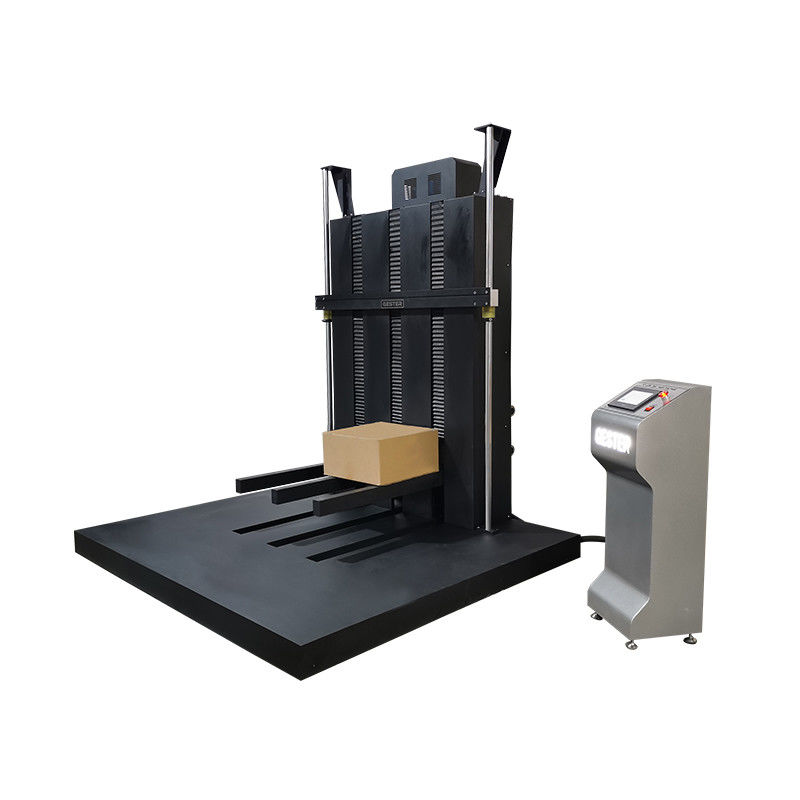

ISTA Packaging Test Zero Height Drop Tester

Product Introduction

Application:

The drop tester is mainly used to evaluate the influence of the package in the actual transportation, the loading and unloading process, and to evaluate the impact strength and the rationality of packaging design.

Standards:

ISTA

Key Specifications

Model	GT-LC06
Control mode	PLC touch screen
Maximum test load	200kg
Maximum specimen size	2000×1000×1000(mm, L×W×H)
Test height	0~1200mm adjustable
Test aspects	Edge, Angle, Surface
Drive	Motor drive
Protection device	Induction type protection device
Material of Impact plate	45# steel, solid steel plate
Reading	Digital
Bracket structure	45# steel
Transmission	Imported linear slider and copper sleeve, 45# steel
Accelerating device	Mechanical(Ensure that the speed of the bracket falls faster than the drop rate of the test product)
Drop mode	Electromagnetic and pneumatic integrated
Power supply	220V, 50HZ, 5KW
Weight	About 1800KG
Dimension	2200×1500×2000mm
