Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-KA02 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Usage: | Dynamic Waterproof Performance Of Finished Shoes | Warranty: | 1 Year |
|---|---|---|---|

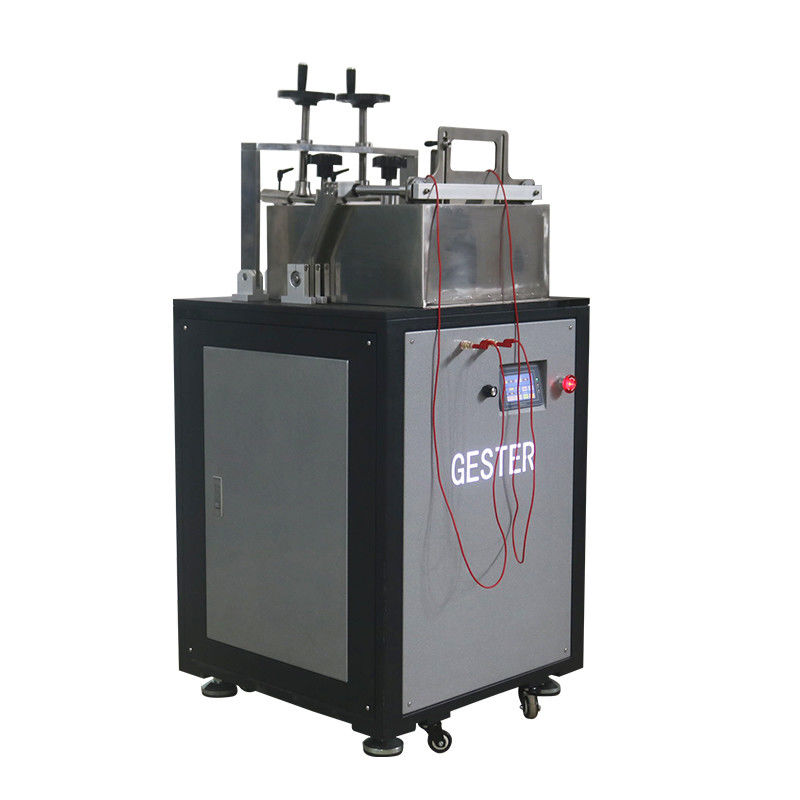

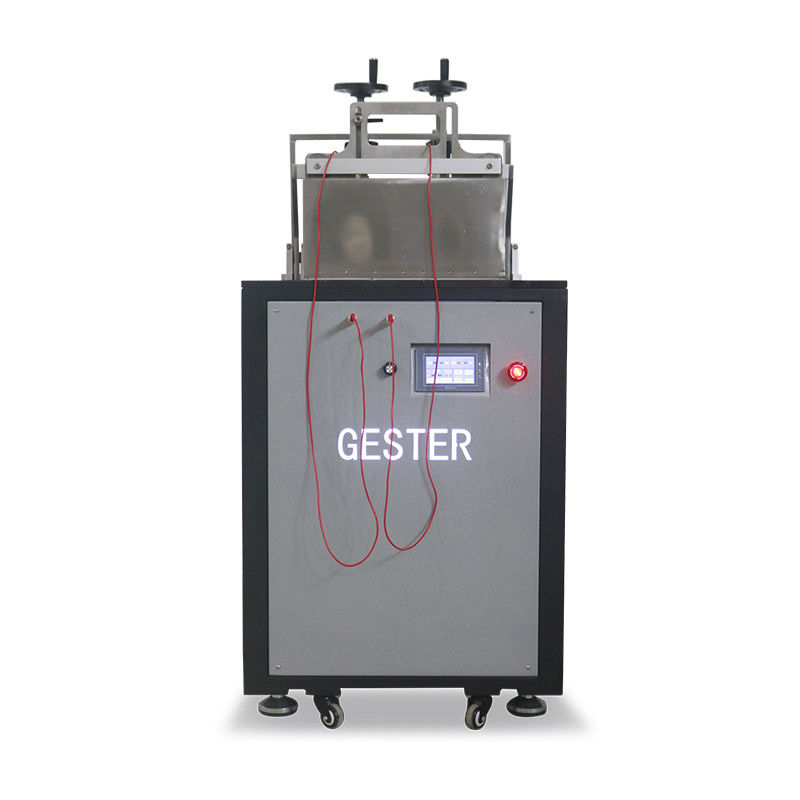

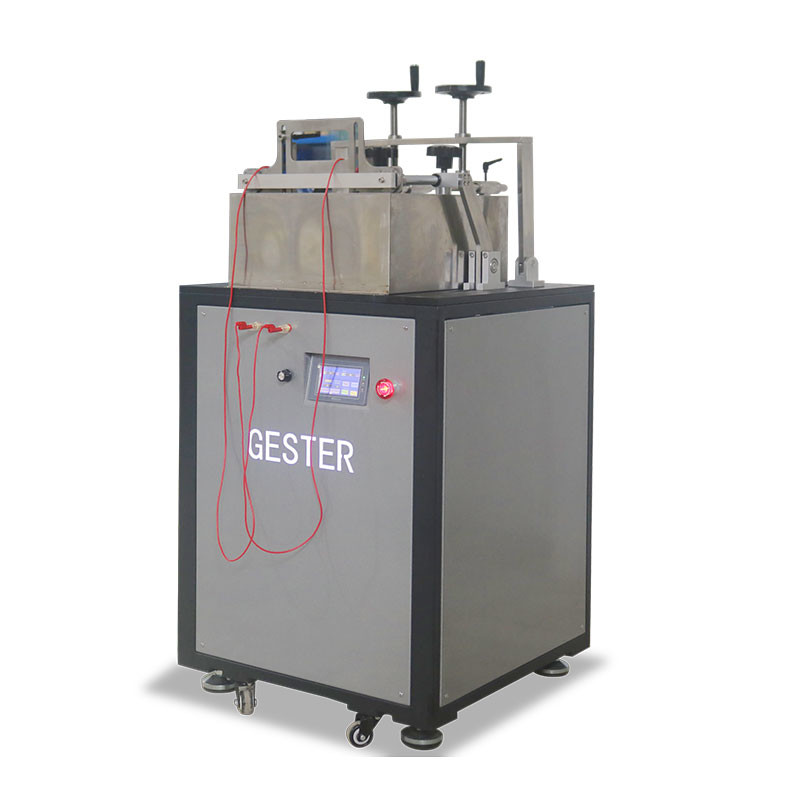

| Product Name: | Footwear Water Penetration & Flexing Tester | Application: | Footwear Industry |
| Quality: | High,good | Advantage: | Factory Direct Sale, Fast Delivery |
| High Light: | SATRA TM77 Footwear Testing Machine,Water Permeability Footwear Testing Machine,SATRA TM77 Water Permeability Test Apparatus |
||
|
Application:
The Footwear Water Penetration & Flexing Tester can be used to test the dynamic waterproof performance of different kinds of finished shoes. |
Feature:

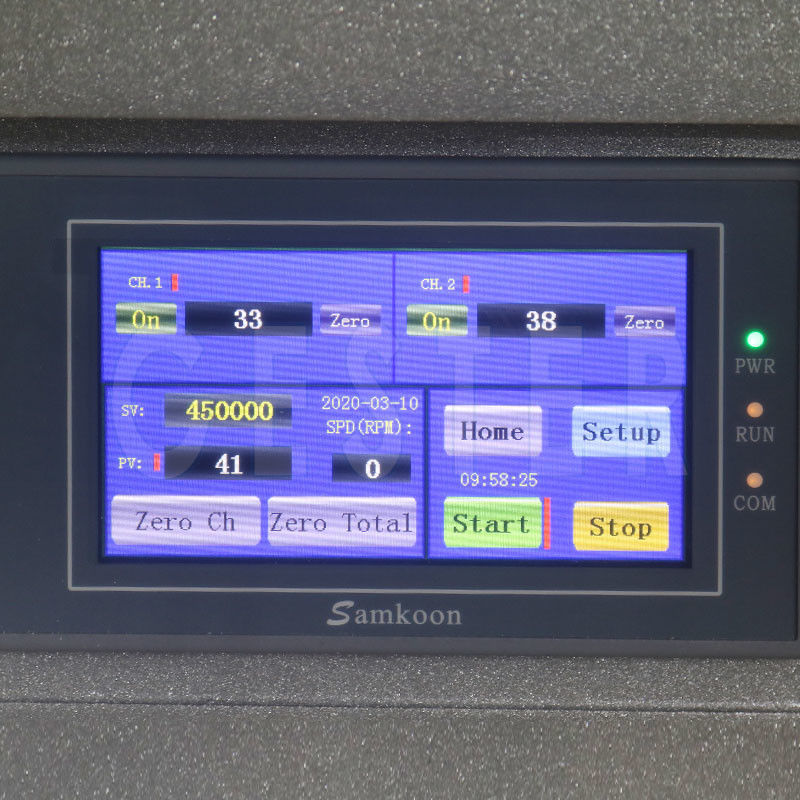

1. PLC touch screen, easy to operate.
2. Equip with two test positions, separately record test conditions.
3. E-stop switch, to avoid any emergency.
Principle:

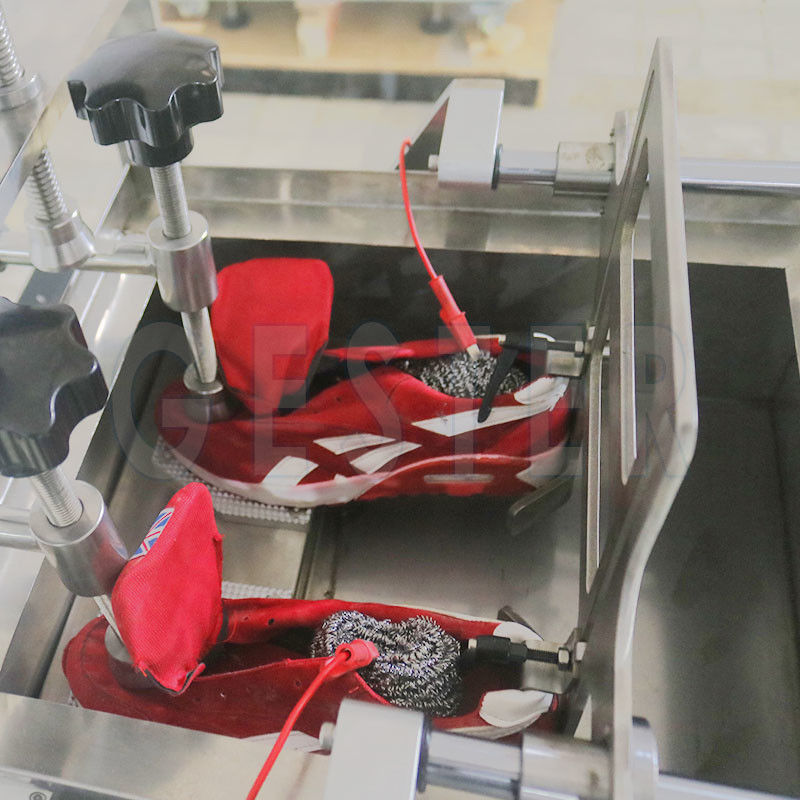

Install finished shoes on test device, and fill the tank with a certain deep of water to touch with shoes. It push forward the forefoot bending by certain angle and frequency by simulating people walking in water with shoes, to test bending times required for water penetrate from shoes outside to inside or determine the penetration situation after certain bending times.
It can test a pair of shoes simultaneously and equip with one total setting counter (control total test times), and two separated small counters (display separately bending times of single sample). If water penetrate into shoes, small counter stops and records the bending times when it stops. Sensing Method is that determine whether.
|
Model |
GT-KA02-1 |
|
Test sample |
2pcs (Respectively sensing) |
|
Bending angle |
0～50° adjustable |
|
Test speed |
0～150cpm adjustable |
|
Counter |
PLC touch screen, 0~999,999 |
|
Power |
1∮AC 220V 50/60HZ 3A |
|
Dimension (W×D×H) |
800×596×1220mm |
|
Weight |
150kg |
|
Standards |
SATRA TM77 |
