Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-MC35H-2 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Power: | Electronic | Warranty: | 1 Year |
---|---|---|---|
Product Name: | Glow Wire Tester | Power Supply: | 220V 50Hz |
Technology: | Professional | Gester: | SGS Audited Supplier,TUV |
Highlight: | IEC60695 Toys Testing Equipment,PLC Control Toys Testing Equipment,IEC60695 Glow Wire Tester |
Application:

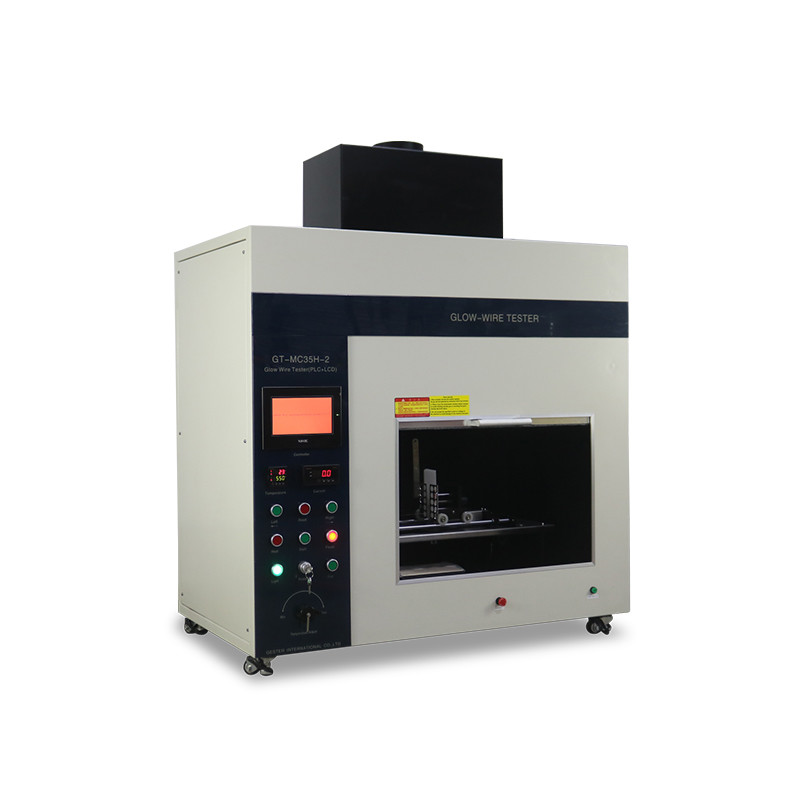

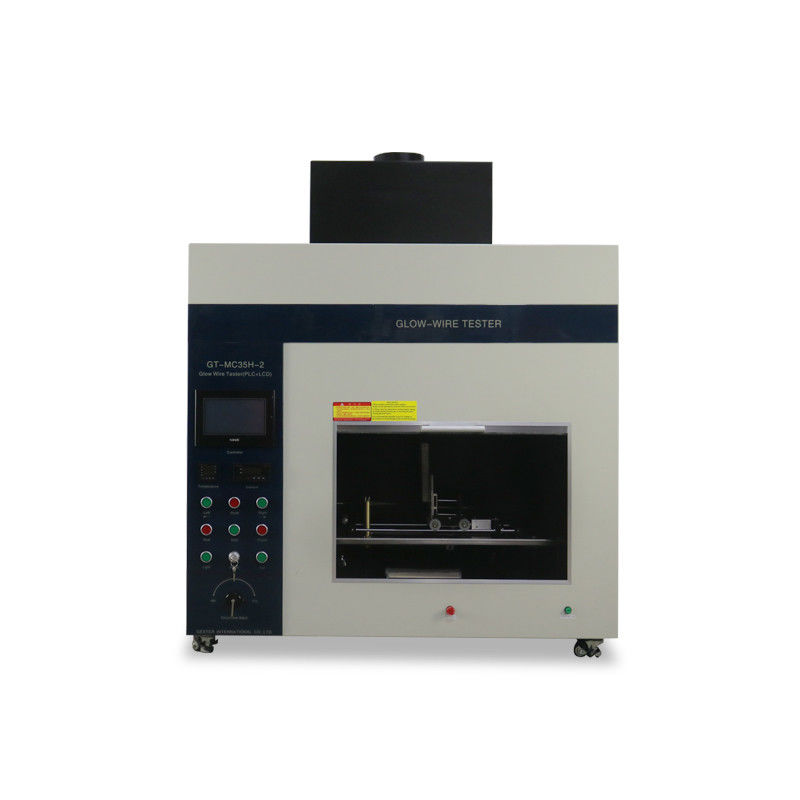

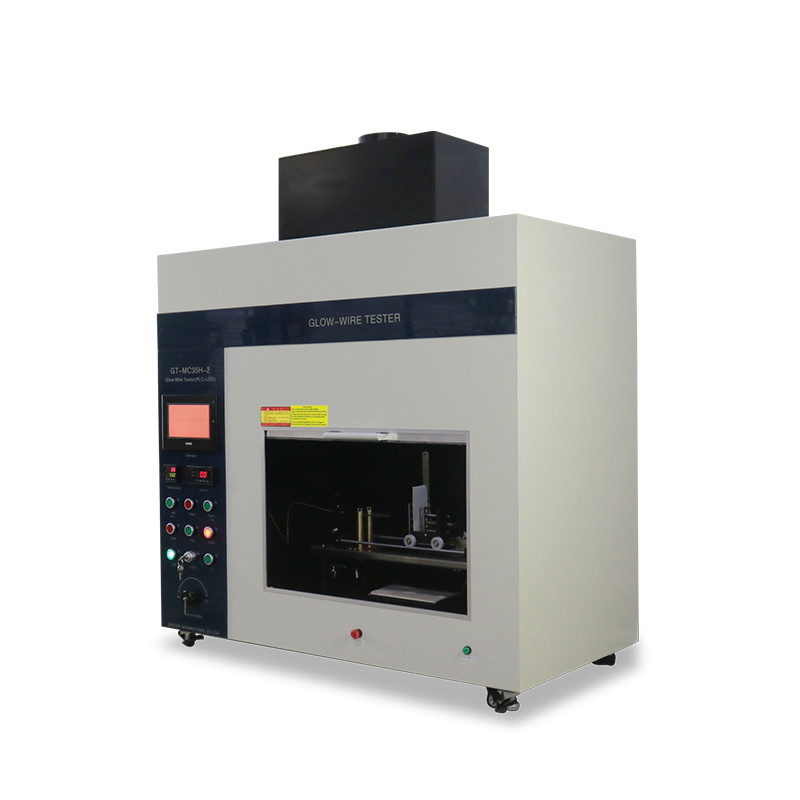

Glow wire tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument.
Glow Wire Test Standards:
IEC60695, IEC 62477-1, GB5169, etc
1.Glow wire testing equipment 7 inch touch-screen system+digital module
2.PLC+ stepper motor position control system
3.USB data output of test report
4.Full import control components
5.Special high-quality stainless steel clamps
6.One-button type timing device.
7.Advanced temperature control and measurement system
8.Tempered glass window
Model |
GT-MC35H-2 |
Inside dimension |
1120×600×1020mm ( W×D×H) |
Internal volume |
≧0.5 cubic |
Controller |
7 inch color programmable controller |
Temperature |
Digital transmission module |
Current |
Digital transmission module |
Glow wire |
Φ4mm±0.2 Ni/Cr(80/20) |
Thermocouple |
Φ1mm K type |
Heating temperature |
50 degree ~1050 degree |
Sample pressure |
1.0N+/-0.1N |
Sample move speed |
10mm /s~25mm /s(adjusted by controller) |
Apply temperature time |
0.01s~99.99s(can be set) |
