Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | HEY11 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 set/month |
Key Word: | Plastic Thermoforming Machines For Cup Production | Driven System: | Hydraulic+Servo |
---|---|---|---|
Color: | Grey | Certificate: | CE, ISO |
Applicable Material: | PP,HIPS,PE,PET,Starch-based Material | Dimension: | 4700x1600x3100mm |
Condition: | New | ||
High Light: | PE Plastic Thermoforming Machine,PVC Plastic Thermoforming Machine,Multifunctional Plastic Cup Making Machine |
Application
Hydraulic Cup Making Machine is mainly for the production of variety plastic containers with formed depth ≤180mm ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.
Features
Technical Parameter
(Model) | HEY11A | HEY11B | HEY11C |
Forming Area | 730x420 mm | 750*520 mm | 850*560 mm |
Sheet width | 600-730 mm | 680-750 mm | 780-850 mm |
Max.forming depth | 220 mm | 180 mm | 180 mm |
Heating rated power | 130kw | 140kw | 150kw |
Machine total weight | 6T | 7T | 7T |
Motor power | 11kw | 15kw | 15kw |
Applicable raw material | PP,PS,PET,HIPS,PE,PLA | ||
Sheet thickness | 3,0 mm | ||
Dimension | 4700x1600x3100mm | ||
Work frequency | <35 | ||
Motor power | 15kw | ||
Power supply | 380V/50HZ | ||
Pressure supply | 0.8 | ||
Max.air consumption | 3.8 | ||
Water consumption | 20 | ||
Control system | PLC |

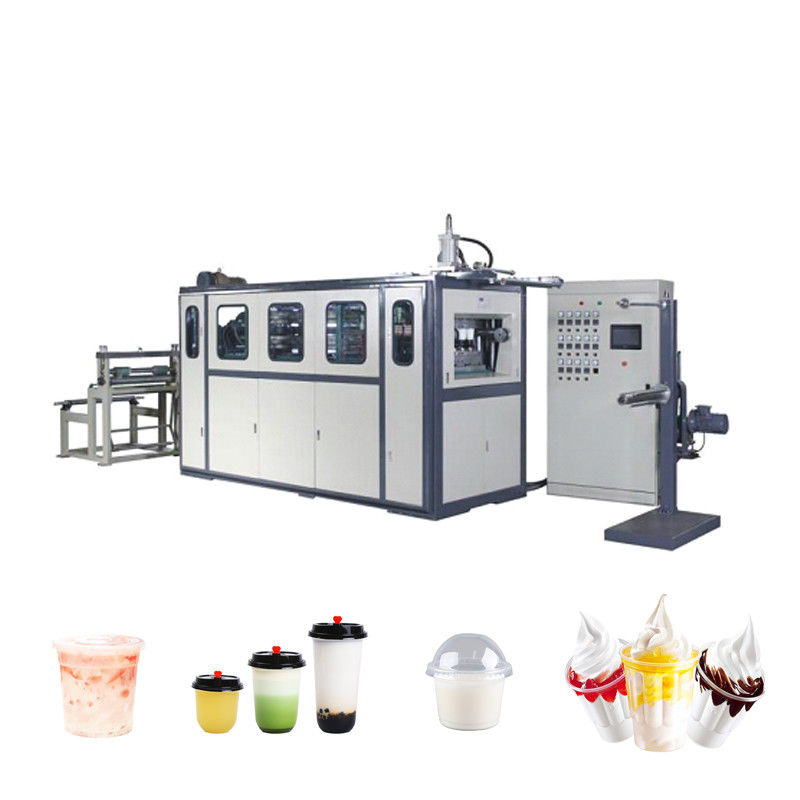

Product Image
