Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-N29C |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Certificate: | CE ISO | Feature: | Factory Price |
|---|---|---|---|
| Product Name: | Paper Bursting Strength Tester | Model: | GT-N29C |
| Weight: | 45 Kg | Application: | Carton, Paperboard, Corrugated Board |
| Warranty: | 1 Year | Control: | Electronic |
| Printer: | Thermal Printer | Testing Accuracy: | 0.01kpa |
| High Light: | Cardboard Bursting Strength Tester Machine,Microcomputer Control Bursting Strength Tester Machine,Microcomputer Control Paper Bursting Strength Tester |
||
Cardboard Bursting Strength Tester Price Automatic Bursting Strength Tester Of Paper
| Application |
Bursting Strength Paper Testing Machine was made according to Mullen Method. It is available to test a variety of paper. It also can be used for non-paper sheet materials' bursting, such as silk and cotton.
It has abundant functions, such as parameter testing, transformation, adjusting, display, storing and printing. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.
Perfect for paper, kraft paper, white cardboard, gray broad paper, single ply board paper, corrugating medium, freewood paper, toilet paper, aluminum foil, copper foil, cigarette case, and graphic carton.
| Key Specification |
| Model | GT-N29D |
| Testing Range | 5-1400kpa |
| Testing Accuracy | 0.01kpa |
| Accuracy Rating | ≤0.5% |
| Deformation Error | ≤1mm |
| Oil Feeding Speed | 95±5ml/min |
| Dia. of Upper Plate | 30.5±0.1mm |
| Dia. of Lower Plate | 33.1±0.1mm |
| Intensity of Pressure (Rubber Diaphragm) | 30±5kpa, when it at (9±0.2)mm |
| Holding Force | 0-1200kpa (adjustable) |
| Units | kpa, kg/cm2, lb/in2 |
| Printer | Thermal printer |
| Dimension | 410×410×620mm |
| Weight | 45kg |

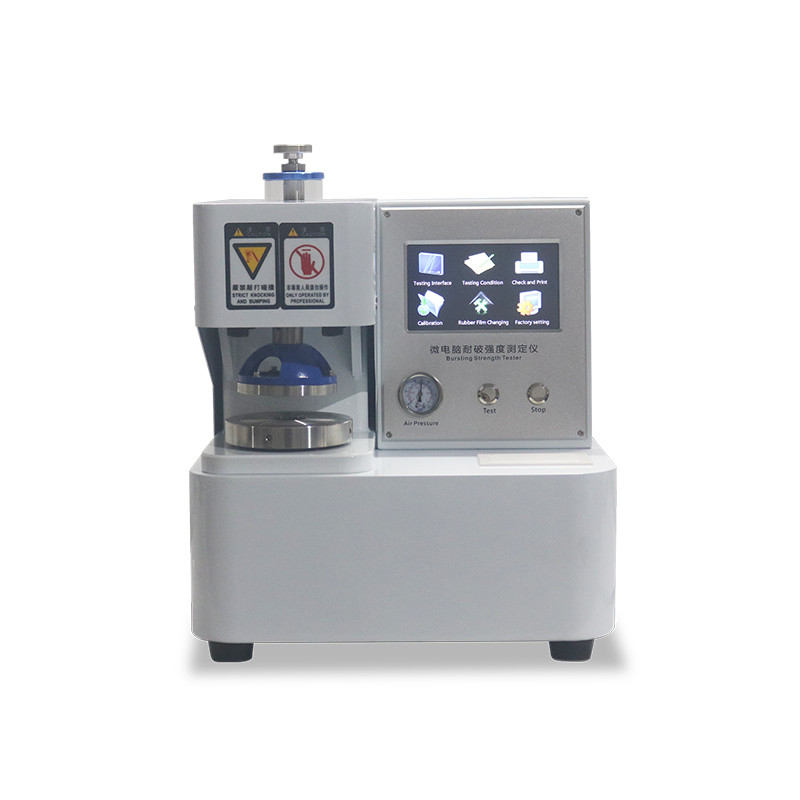

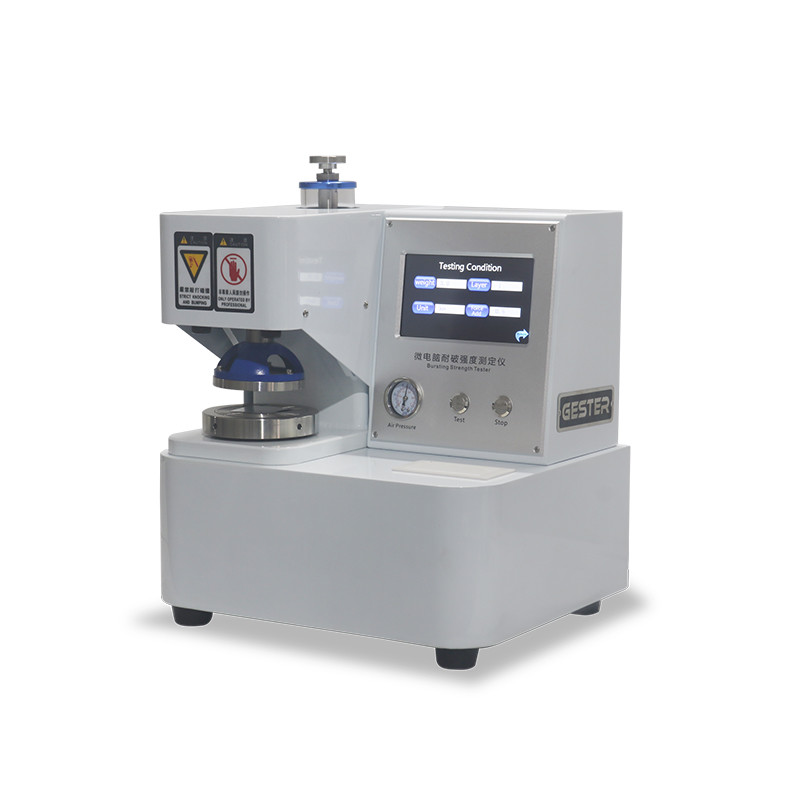

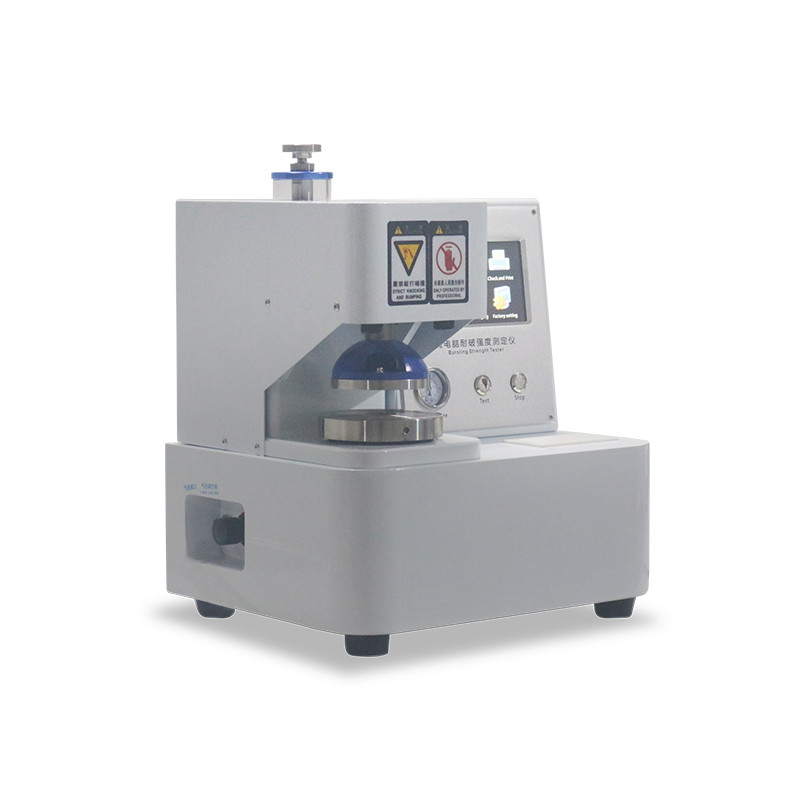

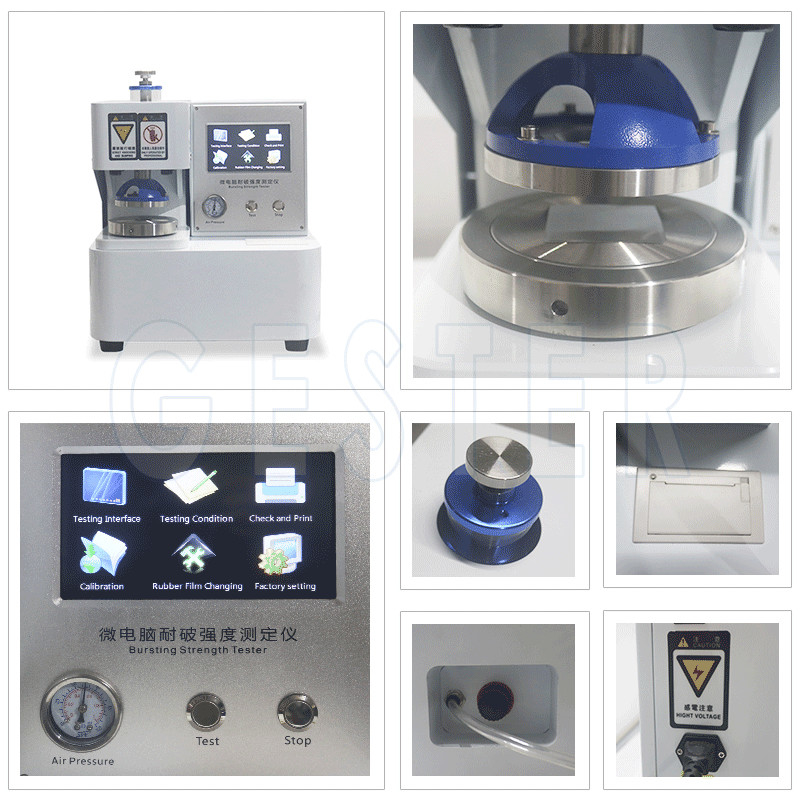

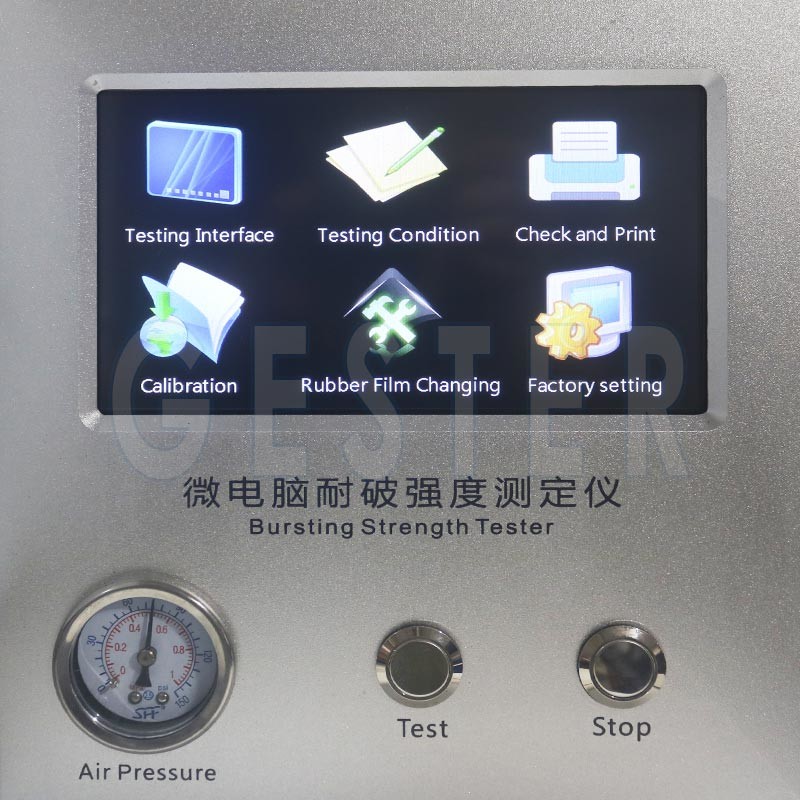

| Product Image |
