Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-MC35H-1 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Usage: | Flaming Test Equipment | Warranty: | 1 Year |
|---|---|---|---|
| Product Name: | Glow Wire Test Apparatus | Technology: | Professional |
| Gester: | SGS Audited Supplier,TUV | Service: | Installation And Training Service |
| High Light: | IEC60695 Glow Wire Test Apparatus,1000 Degree Glow Wire Test Apparatus,IEC60695 Glow wire tester |
||
|

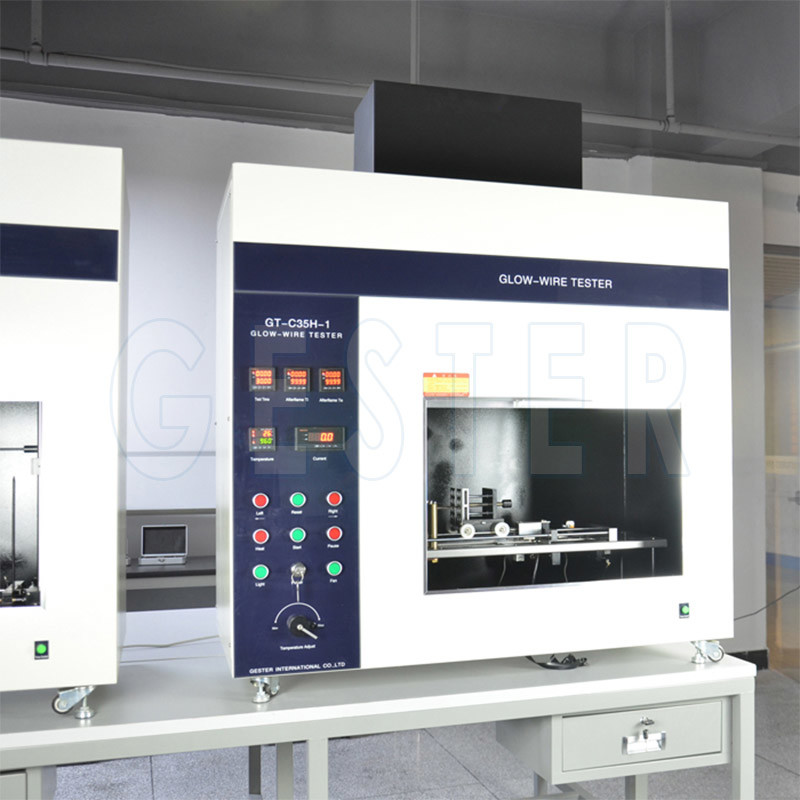

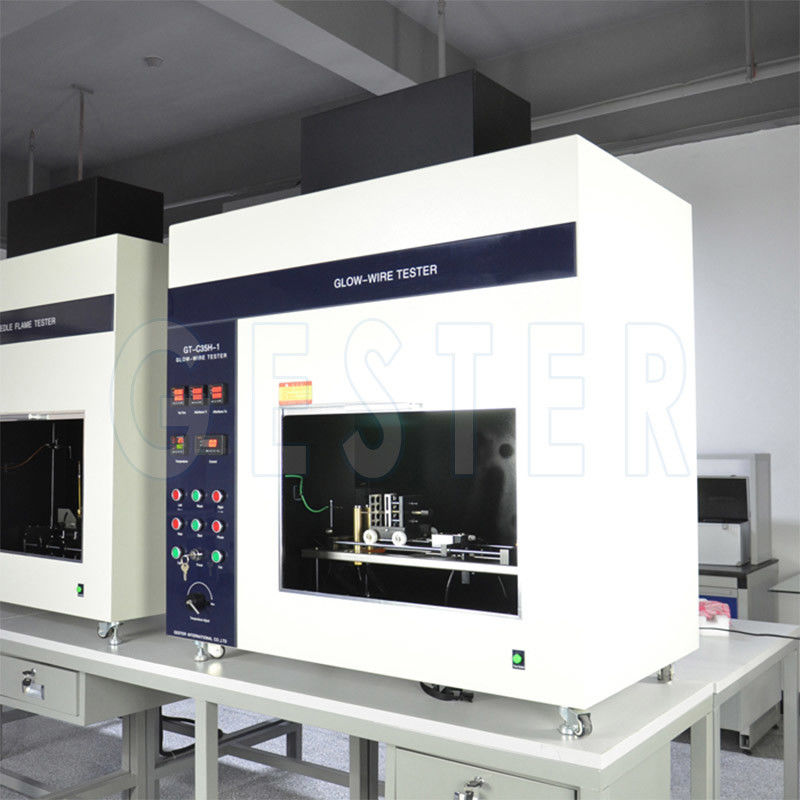

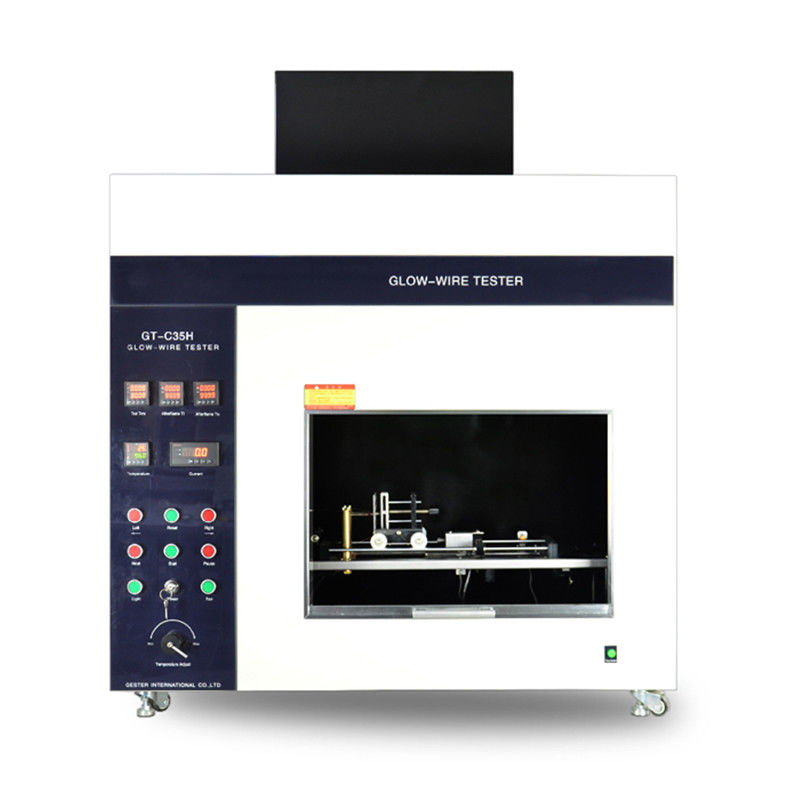

Application Glow wire tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument. New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment. The Glow Wire Tester is apply to the latest test standards IEC60695,GB5169, etc.
Glow wire test Standards:
IEC60695 ; GB5169 |
|
|
Outside dimension |
1120×600×1020mm ( L×W×H) |
|
Glow wire |
Φ4mm Ni/Cr(80/20) |
|
Thermocouple |
Φ1mm K type |
|
Glow temperature |
150degree~1000 degree (adjustable) |
|
Sample pressure |
1.0N±0.1N |
|
Sample move speed |
10mm /s~25mm /s(adjustable) |
|
Apply temperature time |
0.01s～99.99s(adjustable) |
|
Start burning time |
0.01s~59m59.99s |
|
Continue burning time |
0.01s~59m59.99s |
|
Power supply |
Single-phase AC 220 V 50/60Hz |
