Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-N09 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Certificate: | ISO 9001, UKAS, CE | Applies: | RCT,ECT,FCT,PAT,CMT |
|---|---|---|---|
| Standards: | ISO 3035, ISO 3073, ISO 7263, TAPPI-T472 , JIS-P8126, TAPPI 811 | Weight: | 60KG |
| Motor: | Servo Control Adopted | Product Name: | RCT Ring Crush Edge Compression Tester For Corrugated Board |
| Warranty: | 1 Year | Power Supply: | 220V 50Hz |
| Keyword: | Edge Crush Tester | Feature: | Factory Price |
| High Light: | ISO ECT Compression Tester,RCT Compression Tester,Corrugated Board ECT Testing Machine |
||

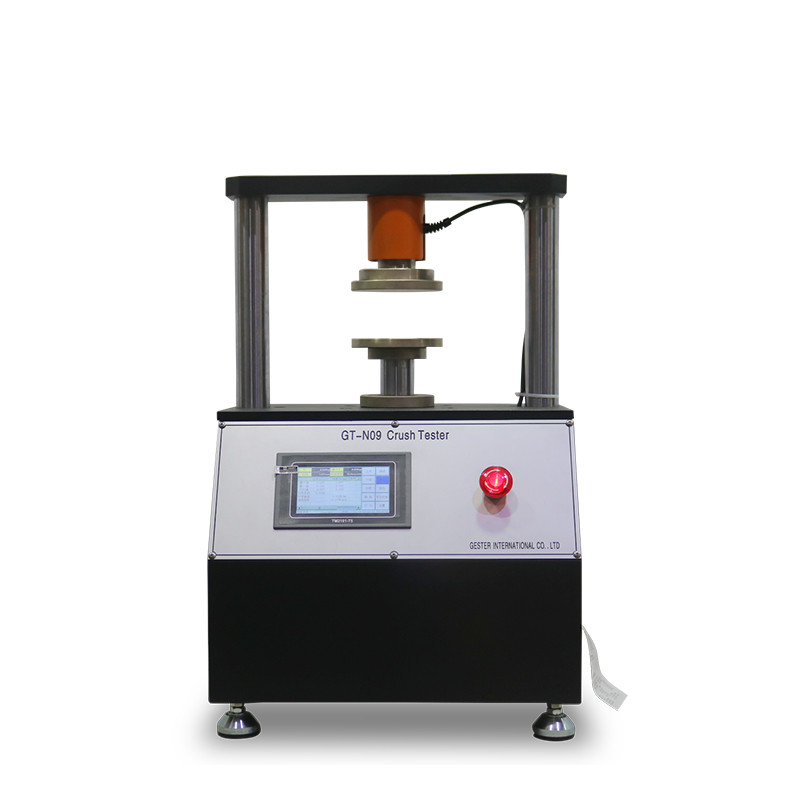

RCT Ring Crush Edge Compression Tester For Corrugated Board
Application
The GT-N09 is well-designed using modern mechanical design theory and human engineering design criteria and micro-process.
It is upper pressure plate fixed type, which has high precision and applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT) Option Testing methods.
Feature
1. High speed return after finishing test.
2. Imported step motor with servo control adopted.
3. The test result can be measured, statistical and printed automatically and the data can be saved.
4. Blue color LCD display, which can be display the crush time and loading force real time ,GT-N09 type can display crush graph real time.
5. Thermal printer, high speed and no noise .
6. Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.
Standards
ISO 3035, ISO 3037, ISO 7263, TAPPI-T472, TAPPI T811, TAPPI T822, TAPPI T838, JIS-P8126, GB/T 2679.8,
GB/T 6546, GB/T 6548 ,GB/T 2679.6
Key Specification
| Model | GT-N09 |
| Measuring Range | 0-200kg |
| Compression Speed | 12.7mm/min |
| Resolution | 1/10,000 |
| Accuracy | ±1% |
| Dimensions | 810×400×860mm |
| Weight | 60kg |
