Place of Origin: | China |
---|---|
Brand Name: | Gester |
Certification: | CE,ISO |
Model Number: | GT-KB17A |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Key Words: | Safety Footwear Impact Tester | Warranty: | 1 Year |
---|---|---|---|
Test Object: | Safety Shoes | Calibration Certificate: | EN ISO 20344 5.4 |
Weight: | 230KG | Power Supply: | 60*70*220cm |
High Light: | CE Shoe Testing Machine,100J shoe testing machine,100J safety footwear impact tester |
Application:

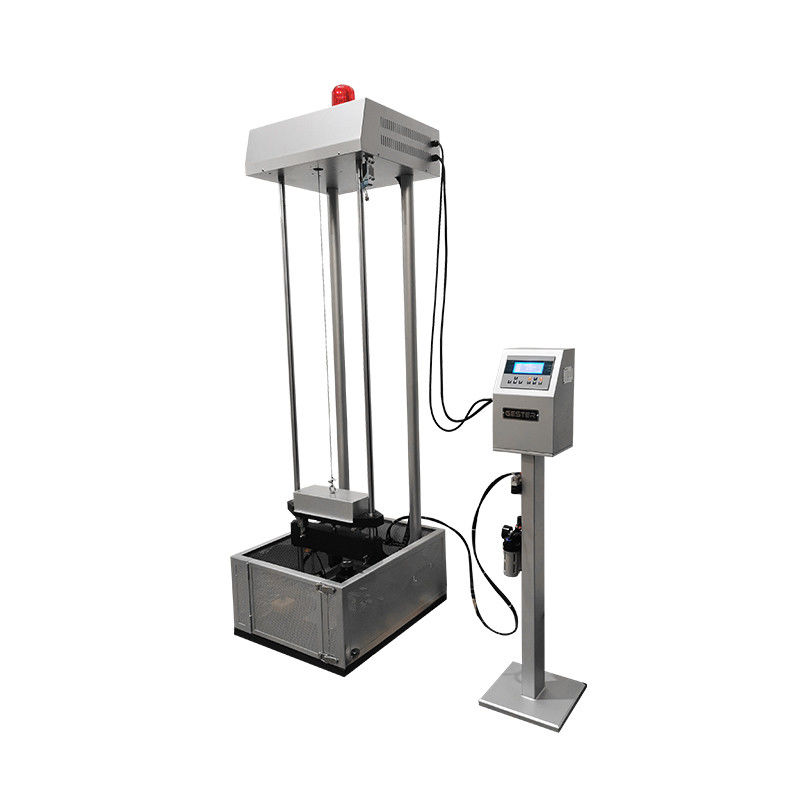

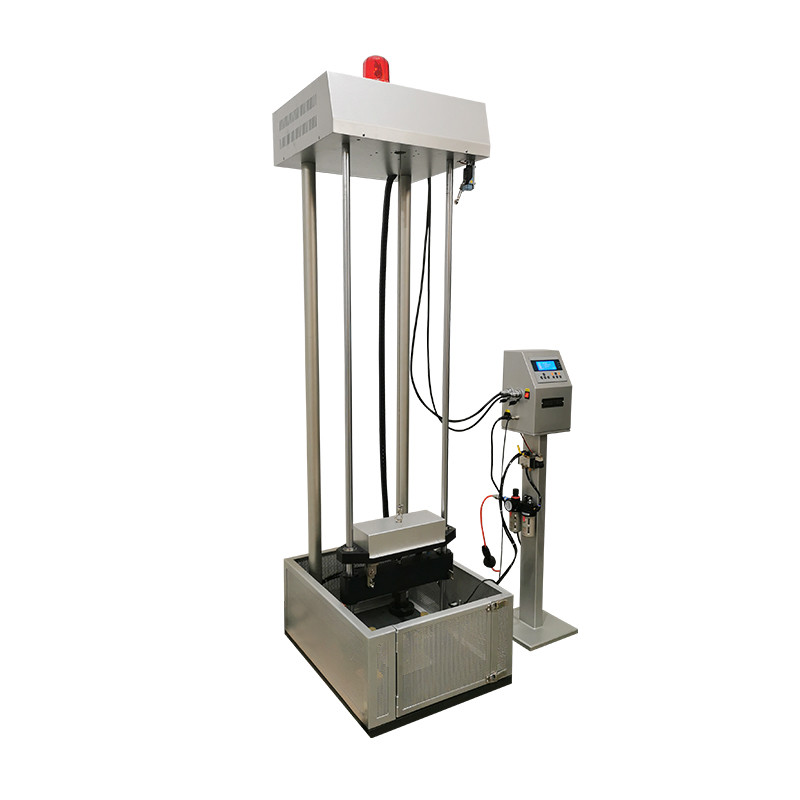

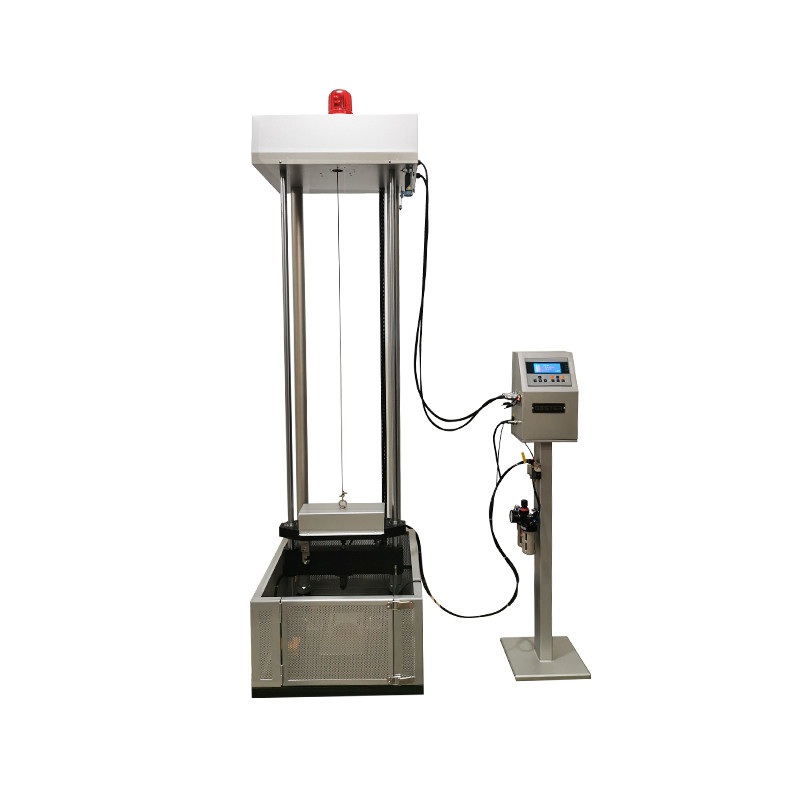

GESTER Safety Footwear/Shoes Impact Testing Machine/Tester is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.
Feature:

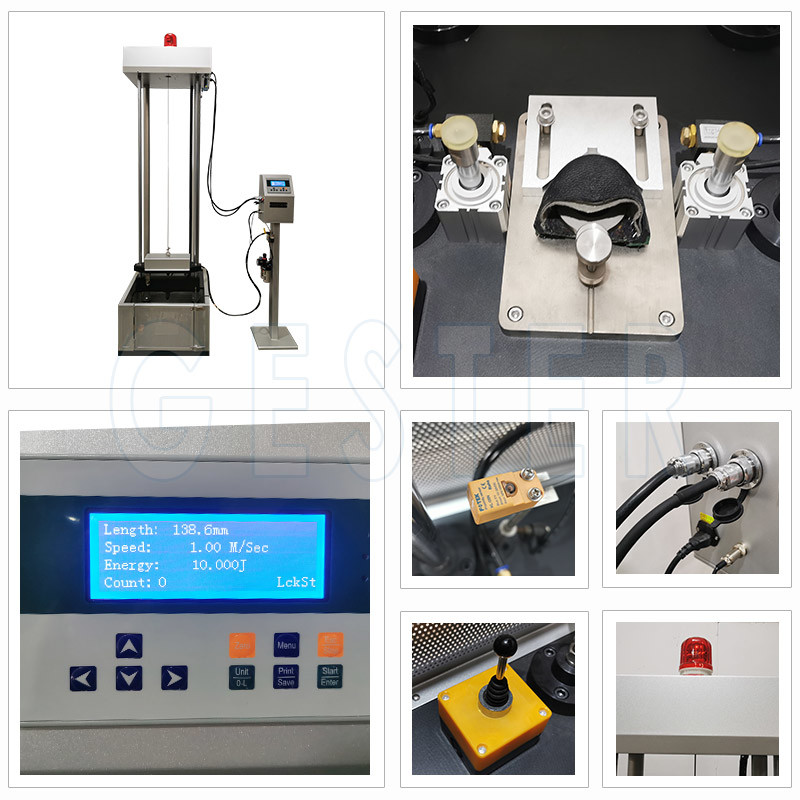

1. Equip with protection fence, to avoid hazardous objects splash

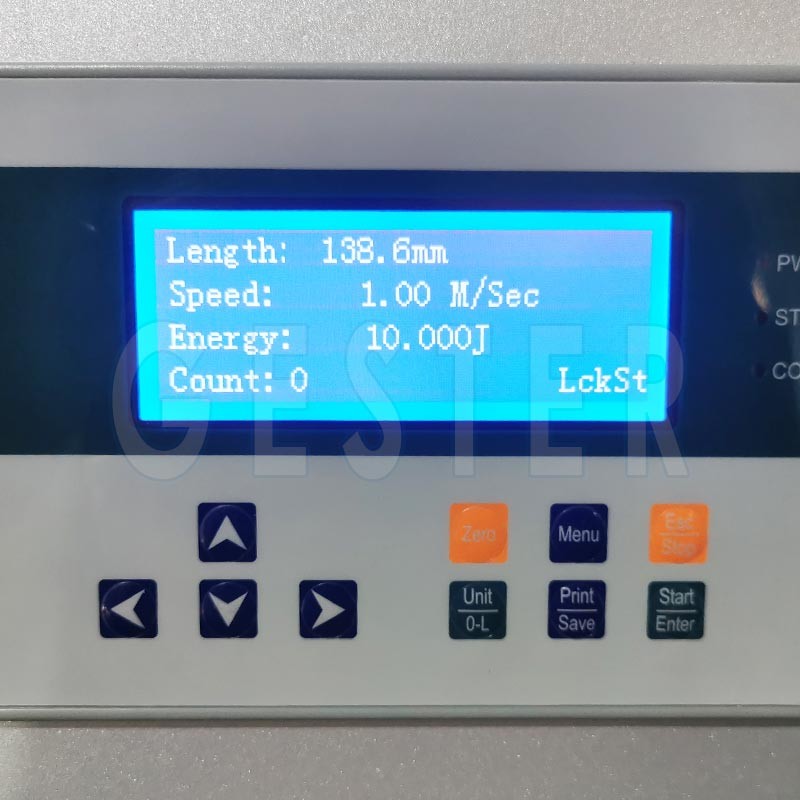

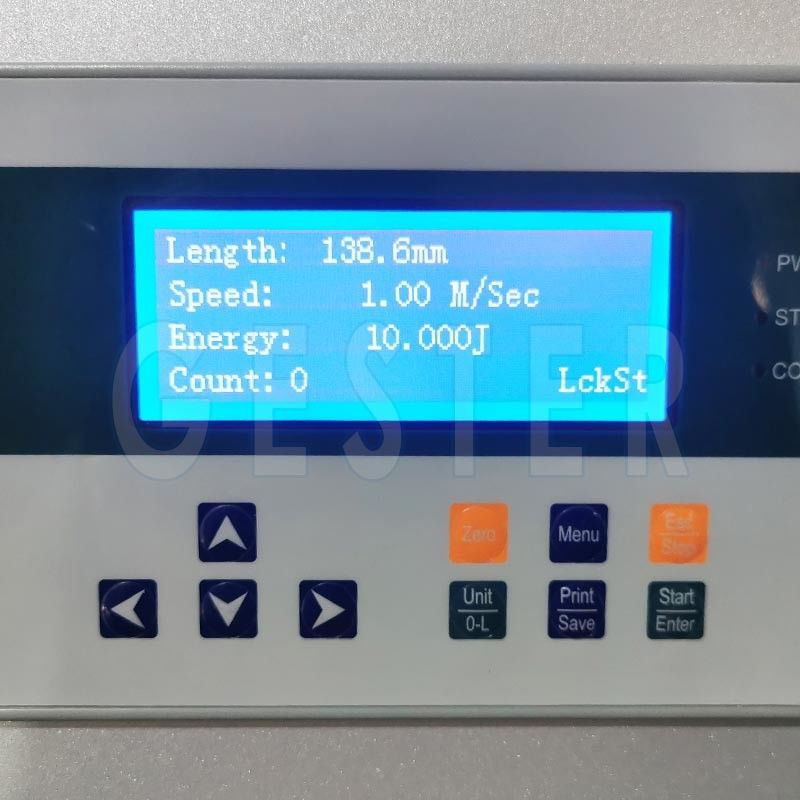

2. Control box separate with impactor, to protect personnel security.
3. Equip with electromagnet absorption device and automatically grab impact head to set height
Equip with two buffer cylinder, to avoid second impact.
Standards:
EN ISO 20344 Section 5.4 and 5.16, AS/NZS 2210.2 Section5.4 and 5.16, CSA-Z195 Section 5.21, ANSI-Z41 Section 1.4.5, ASTM F2412 Section 5, ASTM F2413Section 5.1
Key Specification
Model | GT-KB17A | GT-KB17B | GT-KB17C | |
Drop height range | 0- 1200mm | |||
Impact energy | 200±2 J | 100±2 J | 101.7±2 J | |
Impact hammer | Wedge, Length 75mm, | Cylinder, | ||
Impact surface | Corner radius R3 mm | Spherical radius R25.4mm | Length 152.4±3.2 mm | |
Impact hammer mass | 20±0.2 kg | 22.7±0.23kg | ||
Power supply | 1∮AC220V 50HZ 5A | |||
Dimensions(L x W x H) | 60 x 70 x 220cm | |||
Weight | 230kg | |||
Standards | EN ISO 20344 Section 5.4 and 5.16, | CSA-Z195-14 Section 6.2, | CSA-Z195-14 Section 6.4, |
Accessories
Standard accessories | 1set | Toecap clamp device |
1pc | Power line | |
Option accessories | Air compressor | |
Metatarsal protective test clamp device for EN ISO 20344 Section 5.16 |
