Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | GT-KC10C |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Temperature Range: | -40~100℃ | Warranty: | 1 Year |
---|---|---|---|
Price: | Factory Price | Inside Chamber Capacity: | 150L |
Chamber Material: | SUS # 304 Stainless Steel And Painted | Weight: | 500kg |
High Light: | Microprocessor Control Flexing Tester,Programmable Flexing Tester,ISO4643 Shoe Testing Machine |
ISO4643 Touch Screen Programmable Microprocessor Control Low Temperature Flexing Tester
Application
To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.
Feature
Key Specification
Model | GT-KC10C | ||||
Flexing Parameters | Types of Test Grips |
Whole shoes flexing test grips |
Upper flexing test grips |
ROSS flexing test grips |
Bally flexing test grips |
Number of Position | 2Sets | 2Sets | 2Sets | 3Sets | |
Flexing Speed | 140cpm | 300cpm | 60cpm | 100cpm | |
Bending Speed |
0-90° (Adjustable) |
/ | 90° | 22.5° | |
Counter | Touch Screen, 0 - 999,999.( Adjustment) | ||||
Control System | Touch Screen Programmable Microprocessor Control | ||||
Temperature Range | -40~100℃ | ||||
Inside Chamber Capacity | 150L | ||||
Chamber Material | SUS # 304 Stainless Steel and Painted | ||||
Power Supply | 1∮AC220V 50/60HZ | ||||
Weight | 500kg |
Standard accessories
For whole shoes flexing test | 1set | Plastic pad |
1set | Heel clamp | |
For ROSS flexing test | 1pc | Chisel cutter (2mm) |
Standards
For Bally Flexing Resistance Test | |
SATRA TM 55; IULTCS/IUP 20-1; ISO 17694 ; EN 13512 ; EN344-1 section 5.13.1.3 and annex C; GB/T20991 section 6.6.2.8; AS/NZS 2210.2 section 6.6.2.8; JIS-K6545; BS 3144 Clause 13 |
Equipped with A type of upper grips. |
ISO 32100 ; DIN53351; ISO5402-1; GE-24;ASTM D 6182 EN ISO 20344-2020 section 6.6.3 |
Equipped with B type of upper grips. |
For ROSS Flexing Test |
ASTM D1052, SATRA TM60, BS5131 : 2.1,GB 20265, ISO 5423, HG/T2411, ISO4643; EN20344-2020 section 8.7, 8.8.4 |
For Upper Flexing Test |
ISO 5423 section 5.2, EN ISO 20344-2020 Section 6.5, AS/NZS 2210.2 Section 6.5.2, GB/T 20991 Section 6.5.2, GB20265 section 4.1, EN ISO 22288, SATRA TM25 |
For Whole Shoes Flexing Test |
SATRA TM92 |

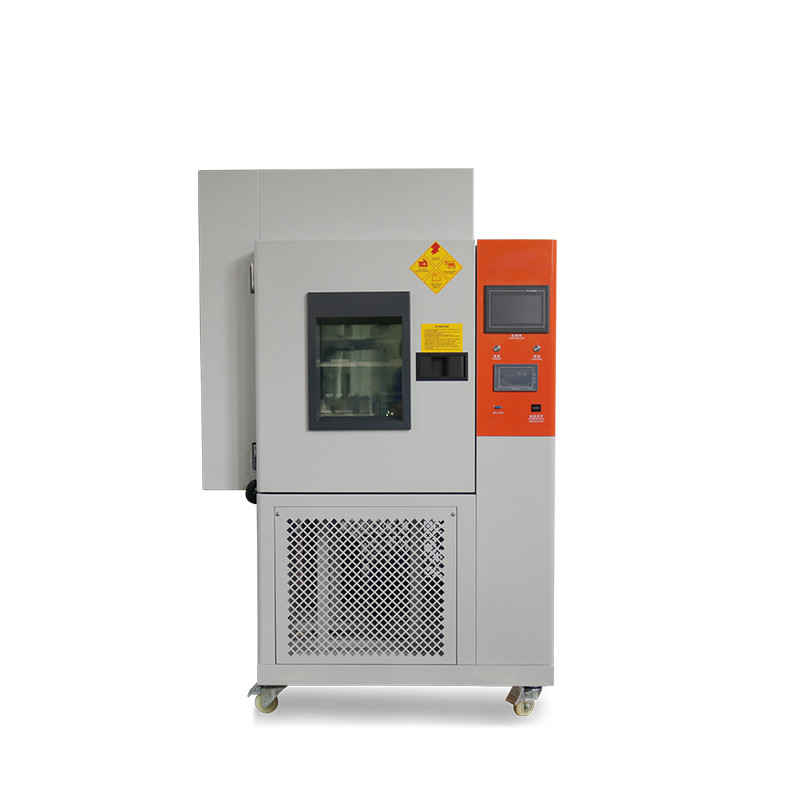

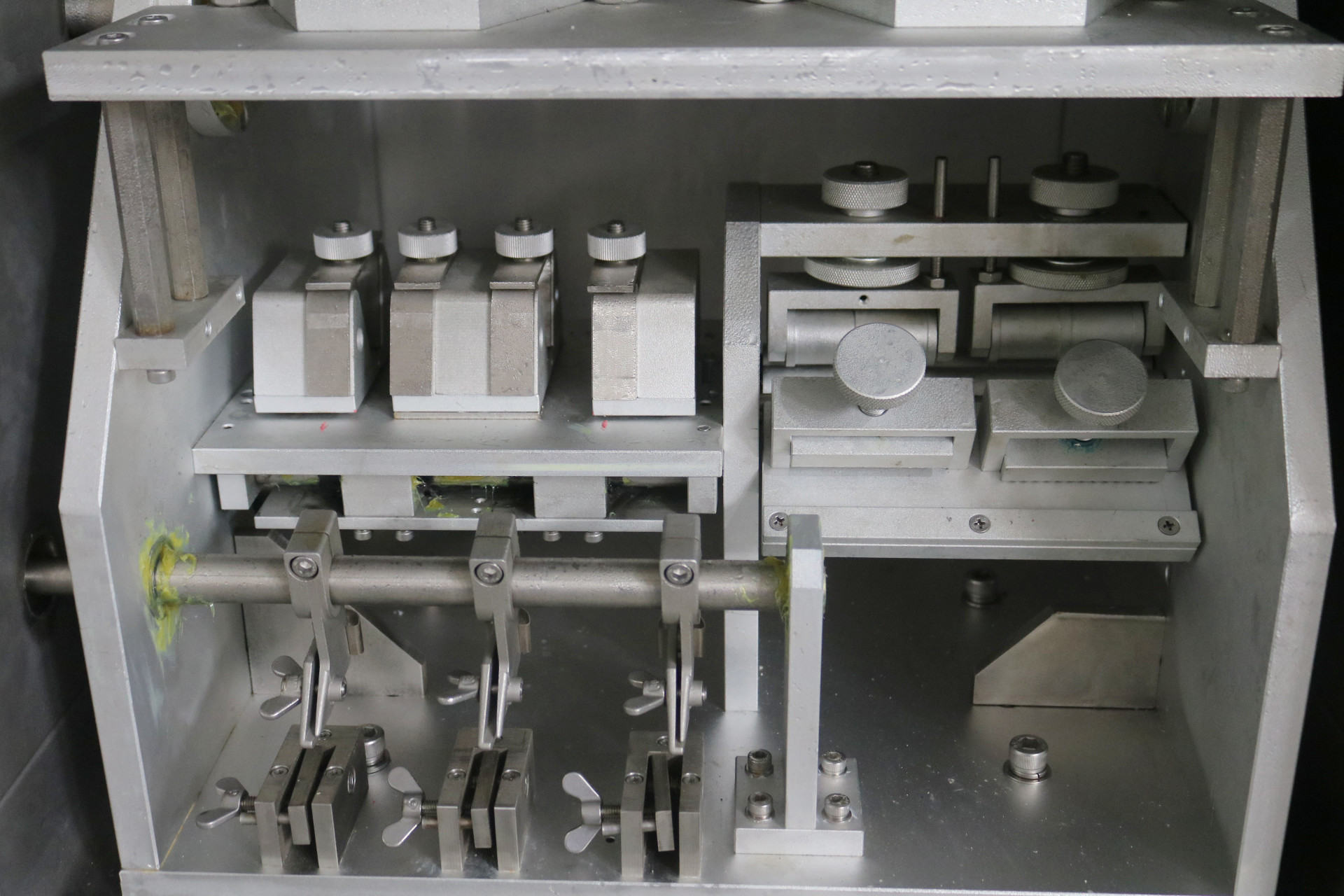

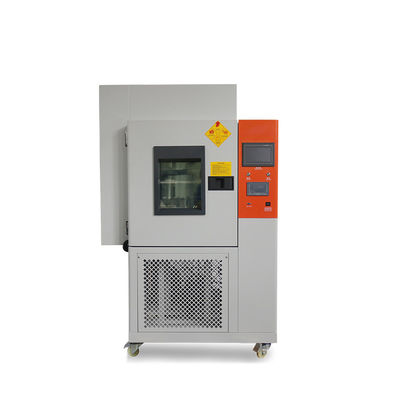

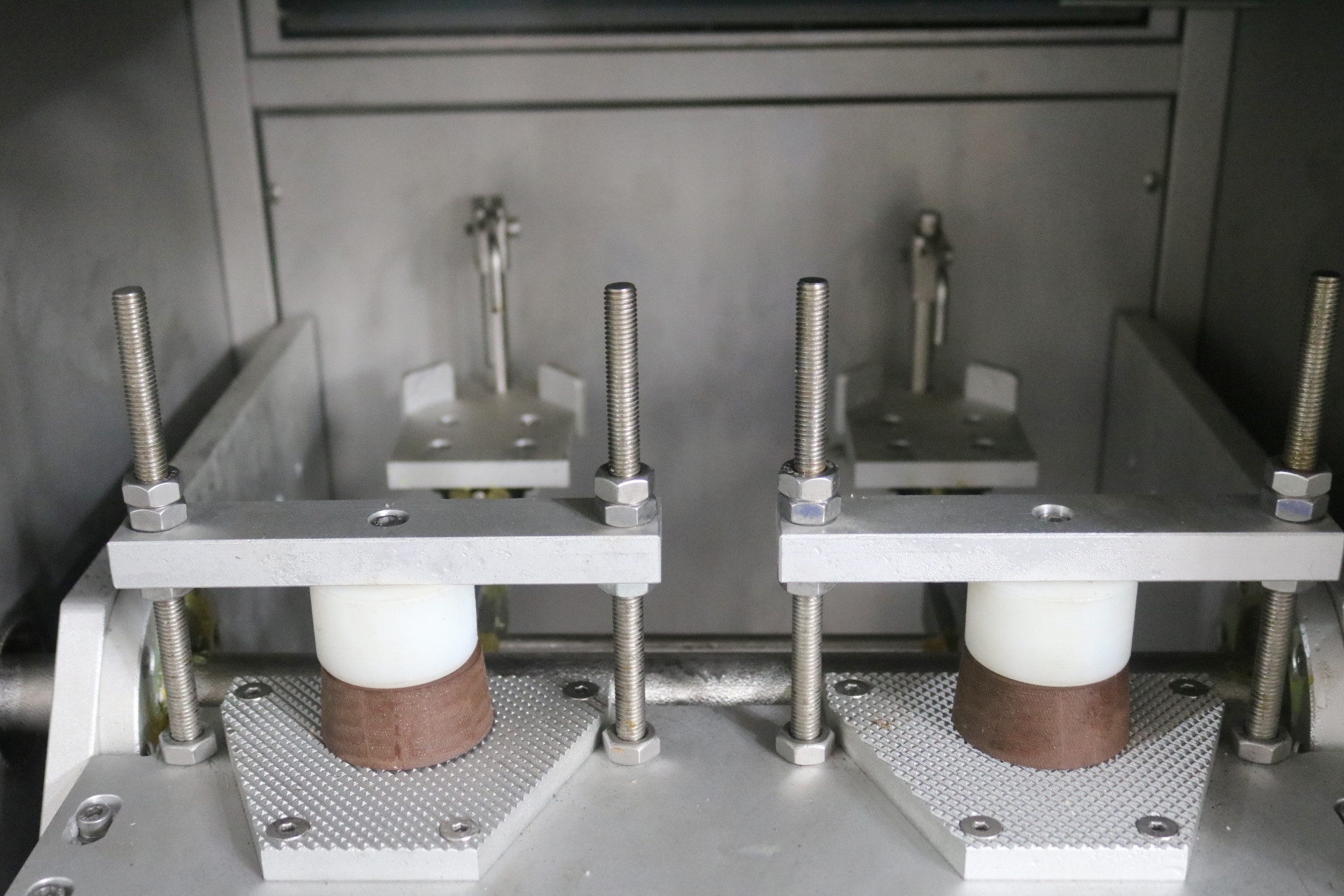

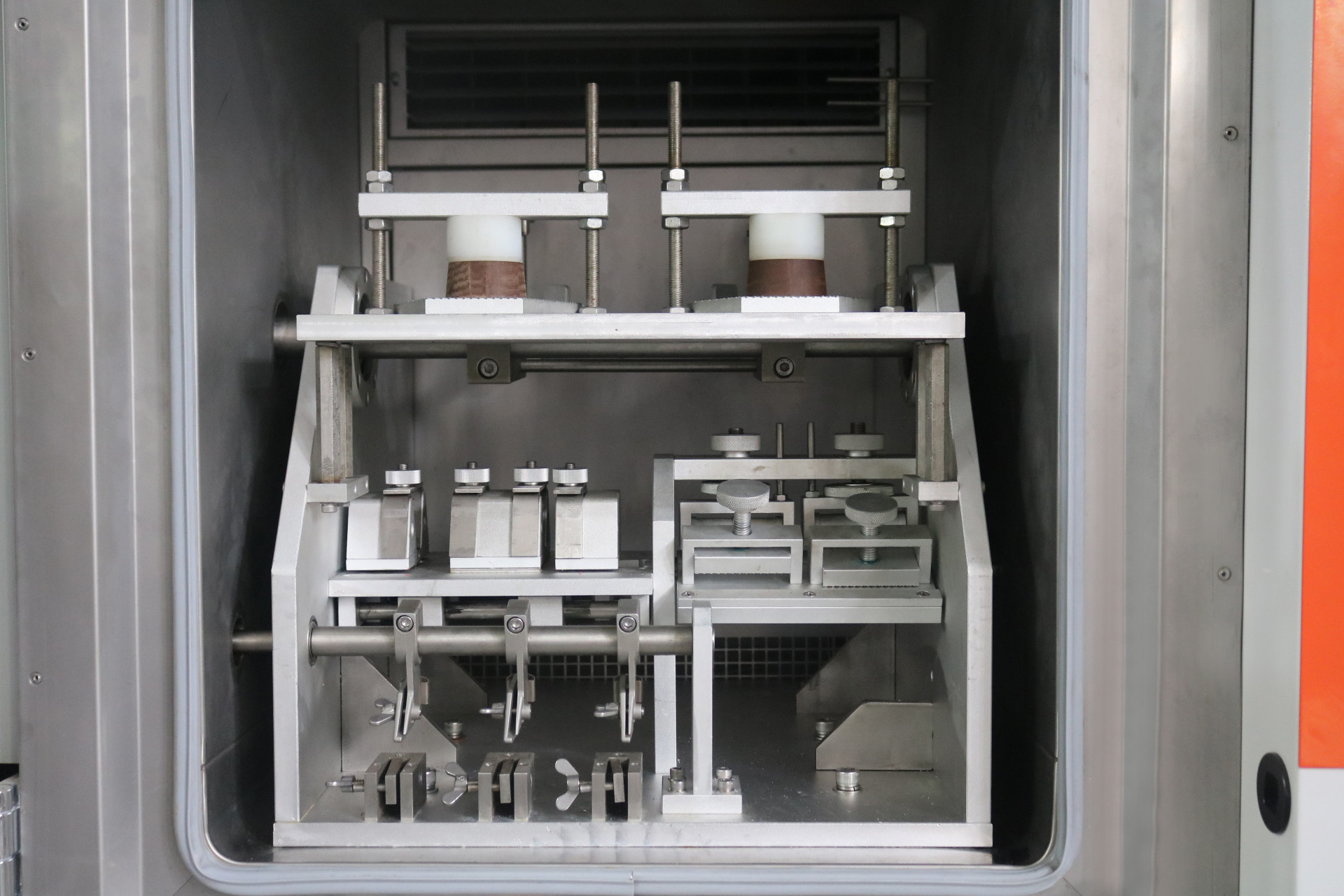

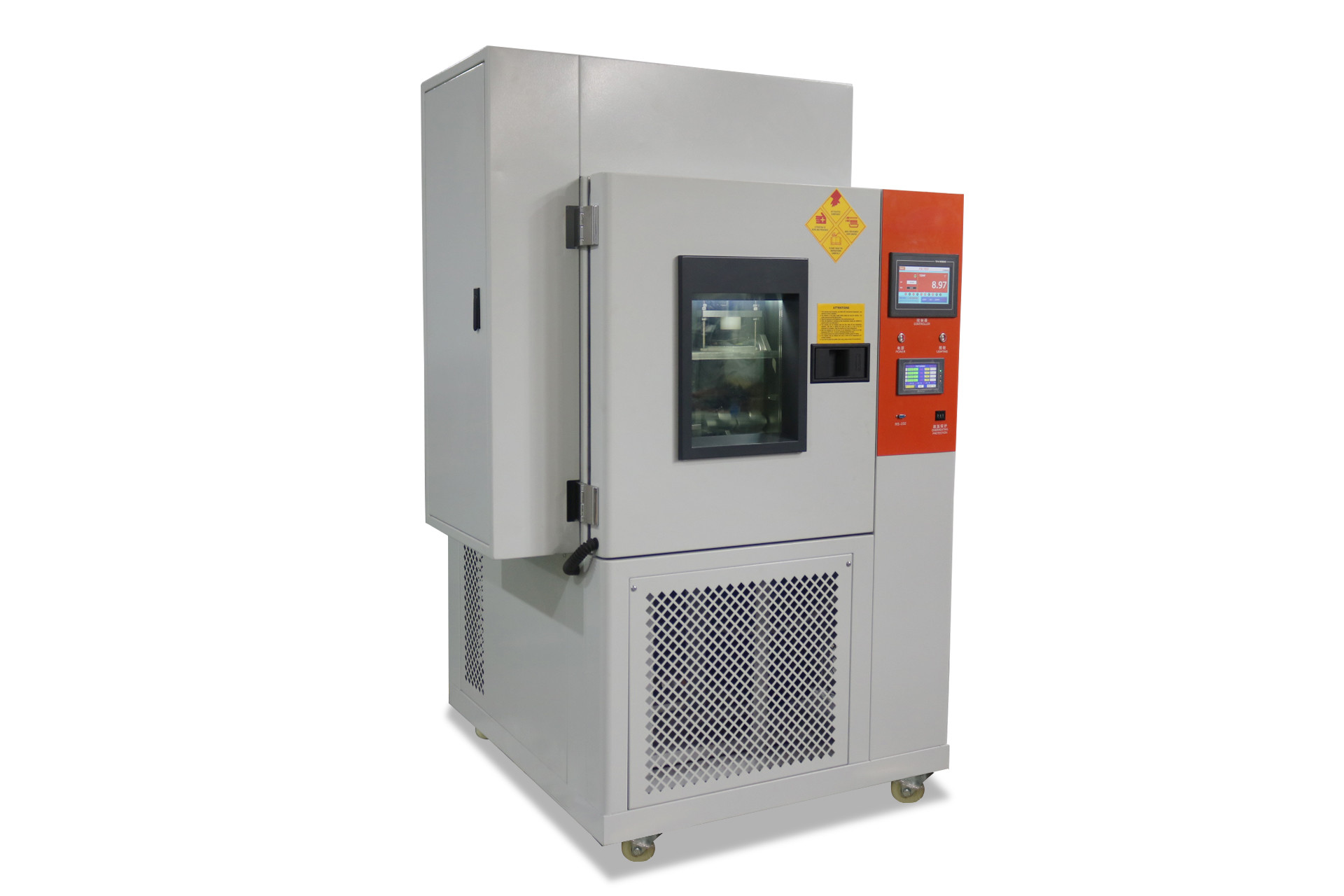

Product Picture
