Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-N29C |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Dimension: | 410×410×620mm | Usage: | Paper Testing Instrument |
|---|---|---|---|
| Warranty: | 1Year | Application: | Carton, Paperboard, Corrugated Board, Cigarette Packet Etc. |
| Weight: | 45kg | Testing Accuracy: | 0.01kpa |
| High Light: | JIS P8131 Bursting Strength Tester,TAPPI T810 Bursting Strength Tester,ISO2759 Carton Bursting Strength Tester |
||
Application
GT-N29C Bursting Strength Tester has abundant functions, such as, parameter testing, parametric transformation, parameter adjusting, parameter memory and parameter print. All are in accordance with related national standards. It has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.
Perfect for carton, paperboard, corrugated board, cigarette packet, beer case, shoebox, milk carton, plastic hollow plate, leather, fabric, high strength aluminum foil and copper foil.
Standards
| ISO2759, GB/T 1539, GB/T 6545, TAPPI T807, TAPPI T810, JIS P8131 |
Key Specifications
| Model | GT-N29C |
|
Testing Range
|
150-5600kpa |
| Testing Accuracy | 0.01kpa |
| Accuracy Rating | ≤0.5% |
| Deformation Error | ≤1mm |
| Oil Feeding Speed | 175±5ml/min |
| Dia. of Upper Plate | 31.5±0.1mm |
| Dia. of Lower Plate | 31.5±0.1mm |
| Intensity of Pressure (Rubber Diaphragm) | 170-220kpa, when it at 10±0.2mm |
| Holding Force | 0-1200kpa (adjustable) |
| Units | kpa, kg/cm2, lb/in2 |
| Printer | Thermal printer |
| Dimension | 410×410×620mm |
| Weight | 45kg |

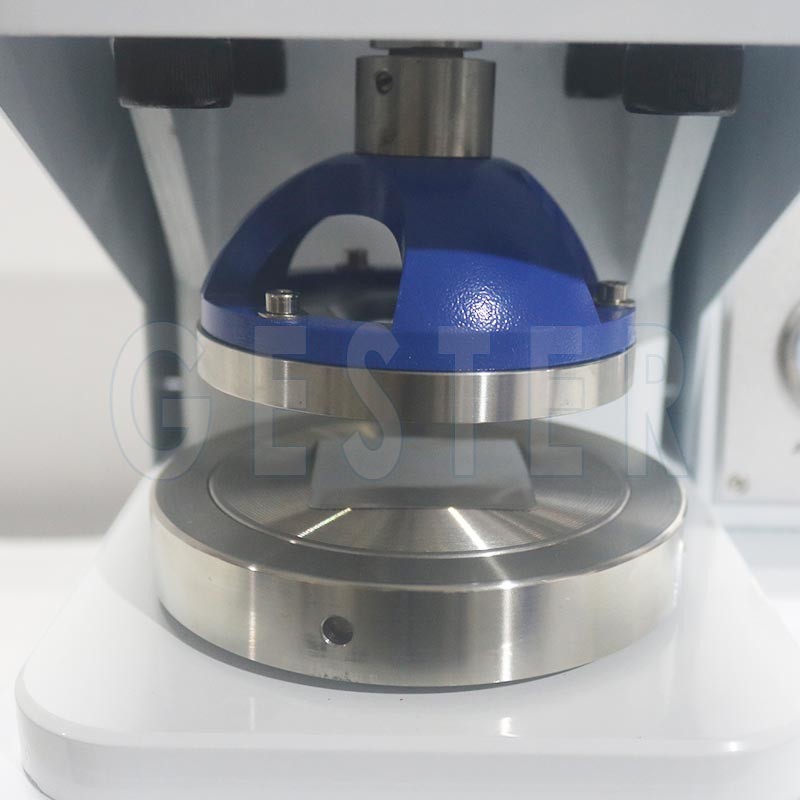

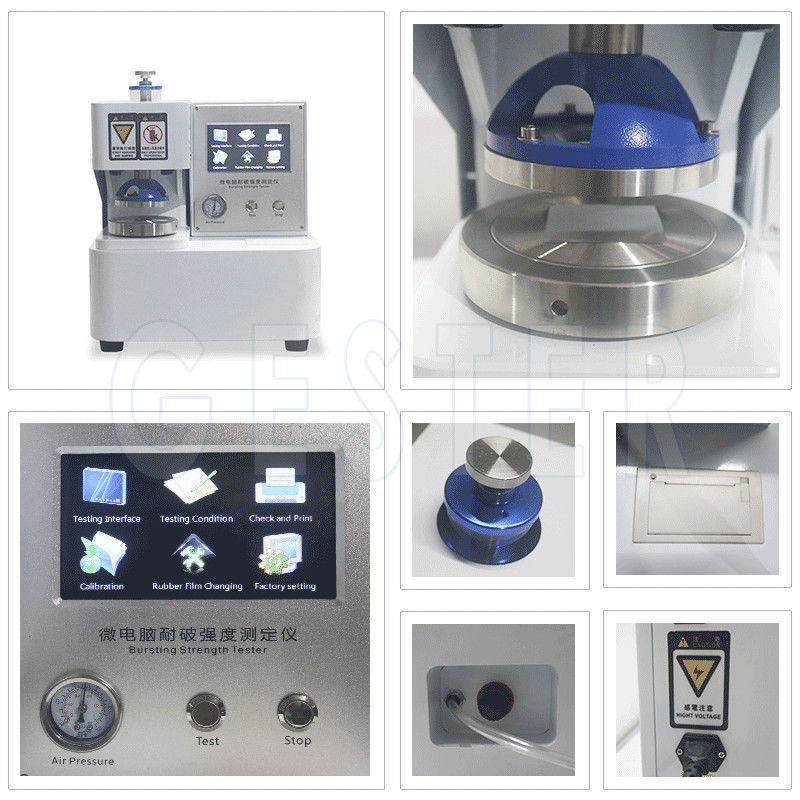

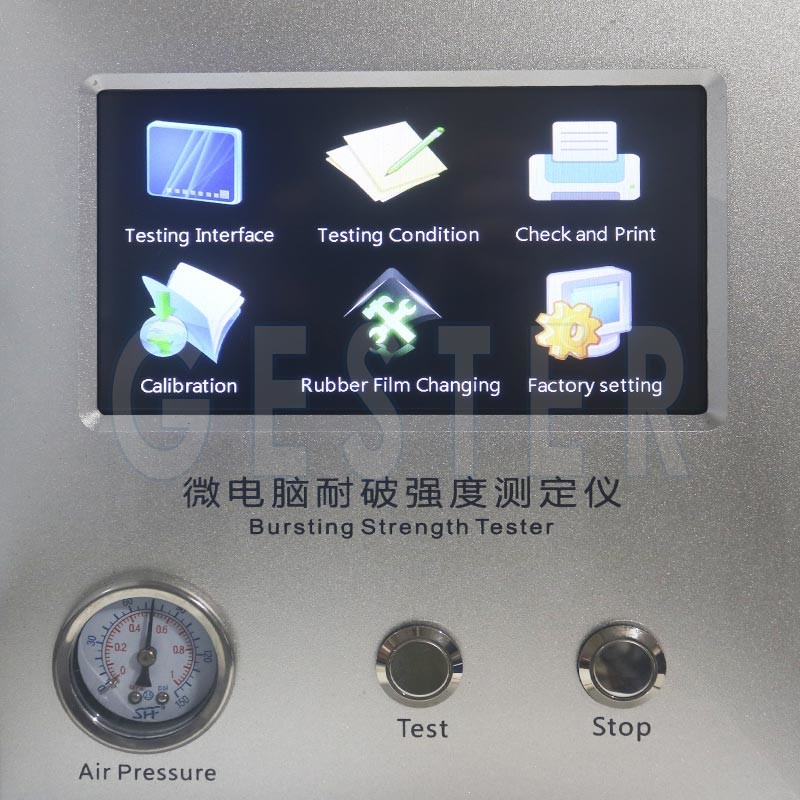

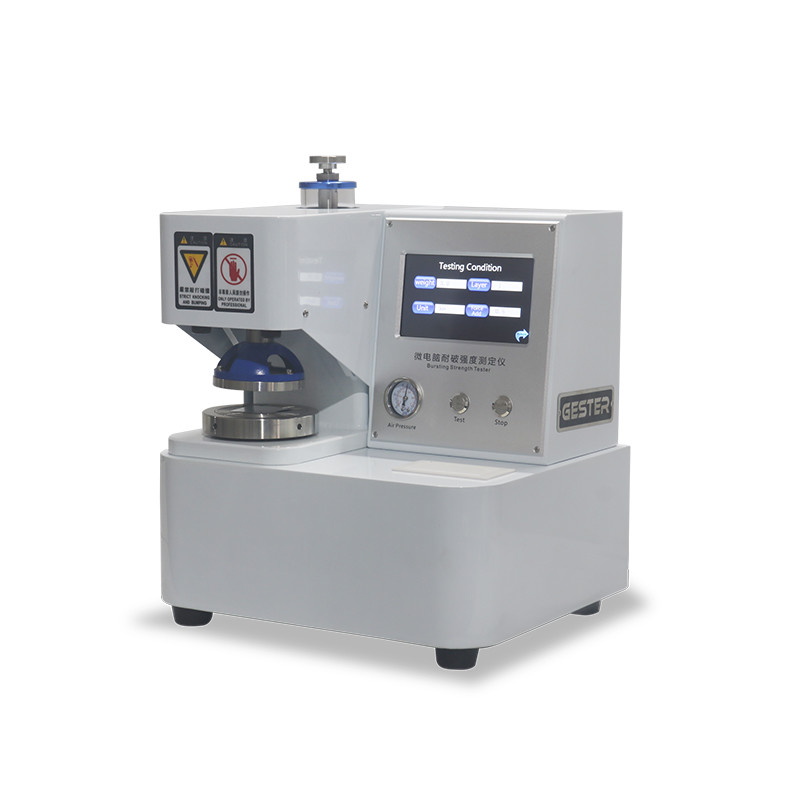

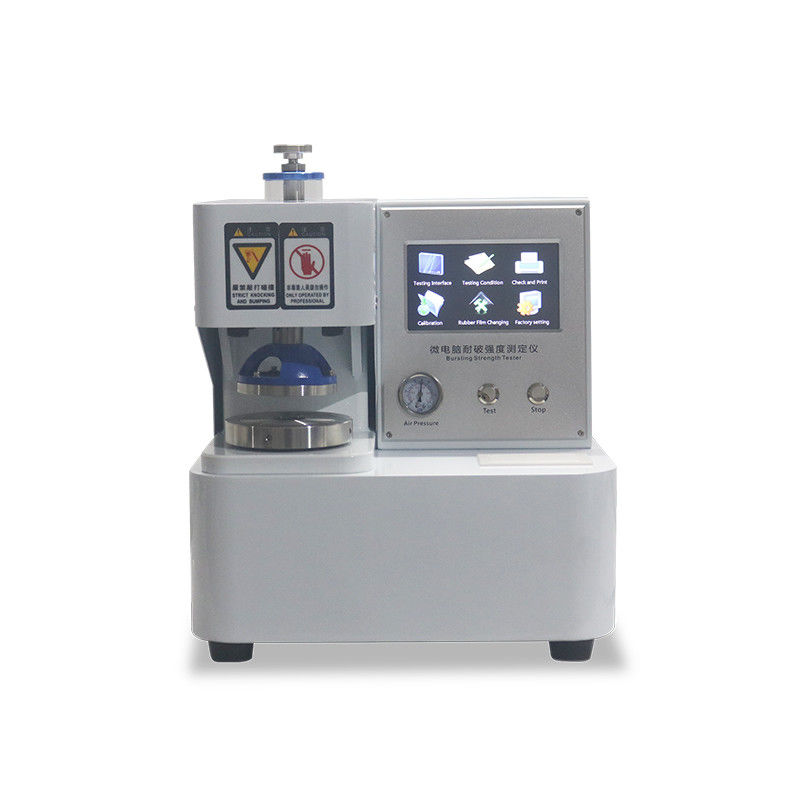

Product Picture
