Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | GT-I02B |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Automotive: | Automotive Battery Free Fall Testing Equipment | Maximum Weight Of Test Piece: | 600kg |
---|---|---|---|
Weight: | 100kg | Advantage: | Factory Direct Sales |
Drop Mode: | Automatic Fall | Use Power: | 220V, 3A, 660W |
Floor Size: | 50*600*10mm | Warranty: | 1 Year |
Color: | White And Purple | Machine Size: | 600*700*1650mm |
High Light: | plc free fall drop tester,Iec 62133 free fall drop tester,Iec 62133 free fall tester |

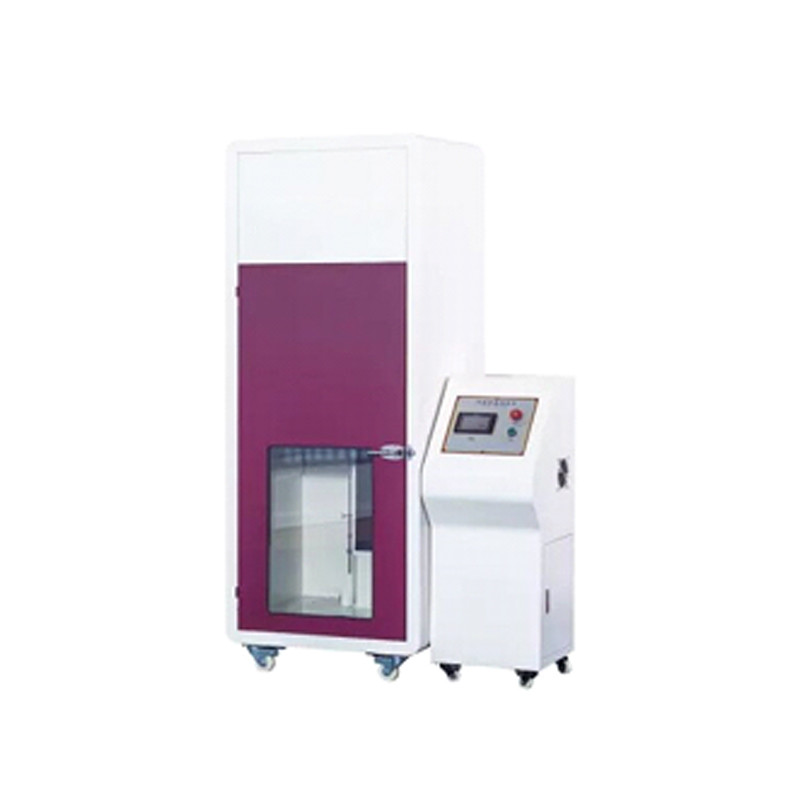

IEC 62133 Automotive Battery Free Fall Testing Equipment is used to test the battery samples from different heights and different angles and fall freely on the falling bottom plates of different materials to test the safety performance of the battery. At the same time, this machine is also suitable for free fall test of mobile phone, walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer motor products and parts.
According to the drop height required by the test, the free fall falls on the concrete slab or on the wooden board, and the drop height adjustable.
Model | GT-I02B |
Maximum weight of test piece | 5kg±100g |
Drop height | 300~1500mm (adjustable) |
Height resolution | 0.1mm |
Height display accuracy | 1mm |
Drop height display | PLC, minimum indication 1mm |
Control mode | Height setting, drop, rise and other actions are set by the PLC controller |
Clamping method | Air pressure adsorption type |
Lifting method | Electric lifting |
Drop mode | Automatic fall |
Drop floor material | Concrete board, wood board steel sheet |
Drop angle | Multi-angle (Ling, Angle, Face) |
Air pressure | 1MPa (customer-owned gas source) |
Floor size | 500×600×10mm |
Machine size | 600×700×1650mm |
Weight | 100kg |
Power source | 220V, 3A, 660W |
