Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | HEY11 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Key Word: | Disposable Plastic Cup Thermoforming Machine | Certificate: | CE, ISO |
|---|---|---|---|
| Applicable Material: | PP,HIPS,PE,PET,Starch-based Material | Sheet Thickness: | 3,0 Mm |
| Condition: | New | Work Frequency: | <35 |
| Motor Power: | 15kw | Power Supply: | 380V/50HZ |
| Control System: | PLC | ||
| High Light: | PS Plastic Cup Thermoforming Machine,PE Plastic Cup Thermoforming Machine,PLC Plastic Cup Making Machine |
||
Application

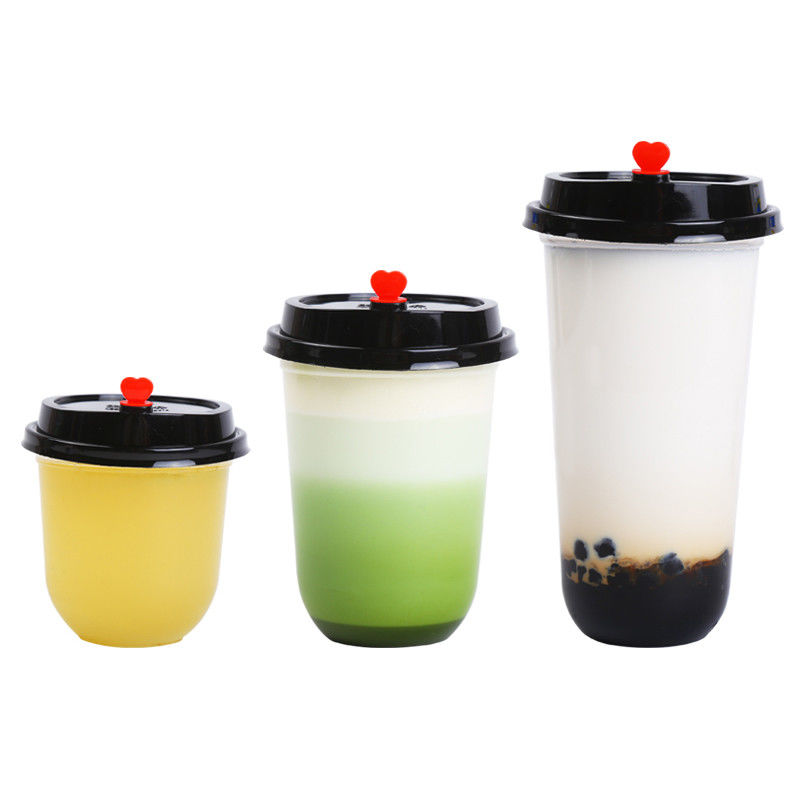

Hydraulic Cup Making Machine is mainly for the production of variety plastic containers with formed depth ≤180mm ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.
Features
Technical Parameter
| (Model) | HEY11A | HEY11B | HEY11C |
| Forming Area | 730x420 mm | 750*520 mm | 850*560 mm |
| Sheet width | 600-730 mm | 680-750 mm | 780-850 mm |
| Max.forming depth | 220 mm | 180 mm | 180 mm |
| Heating rated power | 130kw | 140kw | 150kw |
| Machine total weight | 6T | 7T | 7T |
| Motor power | 11kw | 15kw | 15kw |
| Applicable raw material | PP,PS,PET,HIPS,PE,PLA | ||
| Sheet thickness | 3,0 mm | ||
| Dimension | 4700x1600x3100mm | ||
| Work frequency | <35 | ||
| Motor power | 15kw | ||
| Power supply | 380V/50HZ | ||
| Pressure supply | 0.8 | ||
| Max.air consumption | 3.8 | ||
| Water consumption | 20 | ||
| Control system | PLC | ||

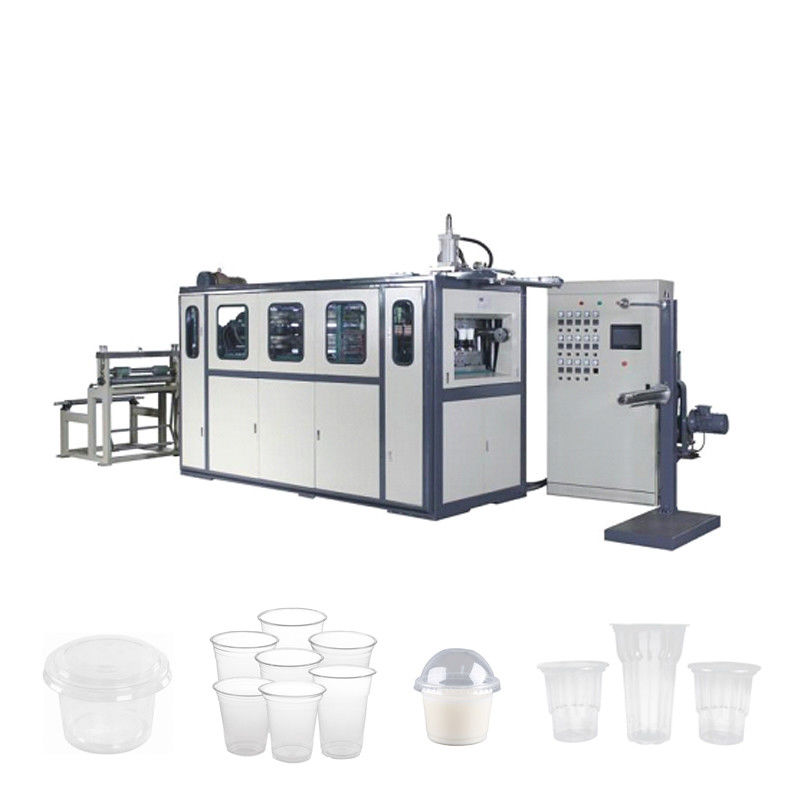

Product Image
