Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-LC05-1 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Power: | 220V | Usage: | Packaging Drop Test Equipment |
---|---|---|---|
Power Supply: | 220V 50Hz | Warranty: | 12 Months |
Testing Before Delivery: | Yes | Service: | Installation And Training Service |
Highlight: | GESTER Packaging Drop Test Equipment,220V 50Hz Packaging Drop Test Equipment,GESTER Free Fall Drop Tester |

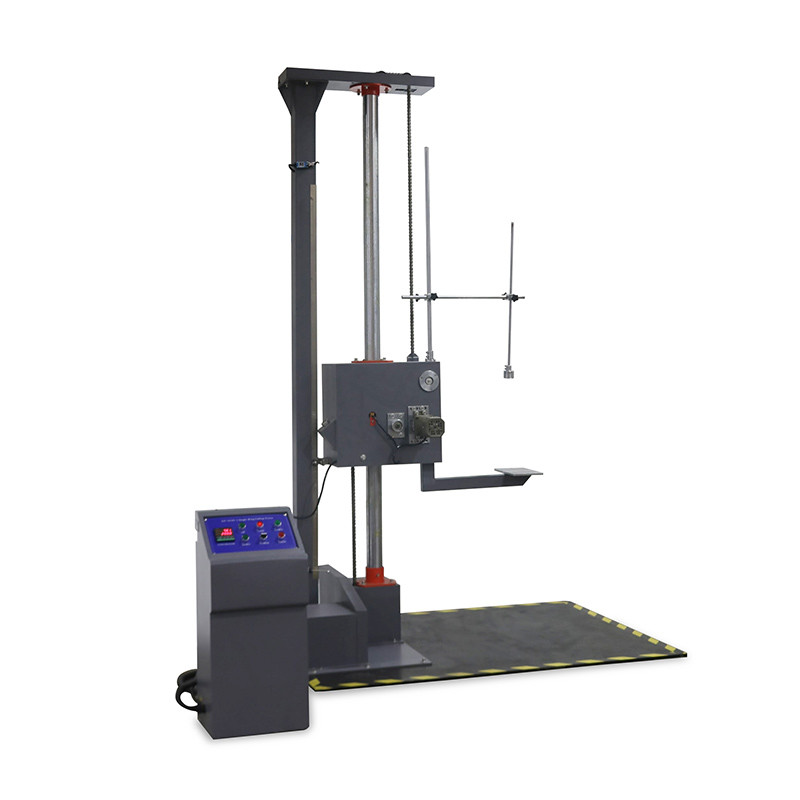

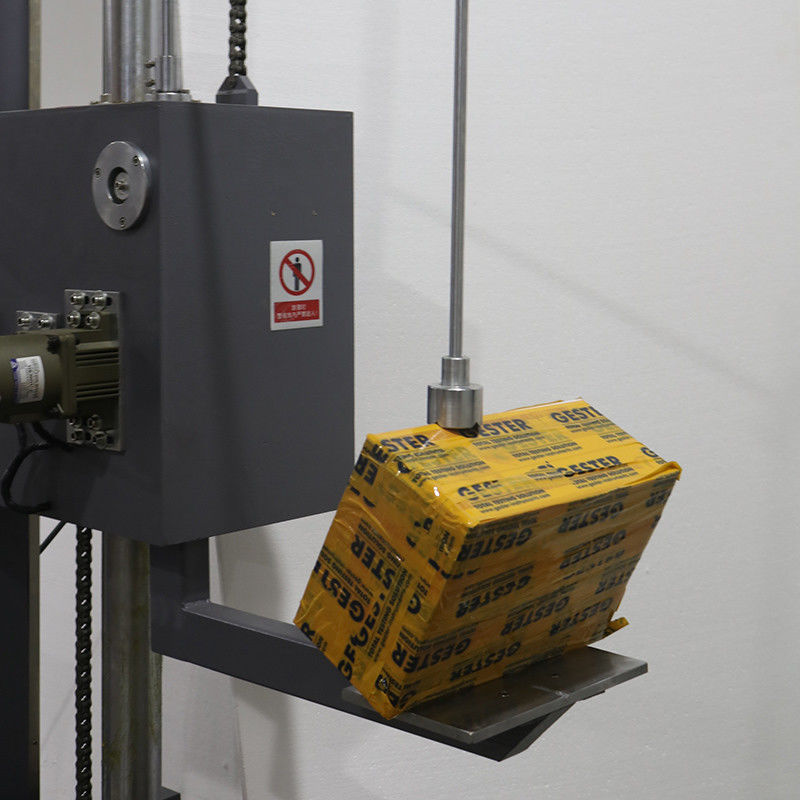

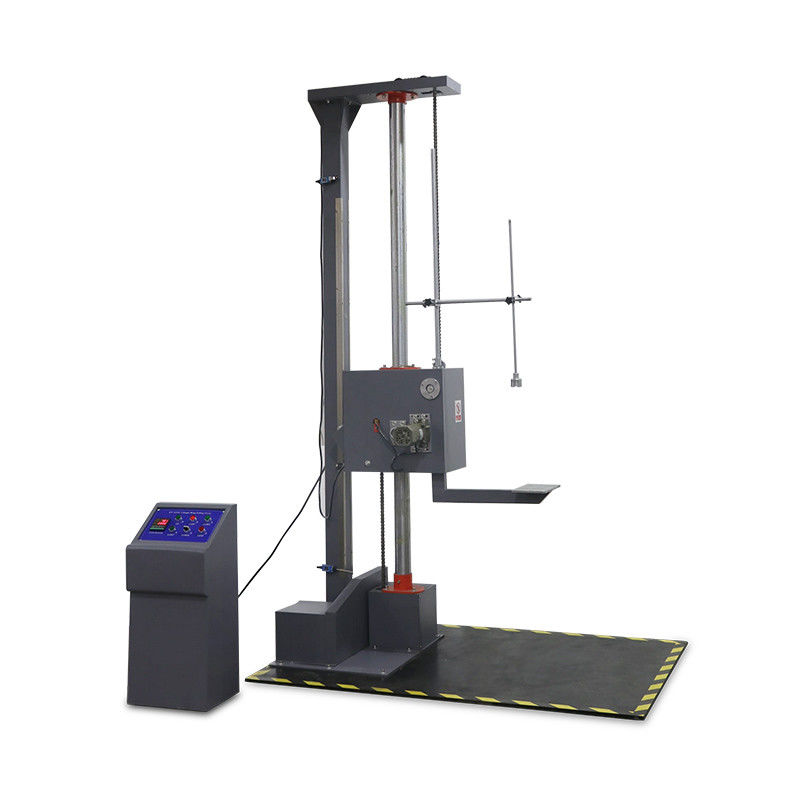

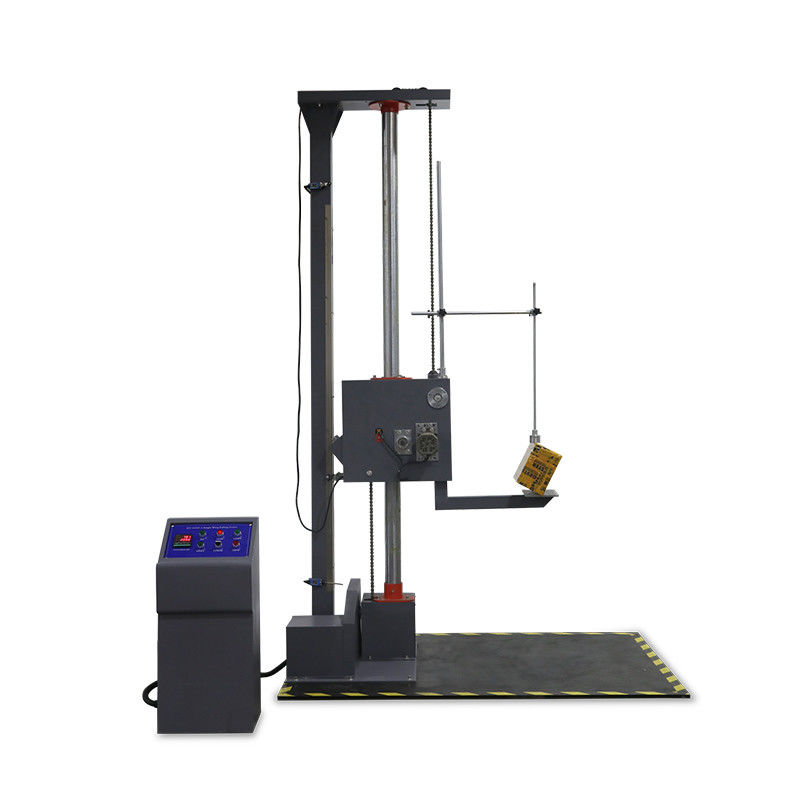

This Single Wing Falling Tester GT-LC05-1 is designed to test the damage of product packaging and to evaluate the impact resistance during transport.
Feature:
Model | GT-LC05-1 |
Falling height | 300mm-1500mm(adjustable) |
Falling height error | ±10 mm(1%) |
Parallel error of impact panel | ≤ 1° |
The error angle of the falling surface of the specimen in the process of falling | ≤ 1° |
Impact panel size | 1700×1200(mm) |
bracket arm size | 160×250×10(mm) |
Overall dimension of test bench | ≈1700×1200 ×2315(mm) |
Thickness of the bottom plate | 10mm (solid iron plate) |
Maximum specimen size(mm) | 800×800×1000(mm) |
Maximum weight of the specimen | 0-80Kg |
Test method | surface, angle, edge all-round drop |

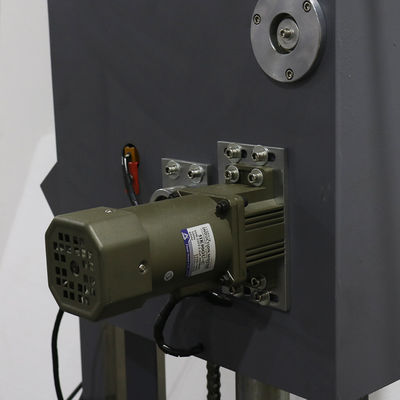

Transmission mode | electric drive |
Net weight (kg) | About 300 kg |
Dimension (W×L×H) | 1700×1200×2315mm |
Power supply | 3 phase AC 380V 50HZ 1.85KWA |
