Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | GT-A02A |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Certificate: | ISO, CE | Standards: | GB/T14344, GB/T3916, ISO2062, ASTM D2256 |
---|---|---|---|
Warranty: | 1 Year | Capacity: | According To Requirements |
Contorl: | LCD Display | Power: | Electronic |
Stroke Space: | 800mm | Items: | Conduct The Universal Test For Various Material |
Product Name: | Electronic Single Yarn Strength Tester | Feature: | Factory Price |
High Light: | GB/T14344 Yarn Tensile Strength Tester,LCD Display Yarn Tensile Strength Tester,LCD Display Yarn Strength Tester |

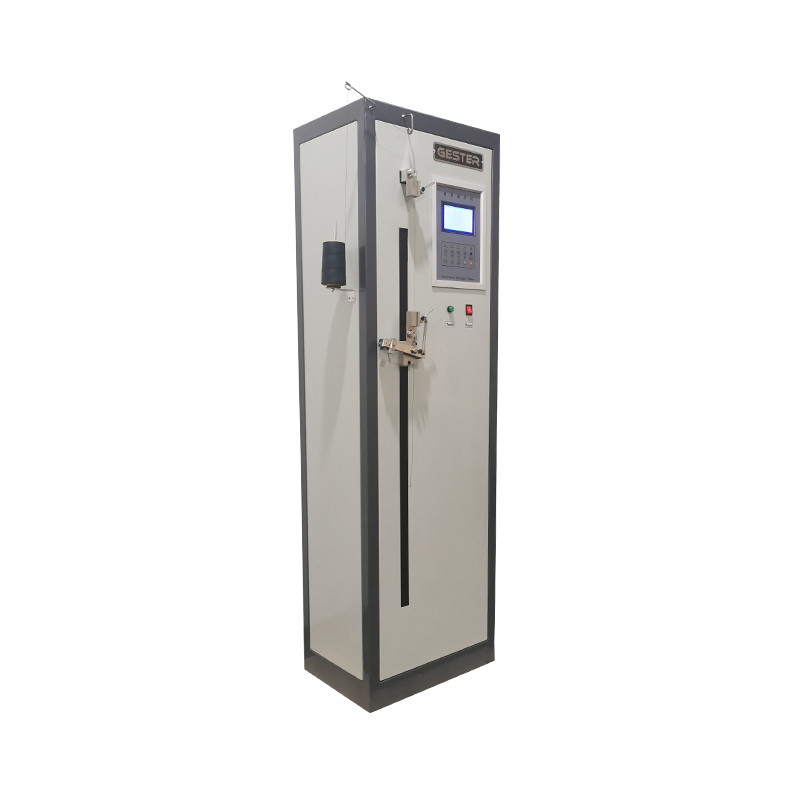

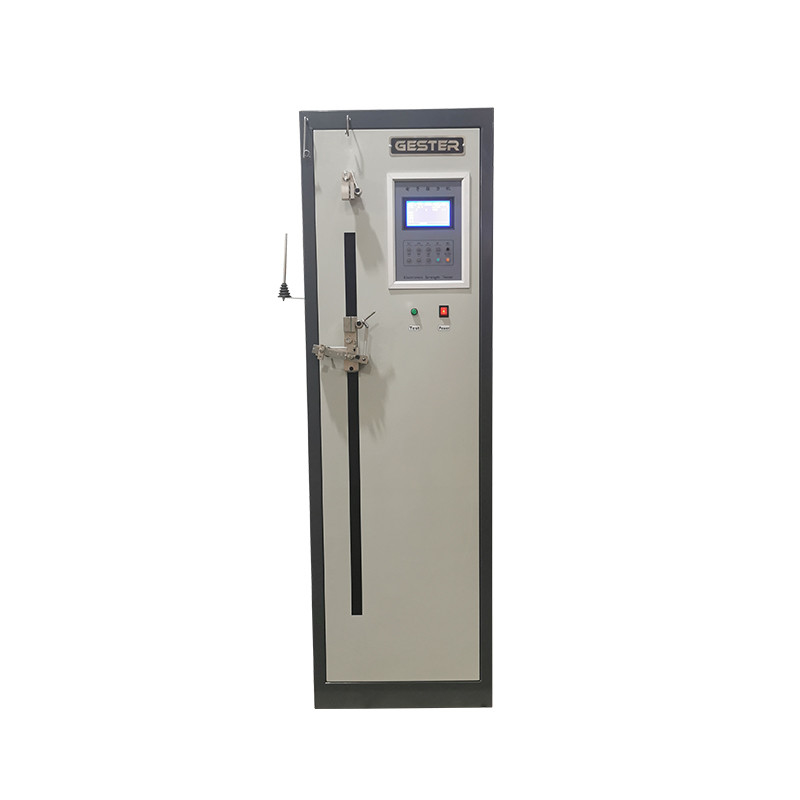

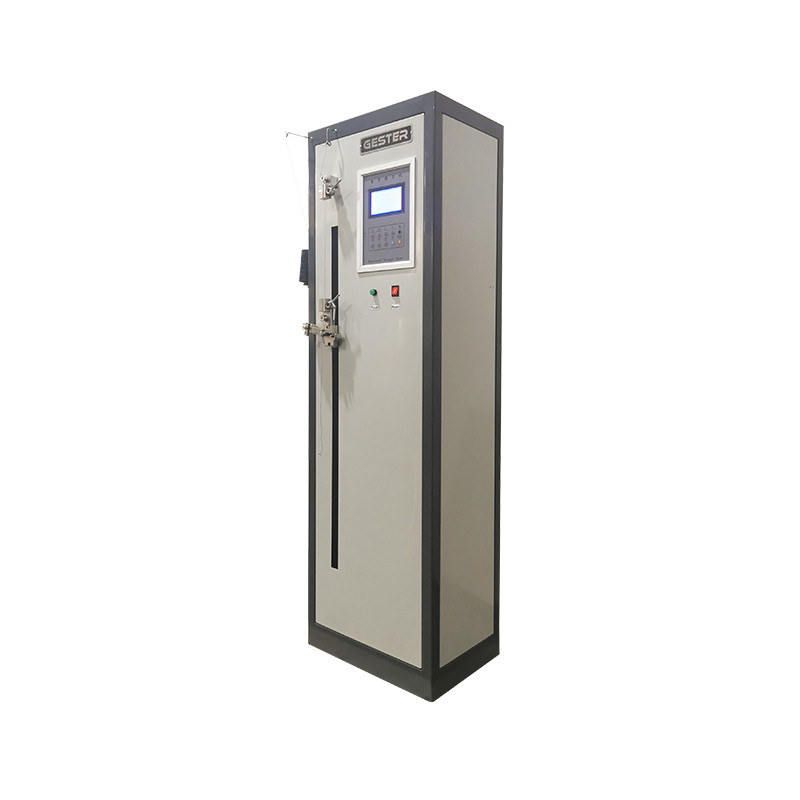

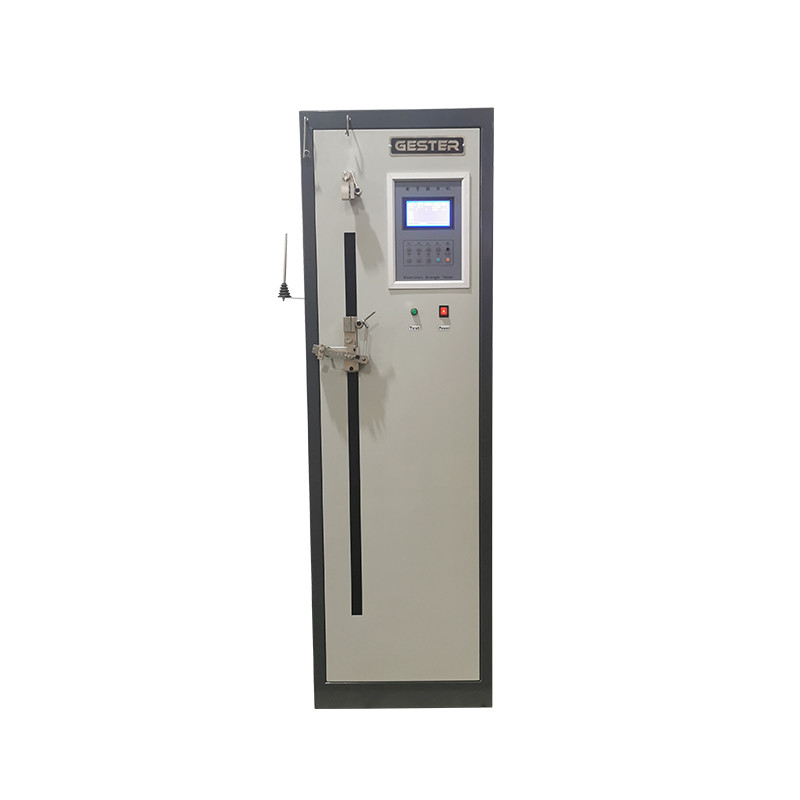

Electronic Single Yarn Tensile Strength Tester Testing Machine
Application |
Lab Testing Machine Electronic Single Yarn Strength Tester is designed for laboratory use of testing the breaking strength and elongationing percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.
Widely used in the corresponding industries, research and development, test institutes and training centers etc.
Feature |
1. Dynamic Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material.
2. Clamp distance can be set freely, and positioned automatically according to the setting system.
3. Support online operation and with specialist software analysis system for data analysis and backup.
4. Domestic first creation sample test and data-processing software with multithreading.
5. Software can online analyze data and show the statistic value of breaking strength, elongation rate, yield strength, initial modulus, and plastic deformation.
Standards |
GB/T14344, GB/T3916, ISO2062, ASTM D2256
Key Specification |
Model | GT-A02A-1 | GT-A02A-2 | GT-A02A-3 | GT-A02A-4 |
Load range | 0-3000cN | 0-5000cN | 0-100N | 0-300N |
Working pattern | Constant rate of extension (CRE principle), computer control, English LCD display, report printing. | |||
Testing range | 1%-100% of the full range | |||
Testing accuracy | ≤0.2%F·S | |||
Test speed | 50~1000mm/min | |||
Stroke space | 800mm | |||
Clamp distance | 50~500mm,digital setting | |||
Pr-tension | 0-150cN tension steelyard | |||
Power supply | Ac220V±10% 50Hz 0.25Kw | |||
Dimensions | 520×400×1600mm | |||
Weight | 60kg |

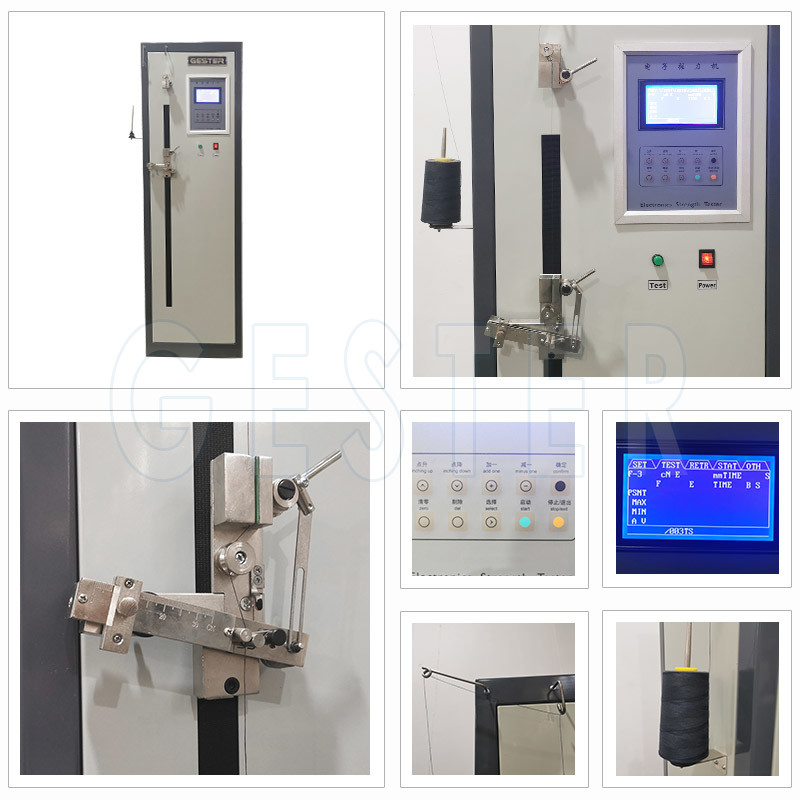

Product Image |
