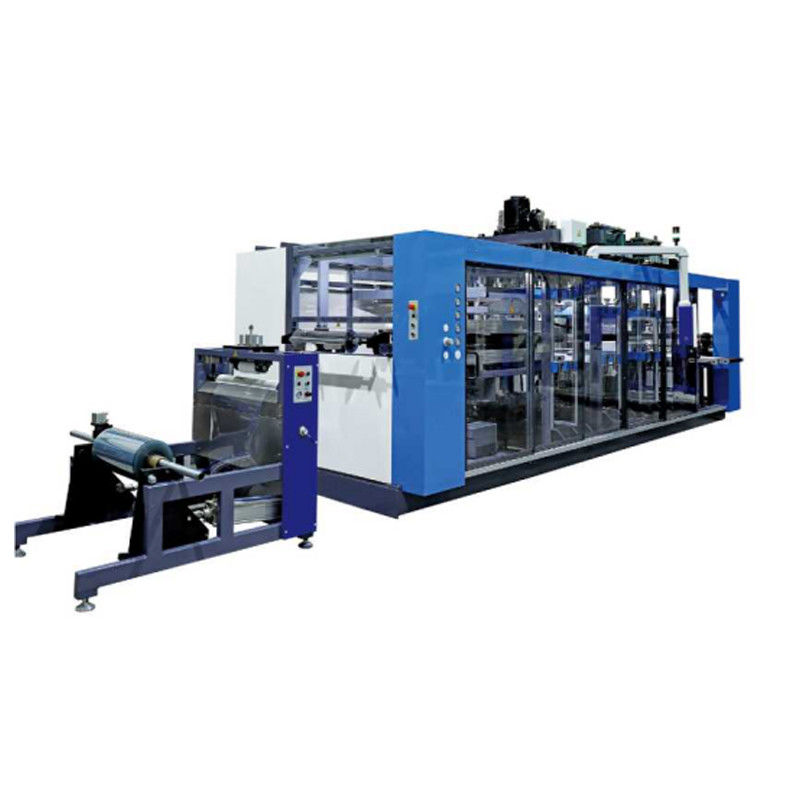

Four Stations Large PP Plastic Thermoforming Machine
Product Introduction:
Four Stations Large PP Plastic Thermoforming Machine is forming, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes, lids, etc.
Feature:
1.PP Plastic Thermoforming Machine: High degree of automation, production speed. By installing the mold to produce different products, to achieve more purposes of one machine.
2.Integration of mechanical and electrical, PLC control, high precision feeding by frequency conversion motor.
3.PP Thermoforming Machine Imported famous brand electrical components, pneumatic components, stable operation, reliable quality, long using life.
4.The thermoforming machines has compact structure, air pressure, forming, cutting, cooling, blow out finished product feature set in one module, make the product process short, high finished product level, accord with national health standards.
Key Specification:
| Model |
GTM52
|
| Maximum forming area |
625x453mm
|
| Minimum forming area |
250x200mm
|
| Maximum mold size |
650x478mm
|
| Maximum mold weight |
250kg
|
| Height over sheet material forming part |
120mm
|
| Height under sheet material forming part |
120mm
|
| Dry cycle speed |
35 cycles/min
|
| Maximum film width |
710mm
|
| Operating pressure |
6 bar
|
