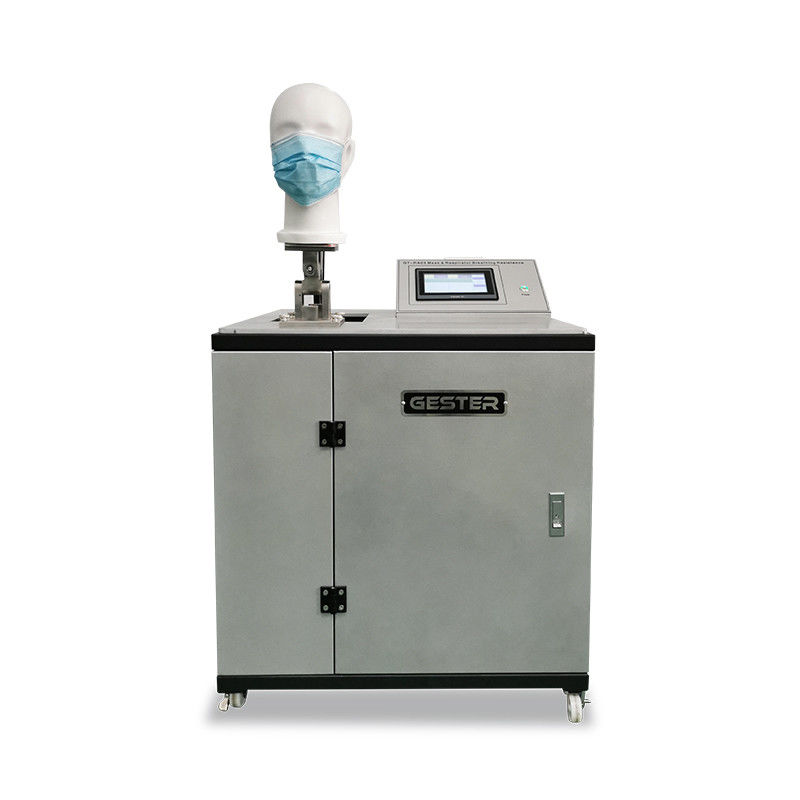

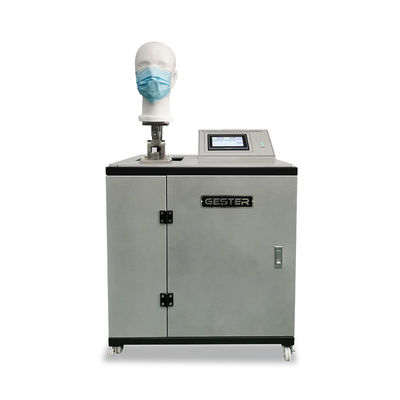

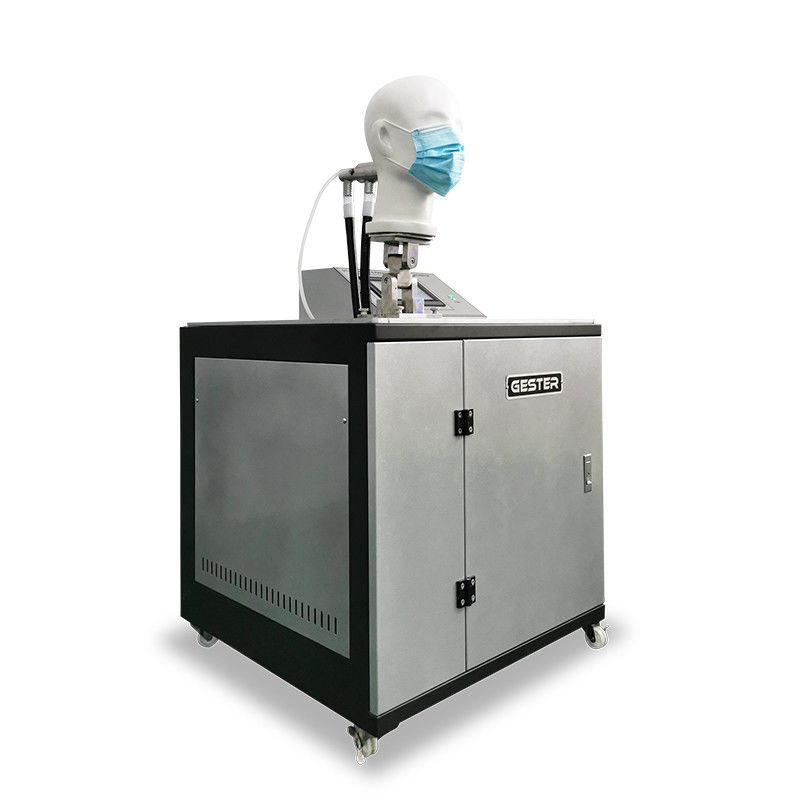

EN149 Breathing Resistance Tester For Mask Respirator

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	GT-RA03

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 set/month

Get Best Price Contact Now

Power:	AC220V	Usage:	Mask Inspiratory And Expiratory Resistance Test
Product Name:	Respirator Breathing Resistance Tester	Warranty:	12 Months
Advantage:	Factory Direct Sale	Service:	Online Support, Installation And Training
High Light:	2000Pa Breathing Resistance Tester , 100L/min Breathing Resistance Tester , 2000Pa Respirator Breathing Resistance Tester

Product Introduction

Application:

Breathing Resistance Tester can be used to determine the inspiratory and expiratory resistance of masks under specified conditions.

Feature

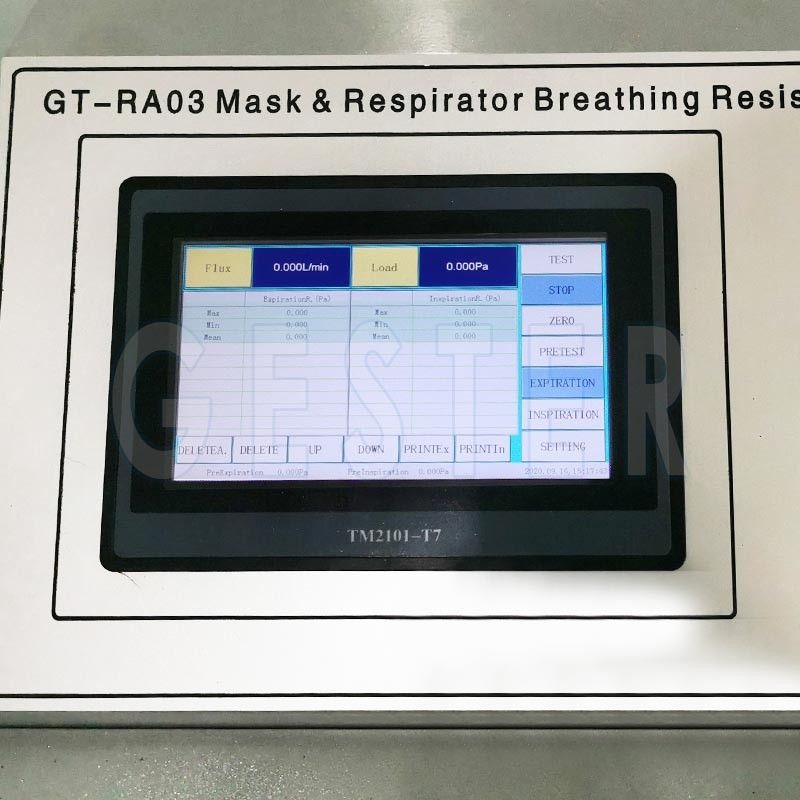

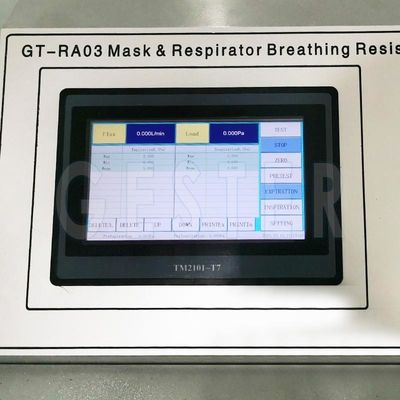

High-definition color touch screen. High-precision imported differential pressure sensor.
Two high-precision digital flow meters are imported to control the respiratory flow with high accuracy.

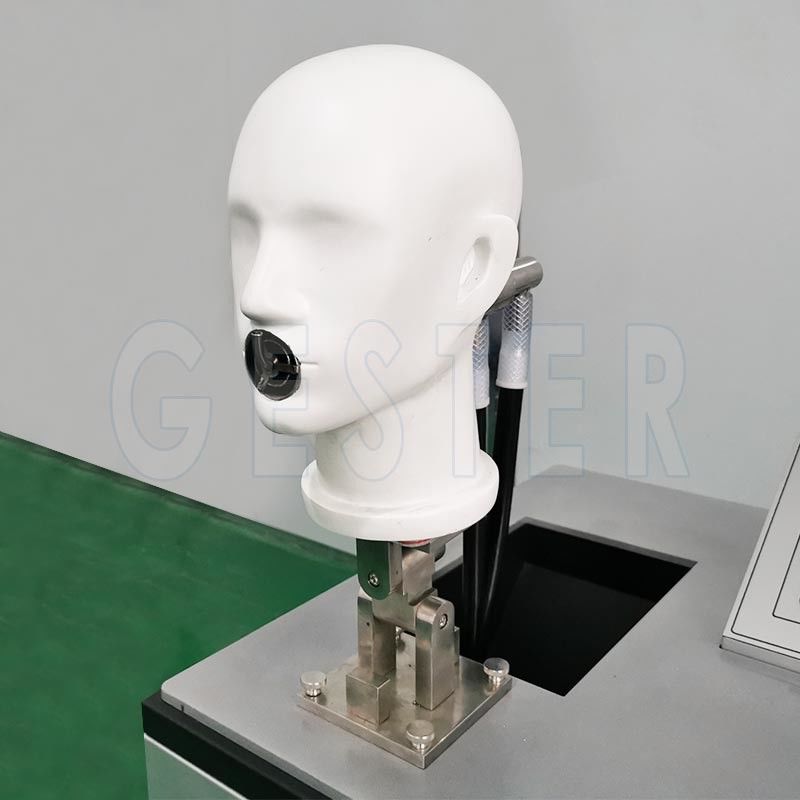

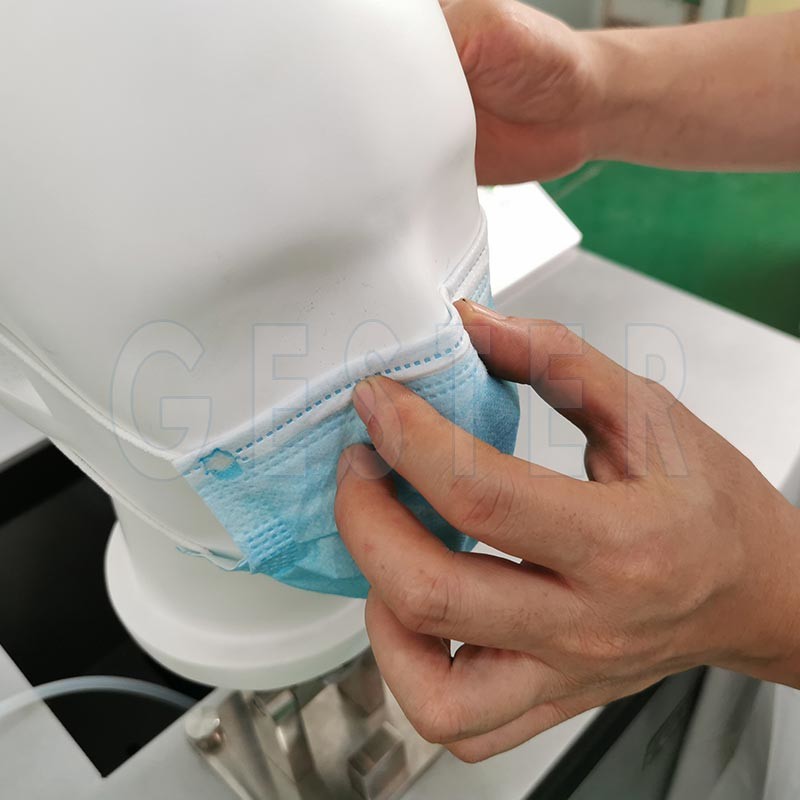

Standard head mold to simulate the respiratory tract. Both breath detection and inhalation detection modes can be set.
The respirator pipeline automatic switching device solves the problems of extubation and misconnection of pipelines when tested by testers

Key Specifications

Model	GT-RA03
Range of Flow Meter	0~400L/min ,Accuracy: 1%
Range of Digital Differential Pressure Gauge	0～1000Pa, Accuracy:1Pa
Pump Capacity	≥300L/min
Printer	Micro-thermal printer
Dimensions	680×600×1000mm
Head Mold	3 sets (Large, Medium and Small)
Power Supply	AC220V 50HZ 650W
Weight	50kg
Standards	EN149-2009 section 7.15, 8.3.4, 8.9, EN 13274-3, GB 19083, GB 2626, GB/T 32610, NIOSH 42 CFR Part 84, JIS/T 8151
