Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-RA08B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Keyword: | Face Mask Leakage Tester | Standards: | EN149 |
|---|---|---|---|
| Type: | Mask Test Equipment | Working Temperature: | (20±5)℃ |
| Humidity: | ≤60% | After-sales: | Installation And Training Service |
| High Light: | GB 19083 Masks Leakage Tester,Anti Corrosion Masks Leakage Tester |
||
Application:
This mask tester is to test the particulate leakage rate (TIL & IL) of mask, full face mask, breathing apparatus and gas mask.
Standards:
BS EN149 8.5, TAJ 1001 PM, GB 2626, GB 2890

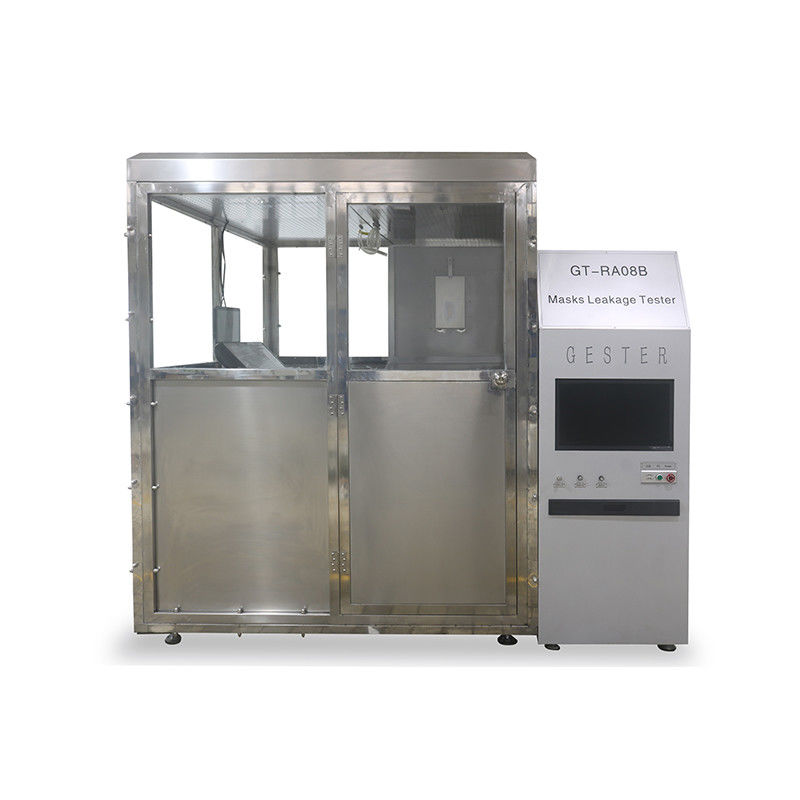

1.Masks Leakage Tester Test chamber is made of glass
2.Masks Leakage Tester: Using the stainless steel for frame
3.Protective Mask Leakage Tester: Using flame photometer
| Model | GT-RA08B-1 |
| Test aerosol | NaCl |
| Aerosol concentration detector | Flame photometer (2sets) |
| NaCl aerosol generator | Particle concentration: 4mg/m³～12mg/m³ |
| Aerodynamics size distribution of particle: approx 0.02～2um | |
| Mass median diameter: approx 0.6um | |
| Aerosol occurrence amount | ≥ 100L/min |
| Sampling pump adjust range | 0.50～4L/min |
| Particle sampling flow | 1～2L/min |
| Aerosol concentration detector dynamic range | 0.001～200mg/m³, accuracy 1％, response time ≤500ms |
| Power requirement | 1phase 220V 50Hz, 2KW |
| Air requirement | 0.5MPa, 120L/min |
| Dimension | Outer size of testing room: 2000mm×1600mm×2600mm(L×W×H) |
| Control cabinet: 880mm×520mm×1400mm (L×W×H) |
Accessories:
| Standard accessories | 2sets | Flame photometer |
| 1set | NaCl aerosol generator |
