DIN 53359 Low Temperature Flex Crack Tester

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE , ISO
Model Number:	GT-KC11

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month

Get Best Price Contact Now

Application:	Leather Upper Materials, Plastic Sheet	Product Name:	Flex Cracking Tester
Service:	Online Support, Installation And Training	Type:	Low Temperature Flex Cracking Tester
Warranty Period:	1 Year
High Light:	DIN 53359 crack tester , Low Temperature crack tester , DIN 53359 cracking tester

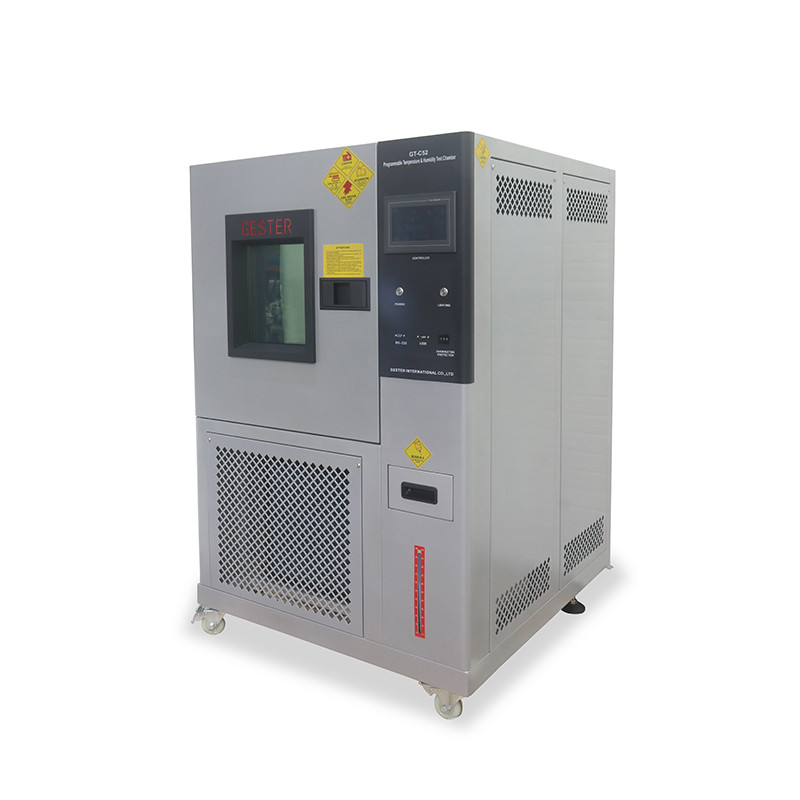

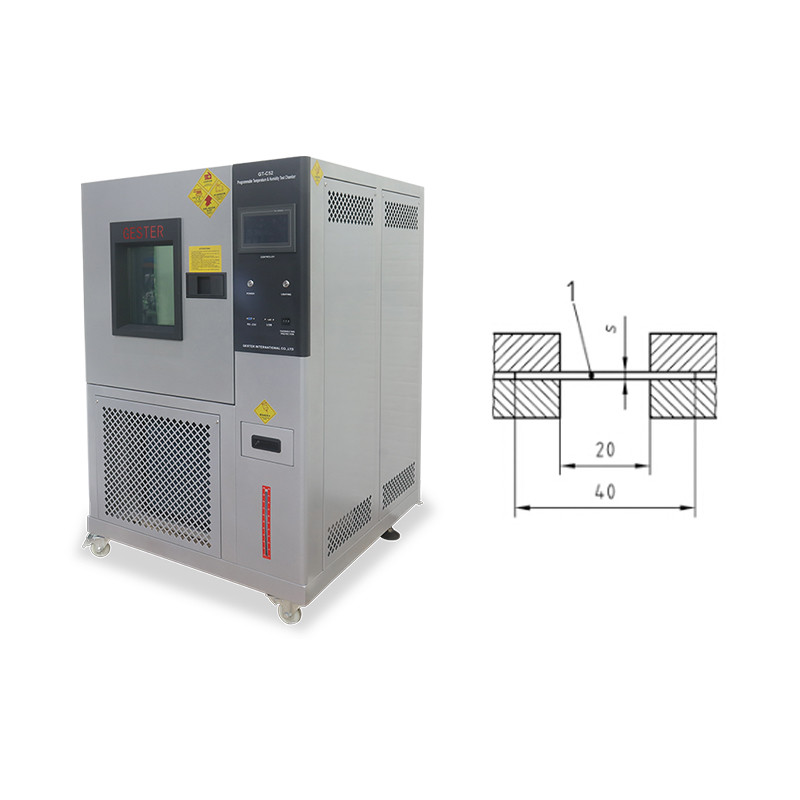

DIN 53359 Low Temperature Flex Cracking Tester GT-KC11

Product Introduction

Application:

This Flex Cracking Tester is used to assess the flex cracking of flexible plastic sheet materials when subjected to repetitive flexing under low Temperature.

Standards:

DIN 53359:2006

Low Temperature Flex Cracking Tester Feature

Materials of outer chamber: 2mm Double-sided color coated steel with power coated surface.
Materials of inner chamber: using SUS304 stainless steel, seamless welded. Beside, the outer structure of the inner chamber is reinforced with 10mm steel plates to meet the structural strength requirements of the bending test.
Low Temperature Flex Cracking Tester With vacuum glass observation window, more effecitive to observe the testing situation.
Temperation control: adopt 7inch color touch screen with Chinese and English version, easy to operate.
Low Temperature Flex Cracking Tester Equipped with 2 sets of mechanical compressor, two-stage compression refrigeration cycle can quick cooling up to specified inner temperature in the case of various fixture groips.
The flexing system has separate controller with function of power off memory and automatical stop when test done.
All the testing fixtures are made of SUS304 stainless steel or aluminum, have a good corrosion resistance and anti-rust property.

Low Temperature Flex Cracking Tester Key Specifications

Model	GT-KC11
Position	4 pcs
Test Speed	200 flexes per minute
Clamp stroke	0 mm to 20 mm (can be adjusted)
Control System	Programmable Microprocessor Control
Testing Temperature Range	-40~100℃
Testing Chamber Size	100L
Power Supply	1∮AC220V 50/60HZ
Dimensions	100X146X104cm
Weight	200kg
Standards	DIN 53359:2006
