Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-C26A |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Testing Range: | 500pa-200kpa | Power Supply: | AC 220V 50/60HZ |
---|---|---|---|
Application: | Canvas,Cotton,Geotextile,Hood Fabric | Specimen Test Area: | 100cm2, Or 7.8cm2 (Option) |
Weight: | 60 Kg | Warranty Period: | 1 Year |
High Light: | DIN53886 Hydrostatic Head Tester,Hydrostatic Head Tester 220V,DIN53886 Hydrostatic Test Equipment |
Application
Digital Hydrostatic Tester is used to testing the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.
Feature
Key Specifications
Model | GT-C26A |
Testing range | 500pa-200kpa |
Water pressure increase rate | 1kpa-30kpa |
Accuracy | 0.2%F.S |
Specimen test area | 100cm2, or 7.8cm2 (Option) |
Testing mode | Supercharge method, leaking method (set the pressure and time) |
Testing unit | pa , mmHg , cmH2O |
Power supply | AC 220V 50/60HZ |
Dimension | 600 x 450 x 640mm (L x W x H) |
Weight | 60 kg |
Accessories
Standard accessories | 1Set | 100cm2 testing sets |
1Set | Calibration plate | |
2pcs | Rubber ring | |
1pc | Power line | |
Optional accessories | Optional | Fixtures of other testing range |
Standards
AATCC 127 Option 2, ISO 811, ISO 1420, GB/T4744, FZT01004 , DIN53886 , JIS L1092-7.1.1, EN20811, EN 13726-3 |

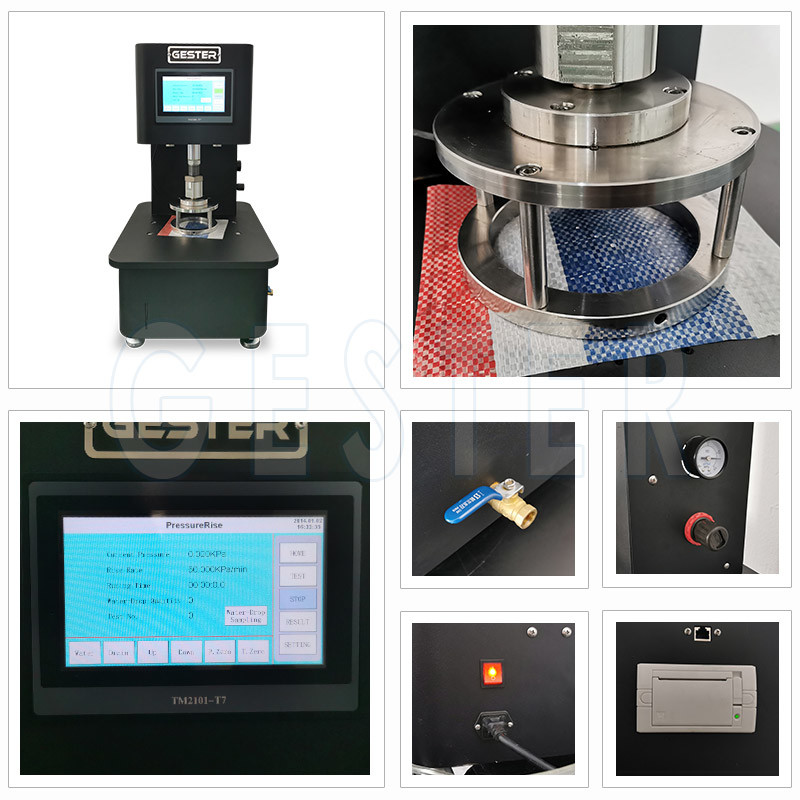

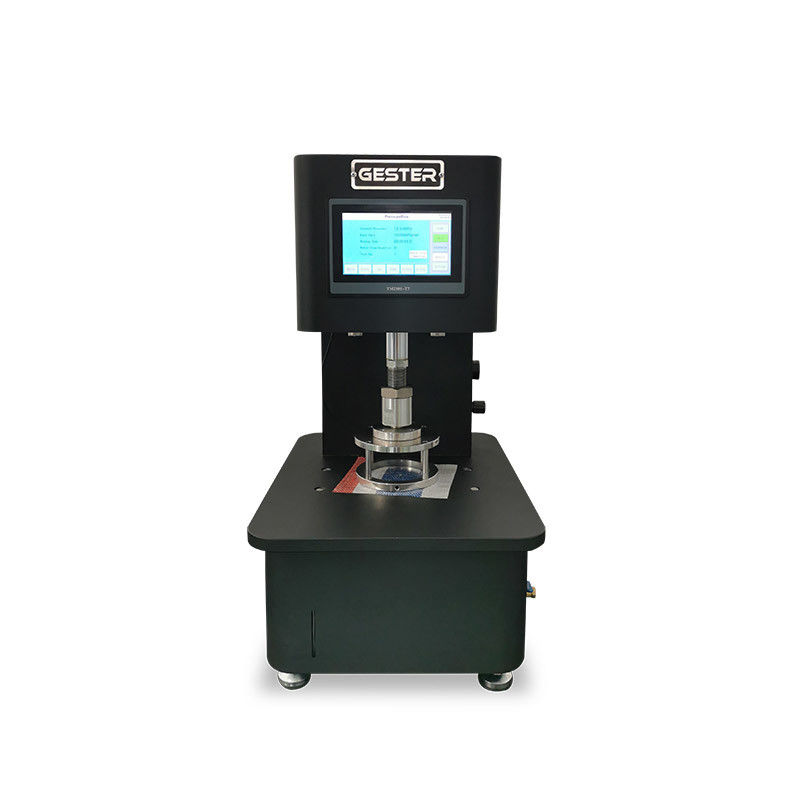

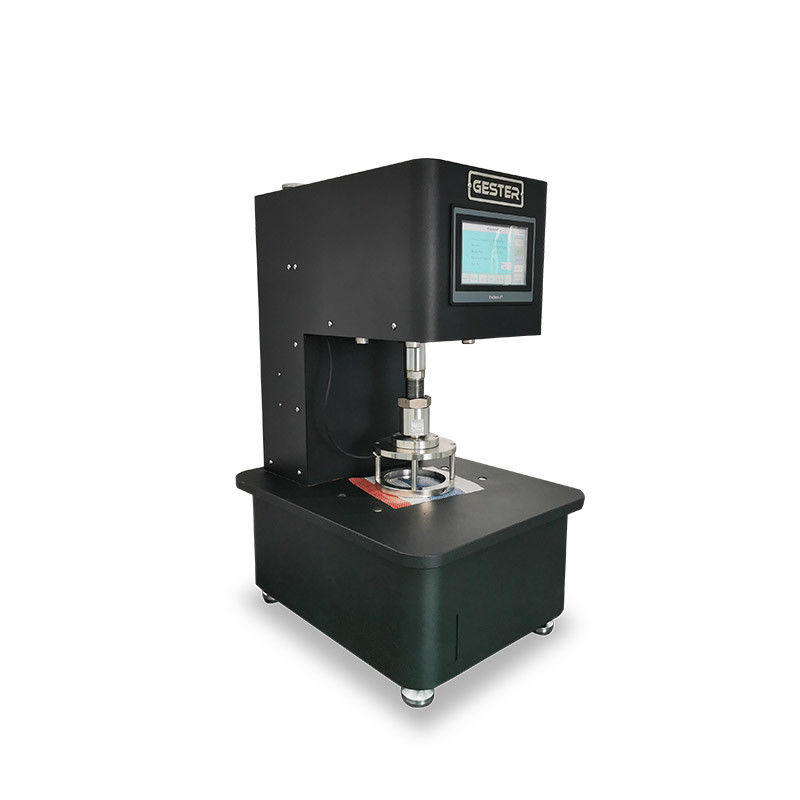

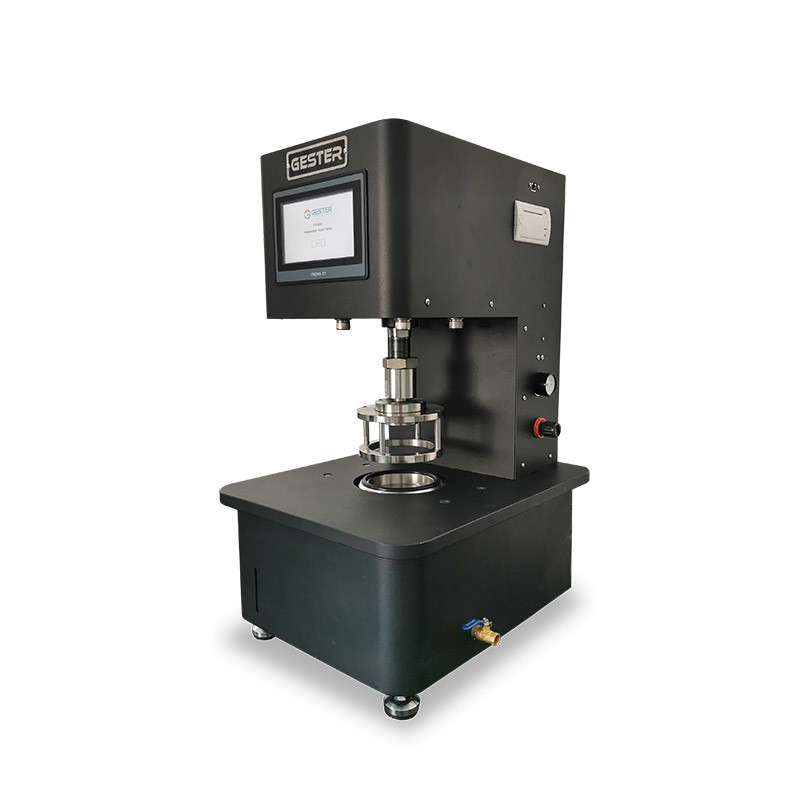

Product Picture
