Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-N23 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Spring Tension: | 90 Degree | Number Of Teeth: | 84 Pcs |
|---|---|---|---|
| Specification: | (4309*285*300)mm | Certificate: | CE, ISO |
| Power: | AC220V,50Hz | Product Name: | CMT CCT Corrugated Concora Medium Fluter Tester |
| Keyword: | CMT CCT Corrugated Concora Medium Fluter Tester | Standard Tooth Type: | A Type Tooth |
| Dimension: | 564mm*377mm*330mm | Advantage: | Factory Price |
| High Light: | digital cmt tester,corrugated cmt tester,concora cmt tester |
||
CMT CCT Corrugated Concora Medium Fluter Tester
Application
Corrugating Medium Flute Tester is used to test the flat compression and vertical compression strength of corrugating medium after laboratory fluting corrugating medium. This tester is specially used to make standard sample for flat compressive strength test and vertical compressive strength test of corrugating medium - make standard corrugating waveform(the corrugating medium after laboratory fluting). After corrugated, use full automatic or micro-computer compression tester to determinate flat and compressive strength of corrugating medium. It is comply with standard of QB/T 1061, GB/T2679.6, ISO7263 and so on. This tester is widely use in paper mills, scientific research, quality inspection institutions and other industrial of corrugated paper.
Standards
QB/T 1061, GB/T2679.6, ISO7263, TAPPI T 809 om-17
Key Specification
|
Model
|
GT-N23 |
|
Working speed
|
4.5r/min, error<0.5r/min |
|
Temperature display resolution
|
1℃ |
|
Temperature measurement accuracy
|
0.5 grade ± 1 word |
|
Adjustable temperature range
|
room temperature ~200℃ |
| Working pressure adjustable range | (49~180)N, working pressure should be consistent with the actual working pressure of flute roller, error should not exceed ±10% |
|
Standard working temperature
|
175℃, the actual error should not exceed 8 ℃ at 177 ℃ |
|
Safety temperature
|
After working time ≥ 2h, the shell temperature shall not exceed 50°C |
|
Heating mechanism
|
the insulation resistance of the hot plate should be > 5m Ω |
|
Real-time monitoring |
With monitoring window (155×338mm), it can be opened at any time to monitor the real-time working state |
|
Ambient temperature
|
20 ± 10 ℃; no vibration, without flammable and corrosive gas |
|
Standard tooth type
|
A type tooth |
|
External diameter of flute roller
|
228.5±0.5mm |
|
Thickness of flute roller
|
16 ± 1 mm |
|
Number of teeth
|
84 pcs |
|
Arc radius of crest of thread
|
R l.5 ± 0.1mm |
|
Arc radius of tooth valley
|
R 2.0 ± 0.1mm |
|
Height of whole tooth
|
4.75 ± 0.05 mm |
|
Power supply environment
|
the fluctuation range of power supply voltage should not exceed 10% of the rated voltage |
|
The worktable is stable and flat without vibration. Angle |
90 degree |
|
Spring tension
|
100N |
|
Dimension(L×W×H)
|
≈ 564mm×377mm×330mm |
|
Power
|
AC220V,50Hz |

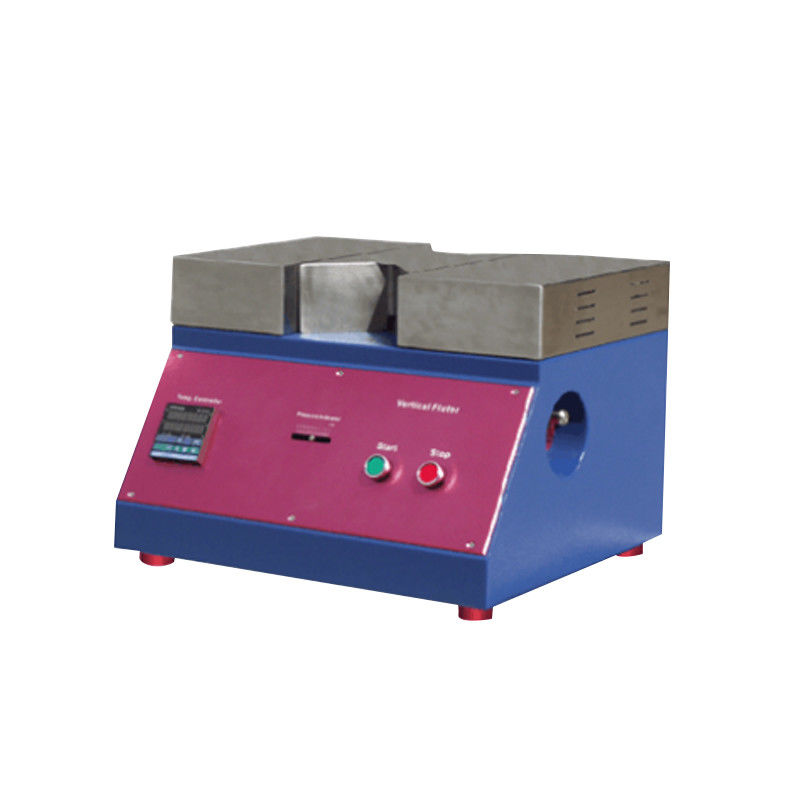

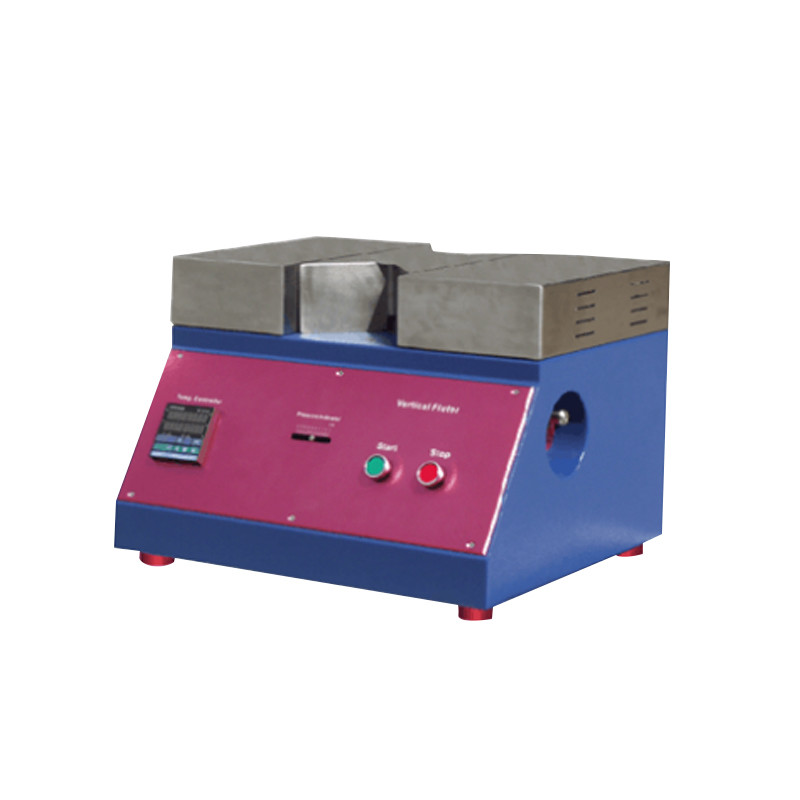

Product Image
