Automatic Open Cam 18 - 35OZ Paper Bucket Making Machine

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	HEY100-145

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 set/month

Get Best Price Contact Now

Key Word:	Paper Bucket Making Machine	Warranty:	1 Year
Certificate:	CE, ISO	Size:	18-35OZ
Speed:	50-65pc/min	Electricity:	380V 3 Phases
After-sales Service Provided:	Online Support, Video Technical Support	Raw Material:	180-350gsm, Single Or Double PE Coating Paper
High Light:	35OZ Paper Bucket Making Machine , 18OZ Paper Bucket Making Machine , 35OZ Paper Cup Making Machine

Automatic 18-35OZ Recycle Paper Bucket Making Machine

Product Application

Open Cam Medium Paper Cup Machine is mainly for the production of variety of paper cups.

Product Features

Paper cup bottom sealing by Leister CERAMIC hot air system, BRAND BANKO.
It is easy to make cups of different size by changing moulds.
Cup side sealing by ultrasonic.
Double PE coating paper cups for cold drink as well as hot drink.
With our unique original designed bottom knurling system, single shaft, korea type, this ensures the low leaking ratio and high quality of paper cups.
With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
Every cam will be harden to ensure it can run for a long long time.
Machine is designed with double turning plate
Equipped with automatic cup collecting stacking and counting system.
Bottom paper we have a special pre-feeding system, so the bottom paper feeding is “0” waste.

Product Parameter

Paper Cup Size RANGE	18~~35OZ
Speed	50~~65pc/min
Paper cup top diameter	Min 100mm ~~Max 145mm
Paper cup bottom diameter	Min 90mm~~Max 115mm
Paper cup height	Min 50mm~~Max 115mm
Raw material	180~~350gsm, single or double PE coating paper
General power	11 Kw
Electricity	380V 3 phases
Air consumption	0.2 cbm/min
Weight	3000 kg

Electrical Configuration

Inverter

Schneider, France

Relay

Schneider, France

Heating elements

Leister, Switzerland,

Product Display

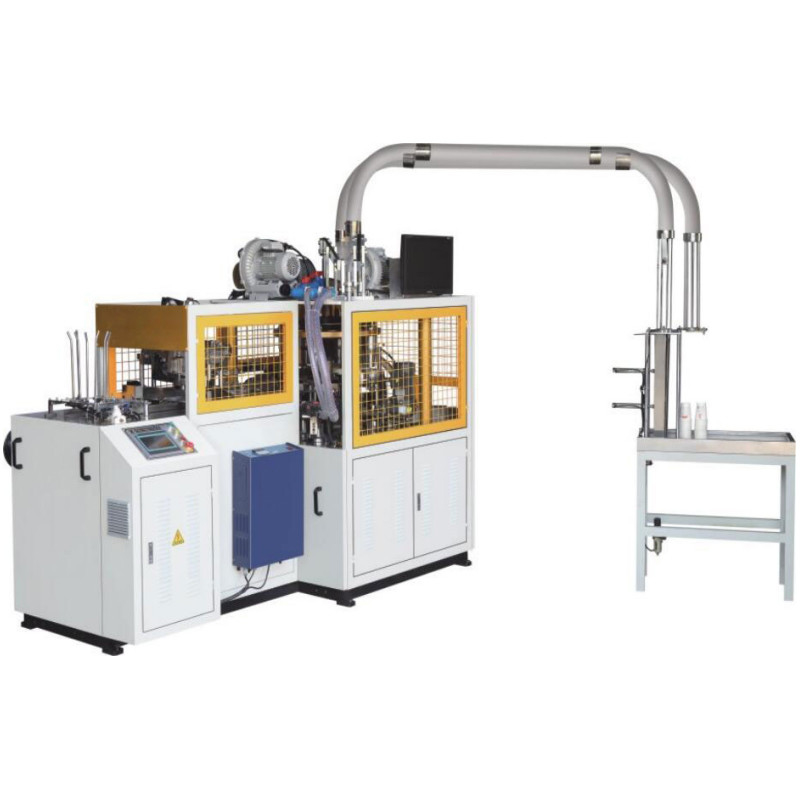

Automatic Open Cam 18 - 35OZ Paper Bucket Making Machine 0
