Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | HEY06 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Automatic Pressure Air Forming Plastic PP PS PVC 3 Stations Large Thermoforming Making Machine | Keyword: | Automatic Pressure Air Forming Machine |
|---|---|---|---|
| Function: | Automation | Suitable Material: | Ps Pp Pet |
| Certificate: | CE, ISO | Color: | Black And White |
| Power Supply: | 3 Phase 4 Line 380V50Hz | Max. Power Of Whole Machine (kw): | 150 |
| Cutting Force (ton): | 40 | Dry Speed (cycle/min): | Dry Speed (cycle/min) |
| Price: | Factory Price | ||
| High Light: | Auto Pressure plastic thermoformer,Air Forming plastic thermoformer,plastic thermoformer |
||
Automatic Pressure Air Forming Plastic PP PS PVC 3 Stations
Large Thermoforming Making Machine
Product Introduction
This Pressure Thermoforming Machine adopts the method of laminating heating, adopts the technology of moving film punching, no secondary pollution, high sanitary level, high production safety coefficient, saving labor, the equipment set positive pressure/negative pressure/positive and negative pressure automatic molding, punching, cutting, manipulator grasp stack counting in a production line to complete continuously, automatic conveying products.
Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Upper and down mould forming.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, four sections heating.
6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
8. Products be stacked downward.
9. Data memorization function.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
Plastic Thermoforming Machine Key Specification
| Forming Area | 850x780mm |
| Max.Forming Depth | 150mm |
| Sheet thickness | 0.2-1.5mm |
| Work Efficiency | Max. 30 cycles/ Min |
| Air Pressure | 0.9mpa |
| Power Consumption | 50-70kw/h |
| Max. Sheet Width | 760mm |
| Suited Material | PP, PS, PET, PVC |
| Total Max. Power | 110 |
| Overall size(LxWxH)mm | 10040x2600x3200 |
| Total Weight (T) | 7 |

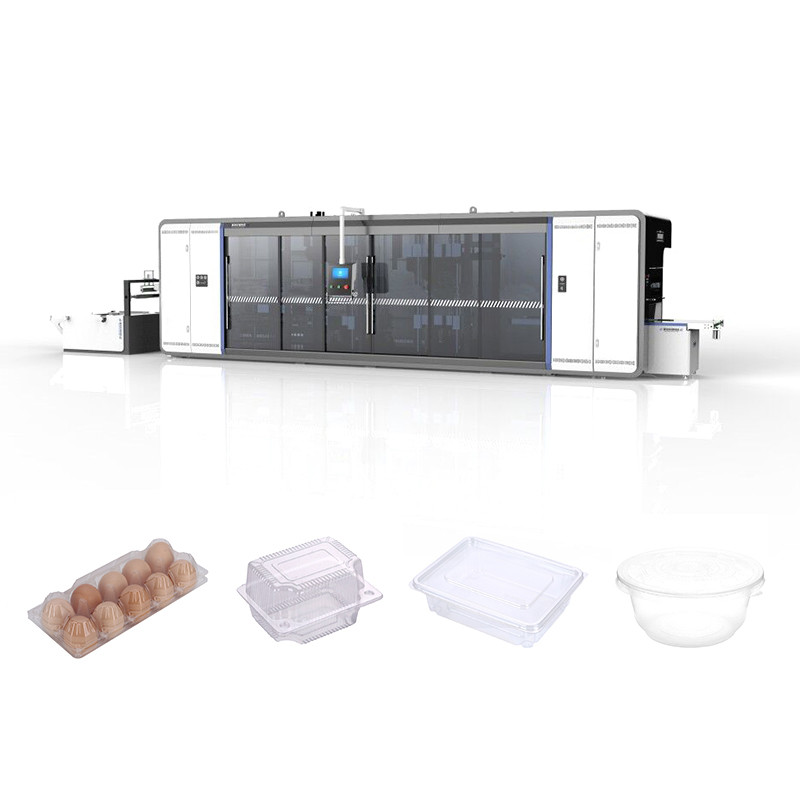

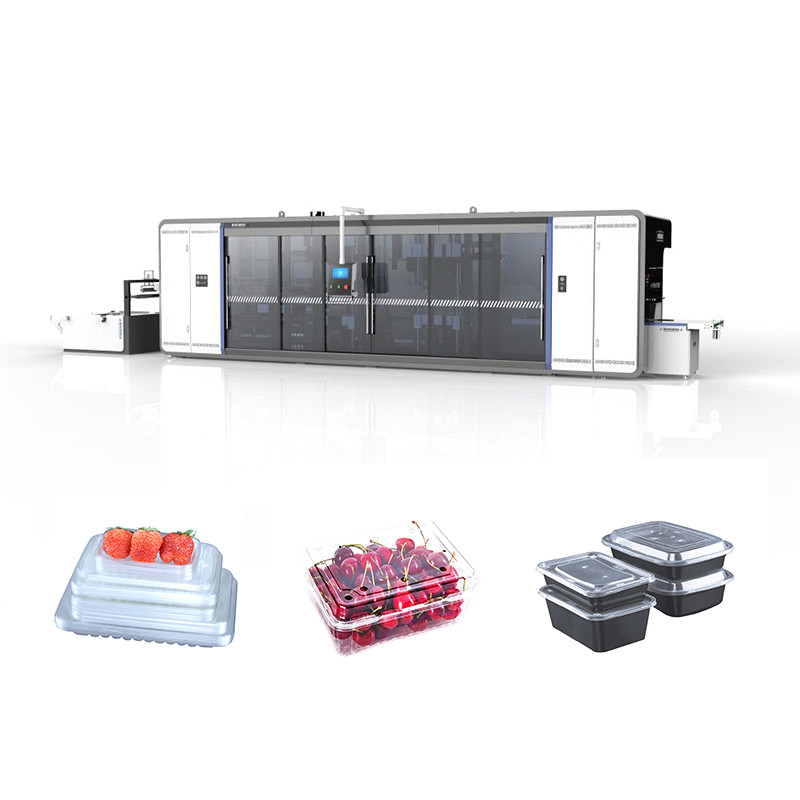

Product Image
