Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-C11B |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Usage: | Universal Testing Machine | Warranty: | 1 Year |
---|---|---|---|
Power: | Hydraulic | Range: | 2.00Mpa-10.00Mpa |
Items: | Test The Bursting Strength For Various Material | Incision Length: | 20+/-0.2mm |
High Light: | ASTM D1424 Elmendorf Tear Tester,Digital Elmendorf Tear Tester,Touch Screen Elmendorf Tearing Strength Tester |
Application
ASTM D1424 Digital Fabric Textile Elmendorf Tearing Strength Testeris designed for tearing resistance of textile, non-woven fabrics, paper, paper board, thin film, ventilation tape, metal sheet materials and etc.
Feature
l Advanced calculation methods make sure precision test & good repetition.
l Microcomputer system, can do auto test, calculate, analysis result, print test report.
l upload the test data.
l Humanity operation system, Chinese and English operation interface with easy & convenience methods.
l Can look up all the datum & statistical result in mainframe freely.
l Test unit can convention between N, gf, cN and ibs, suitable for differents standards requirements automatically.
l Pneumatic sample grips and pendulum bob released to make sure equal clamping force.
l Cut sample automatically, making sure same shape of notch, reducing operation strength.
Standards
Textile: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
Paper: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,
SNV 198482, TAPPI T414, UNI 6444
Plastic: GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2
Non-woven: ASTMD5734
Key Specification for Desk and Bed
Model | GT-C11B |
Control mode | Touch screen |
Range of tearing force | 1600CN, 3200CN, 4800CN, 6400CN, |
8000CN, 9600CN,11200CN, 12800CN | |
Accuracy | ≤±0.2%F·S |
Incision length | 20+/-0.2mm |
Rip length | 43mm |
Sample clamping methods | Pneumatic clamp |
Power supply | AC 220V 50/60HZ 100W |
Dimensions | 490 x 430 x 680mm (L x W x H) |
Weight | 50kg |
Standard accessories | 1pc | Load A |
1pc | Load B | |
3pcs | Load C | |
1pc | Sample template | |
1pc | English operation software | |
1pc | Cable connect with PC |

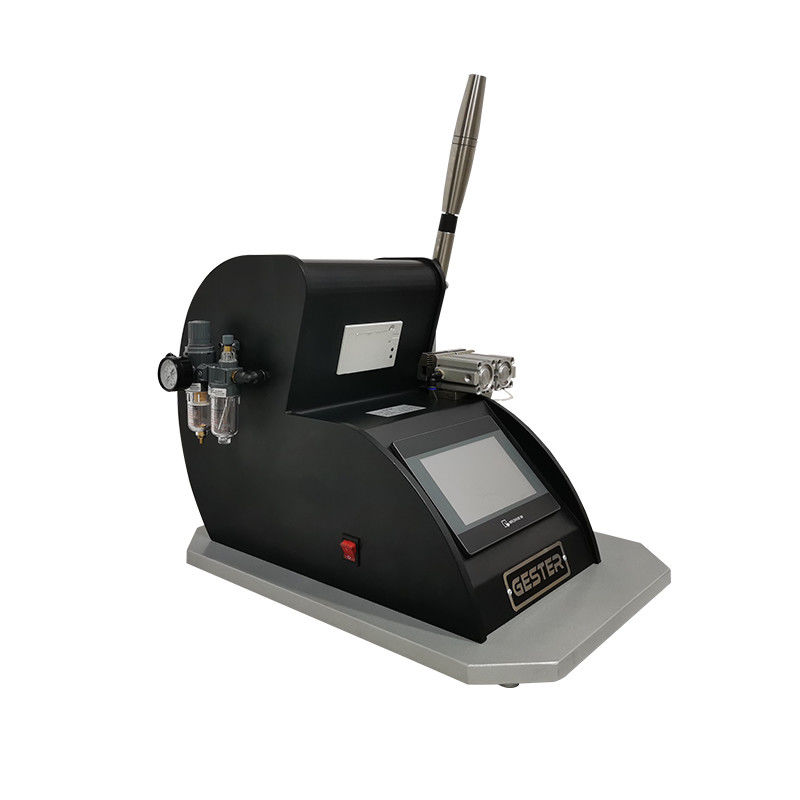

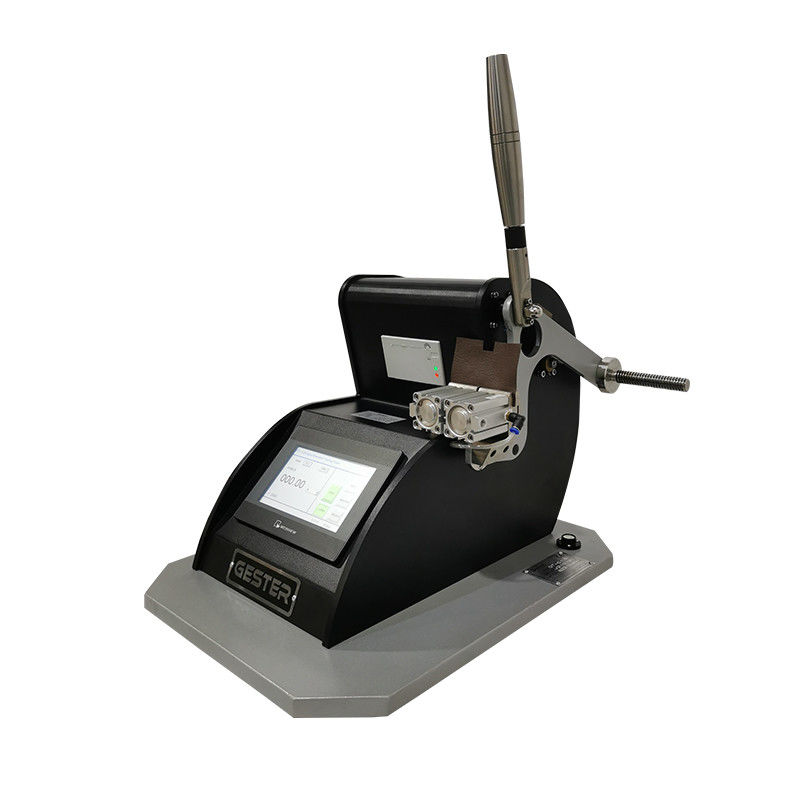

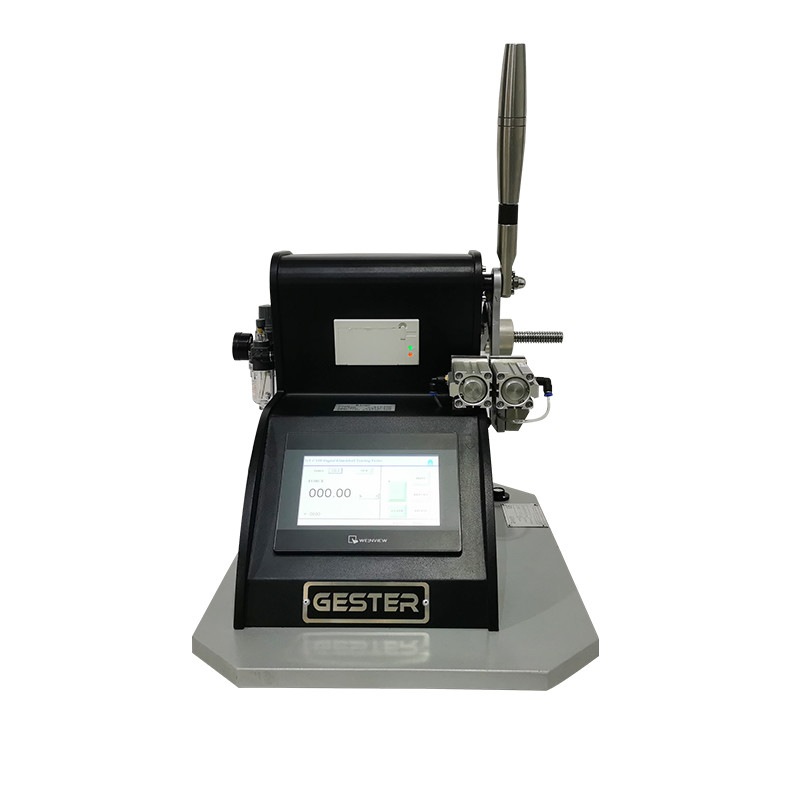

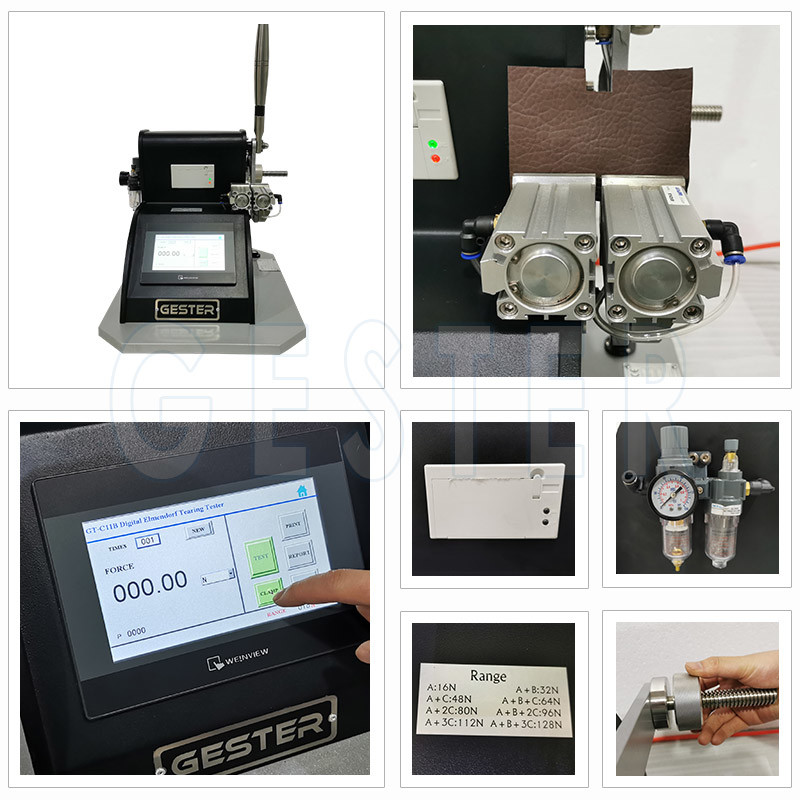

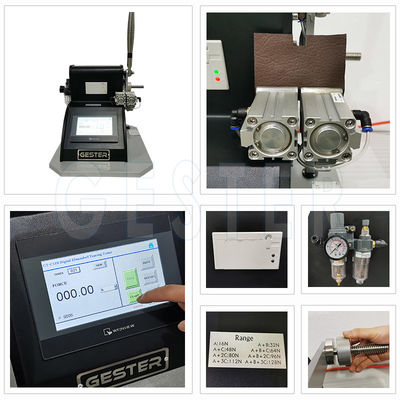

Product Image
