Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | GT-KD02 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Product Name: | Light Discoloration (UV) Tester | Price: | Factory Price |
---|---|---|---|
Product: | Product | Warranty: | 1 Year |
Temperature Resolution: | 0.1degree | Light Discoloration (UV) Tester: | Light Discoloration (UV) Testing Chamber |
Lamp Power: | 300W | Lamp Irradiance: | ( 25 ( 0.4) W/M2 |
Lamp Service Life: | 1000h | Temp. Range: | Rt ~ 120degree |
High Light: | ASTM-D1148 Accelerated Weathering Tester,HG/T 3689 Accelerated Weathering Tester,300W UV Accelerated Weathering Tester |
Accelerated Weathering UV Light Discoloration Tester For Plastics
Application
UV Light Discoloration Tester is to test the resistance to discoloration of shoes materials.Such as white and light color upper materials, sole materials, leather, PU, fabric etc. To assess the defect of products the radiation from sun in normal use and high temperature of container during the transport.
This machine also can be used as the aging tester and dying oven, multi-use of one machine.
Principle
Simulated the circumstances of sunshine radiation and heat, after a period of testing, checking the yellowing resistance of sample. It is advisable to use grey scale for reference to assess the level of yellowing. Since used UV light of 300W, the testing can be completed in a short time.
Key Specifcation
Light source | OSRAM fluorescent UV lamp |
Lamp power | 300W |
Lamp Irradiance | ( 25 ( 0.4) W/m2 |

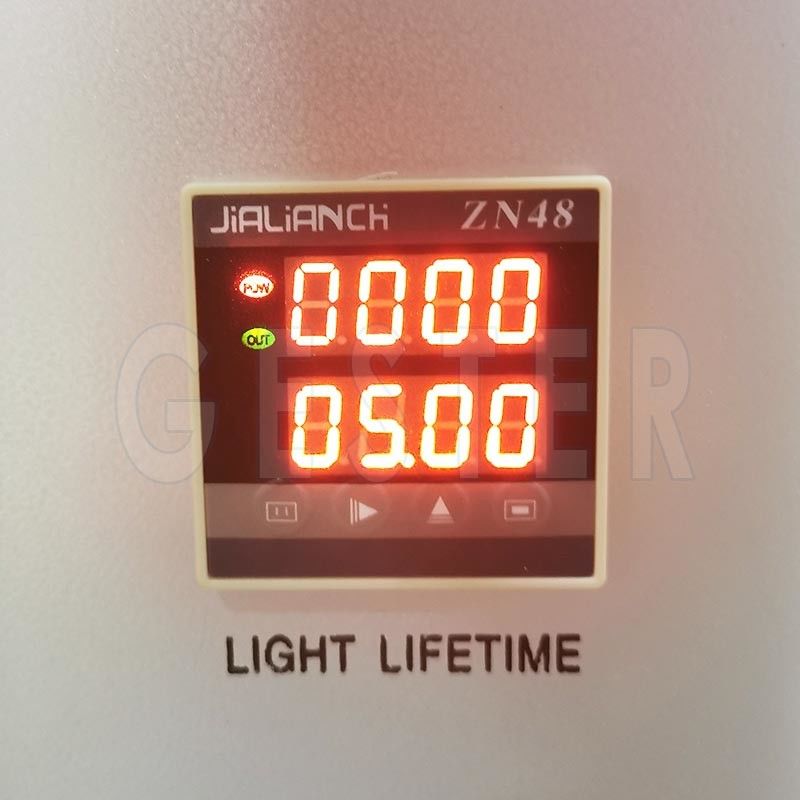

Lamp service life | 1000h |
Temp. range | RT ~ 120℃ |
Temperature resolution | 0.1℃ |
Heating method | Hot-air circulation |
Timer | LED, 0 - 999 hr |
Turntable diameter | 45 cm |
Revolutions | 3 rpm |
Interior chamber | 50 x 50 x 60 cm |
Power supply | AC 220V 50/60HZ |
Dimensions(W x D x H) | 88 x 70 x 156 cm |
Weight | 140 kg |
Standards | ASTM-D1148 HG/T 3689 |
Accessories
Standard accessories
|
1pc | UV lamp |
1pc | Turntable | |
2pcs | Pallet | |
1pc | Power line |

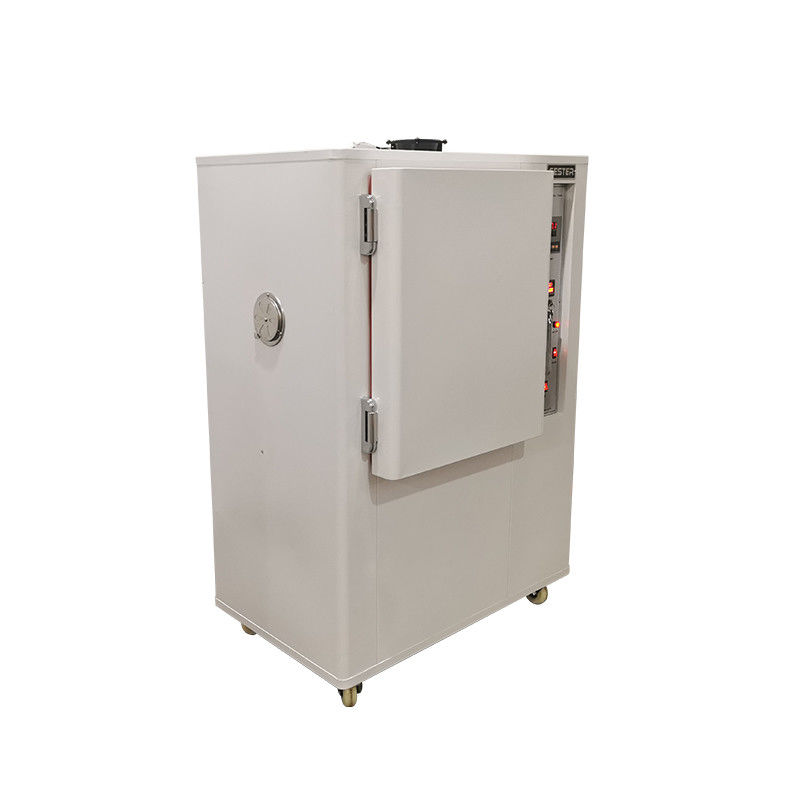

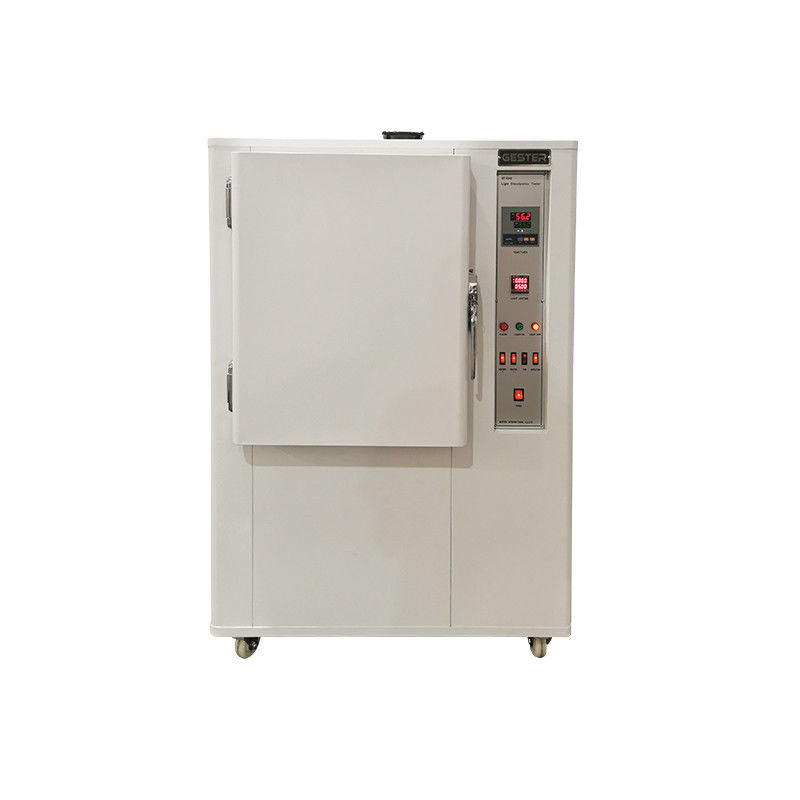

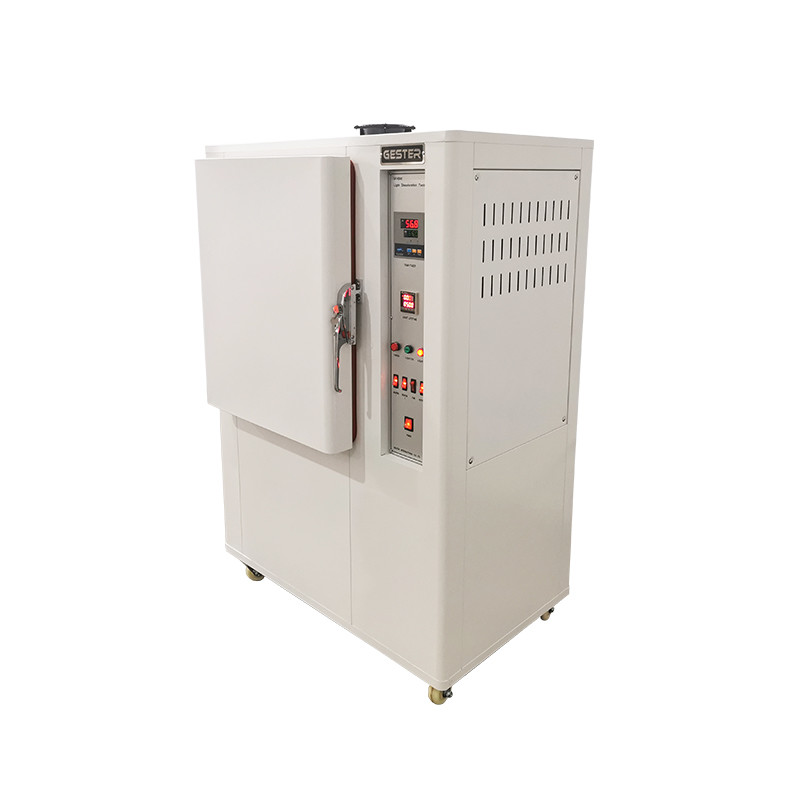

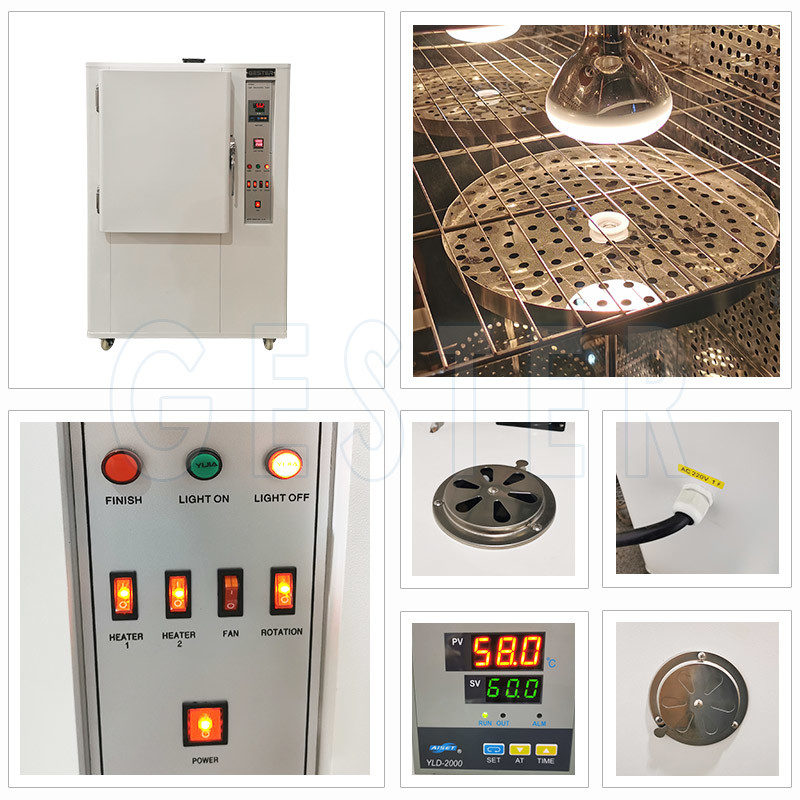

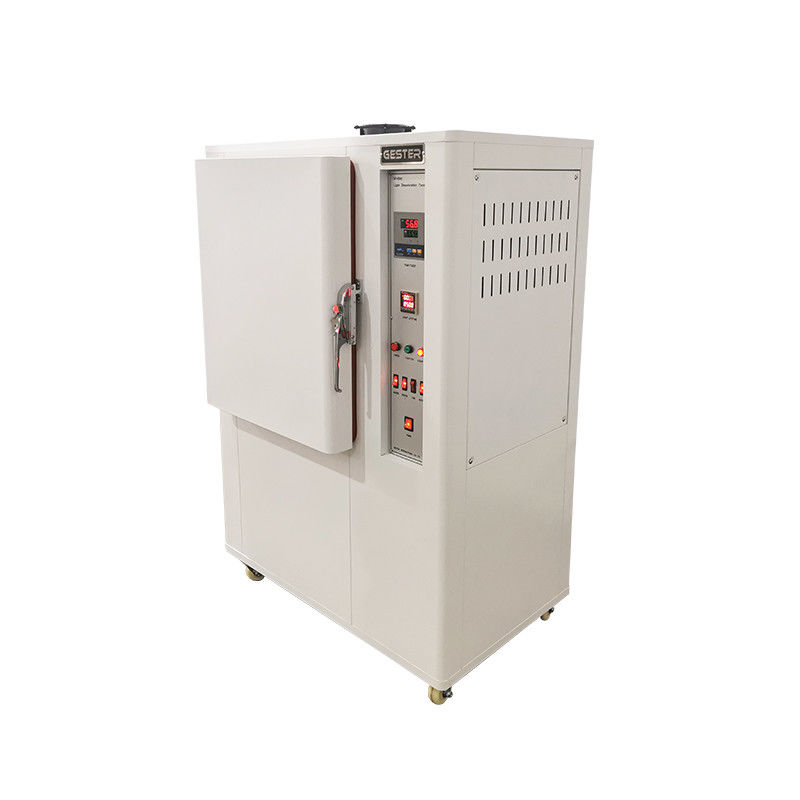

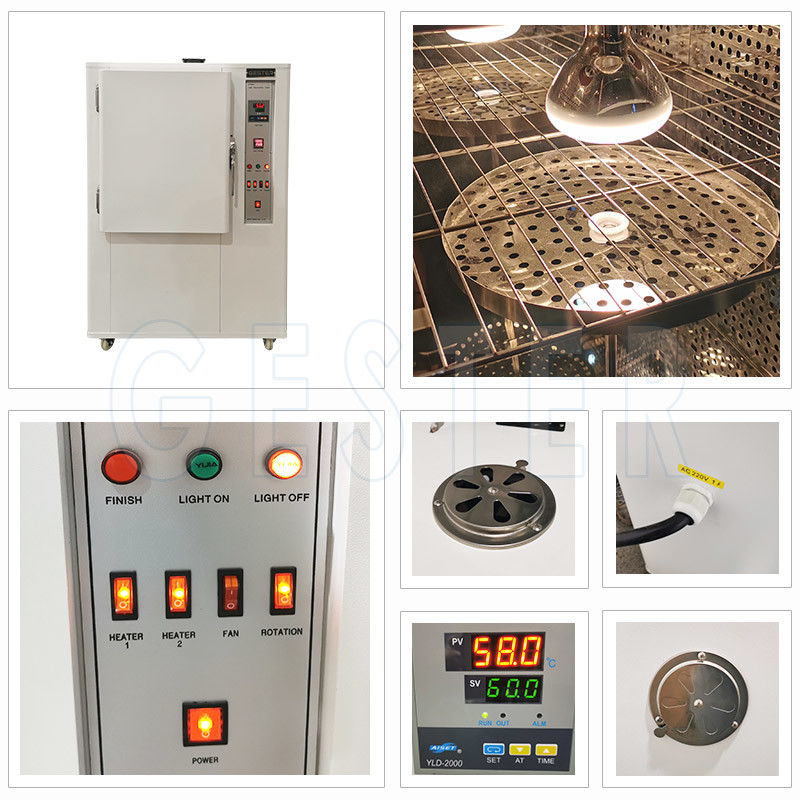

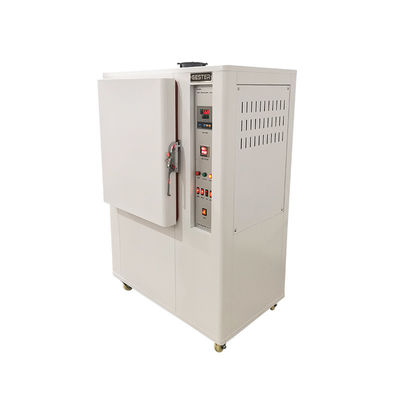

Product Image
