Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C33 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Impact Penetration Tester | Usage: | Resistance Of Fabrics To The Penetration Of Water By Impact |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 18kg |
| Power Supply: | 220V 50Hz | Service: | Installation And Training Service |
| High Light: | AATCC 42 Water Impact Penetration Tester,Fabric AATCC Water Impact Penetration Tester,AATCC 42 Impact Penetration Tester |
||
|

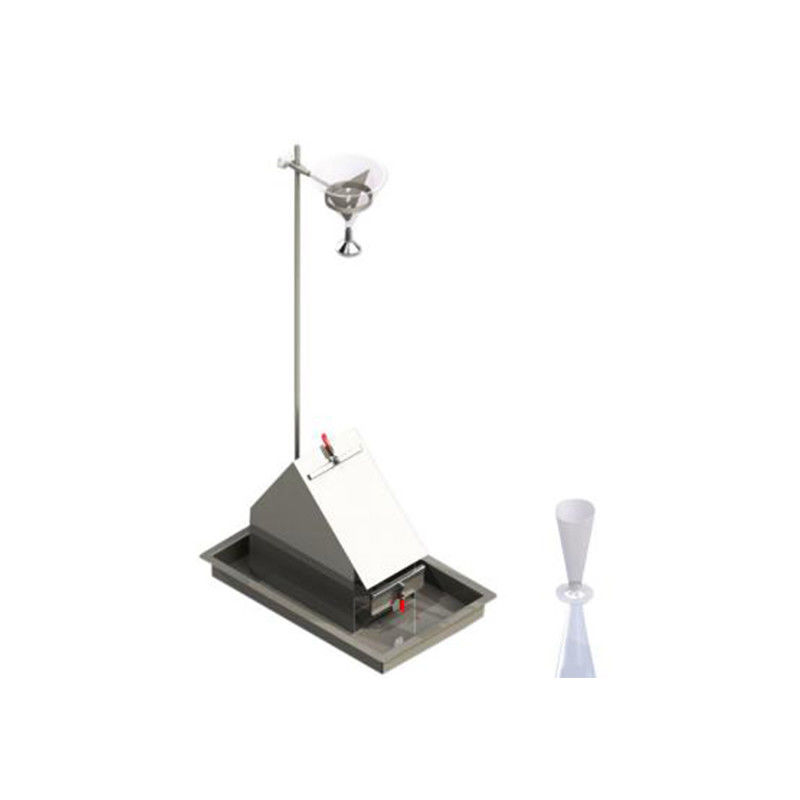

Application: This tester is applicable to any textile fabric, which may or may not have been given a water resistant or water-repellent finish.It measures the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration. water impact penetration tester is especially suitable for measuring the penetration resistance of garment fabrics. Standards: AATCC 42 |
A volume of water is allowed to spray against a taut surface of a test specimen backed by a weighed blotter. The blotter is then reweighed to determine water penetration and the specimen is classified accordingly.
|
Model |
GT-C33 |
|
Test water quantity |
500ml |
|
Distance between nozzle and center of specimen |
600mm |
|
The width of clamp |
152mm |
|
Specimen gradient |
45° |
|
Tensioning Clamp |
453.6g(1Lb) |
|
Nozzle |
Diameter: 56mm, Blowhole Diameter: 1mm, 25 blowholes |
|
Size of Specimen |
178×330mm |
|
Dimensions(L×W×H) |
34×54×108cm |
|
Weight |
18kg |
Accessories:
|
Standards accessories |
1pc
|
Measuring glass
|
|
1pc
|
Nozzle
|
|
|
1pc
|
Specimen clamp
|
|
|
Option Accessories |
Optional
|
Bibulous paper
|
|
Optional
|
Balance: 200g 0.1g
|
