| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-KA15 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Keyword: | Shoe Lining Leakproofness Tester | Service: | Perfect After-sales Service |
|---|---|---|---|
| Name: | Shoes Lining Seepage Tester | Advantage: | Factory Direct Sale |
| Type: | Footwear Testing Equipments | Warranty Period: | 1 Year |
| High Light: | GB/T 20991 Penetration Testing Machine,Shoe Lining Penetration Testing Machine,GB/T 20991 Footwear Testing Equipments |
||
|
Application: Shoe Lining Leakproofness Tester is used to To fast determine the waterproof resistance of rubber shoes and shoe inner liner. Standards: GB/T 20991 section 5.7, ISO 20344 -2020 section 5.7, AS/NZS 2210.2 section 5.7, ISO 8782-1, HG/T3664 |

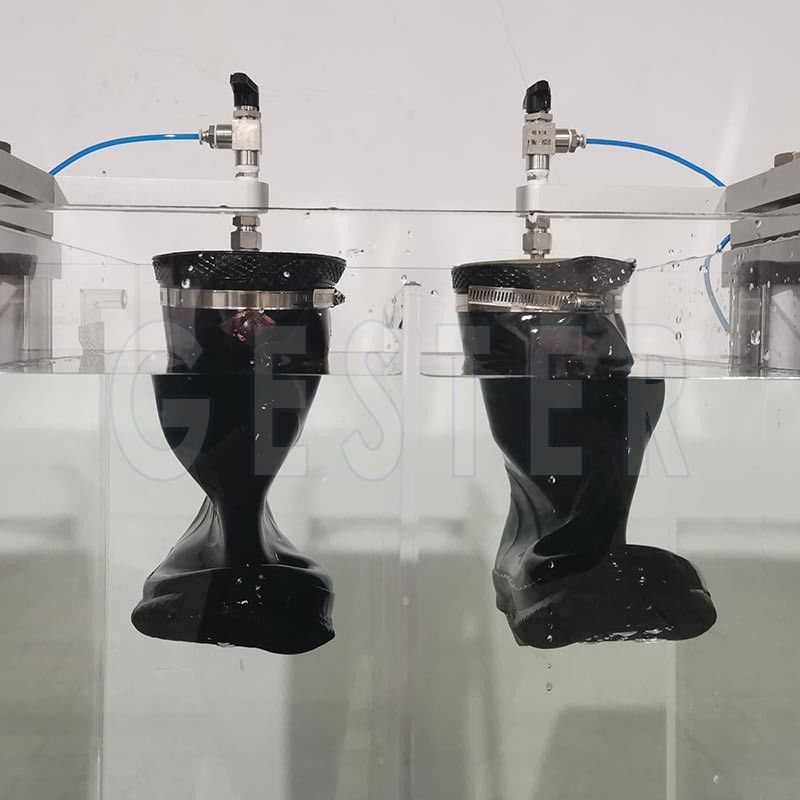

Using pneumatic fixture and sealing plating parts to put sample into deep water, and full it with constant air pressure. If any seepage, it will produce bubbles and fixture will rise to surface automatically with sample when it reaches set test times. It could be used for production line and detect production completely to control it waterproof.
|
Model |
GT-KA15 |
|
Test position |
2 pieces (4 pieces are also available) |
|
Clamp surface length |
220mm |
|
Clamp lifting range |
320mm |
|
Air pressure |
0-50KPa or specified |
|
Timer |
LED , 0-99999999 |
|
Power |
1∮AC 220V 50/60HZ 3A |
|
Dimensions |
125x55x155 cm |
|
Weight |
140 kg |
Accessories:
|
Standards accessories
|

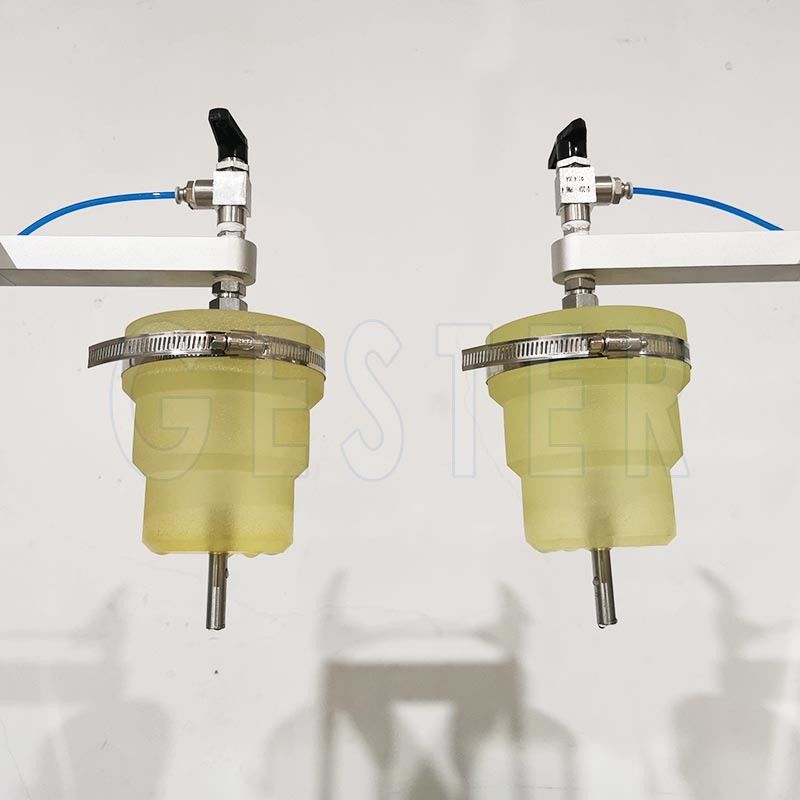

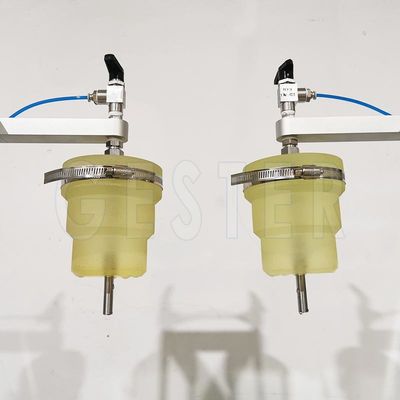

Sealing clamp |
1set |
|
Power line |
1pc |
|
|
Optional accessories |
GT-MA12A Air Compressor |
|
