2 Positions ASTM D3939 Textile Testing Equipment ICI Mace Snag Tester

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	GT-C17

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets/month

Get Best Price Contact Now

Power:	AC220V	Usage:	Snagging Resistance Of Heavyweight Fabrics
Product Name:	ICI Mace Snag Tester	Color:	White/Black
Type:	Textile Testing Equipment	Warranty Period:	1 Year
High Light:	ASTM D3939 ICI Mace Snag Tester , 2 Positions ICI Mace Snag Tester , ICI Mace Snagging Textile Testing Equipment

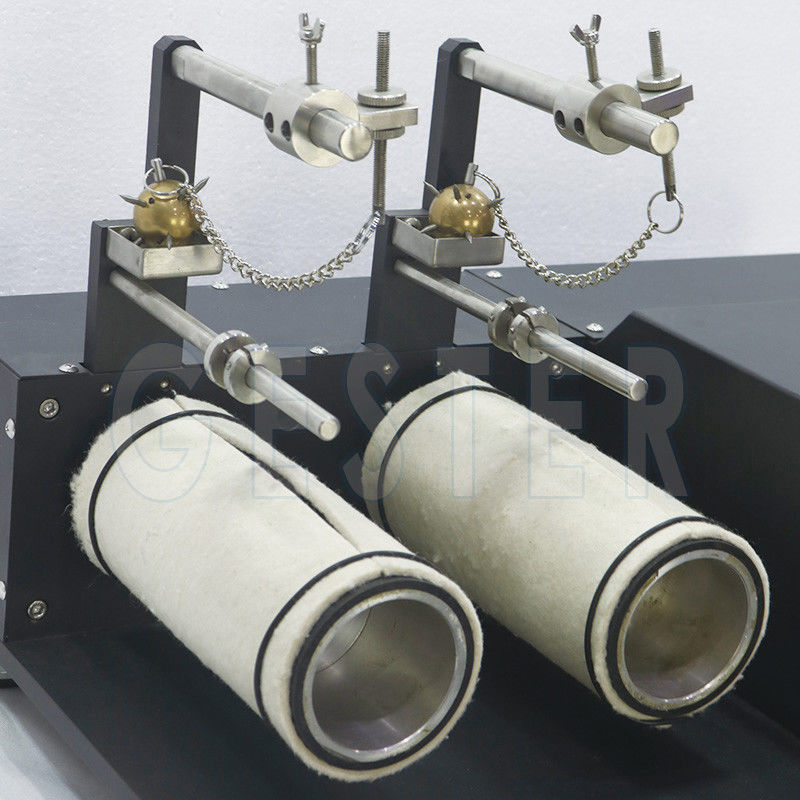

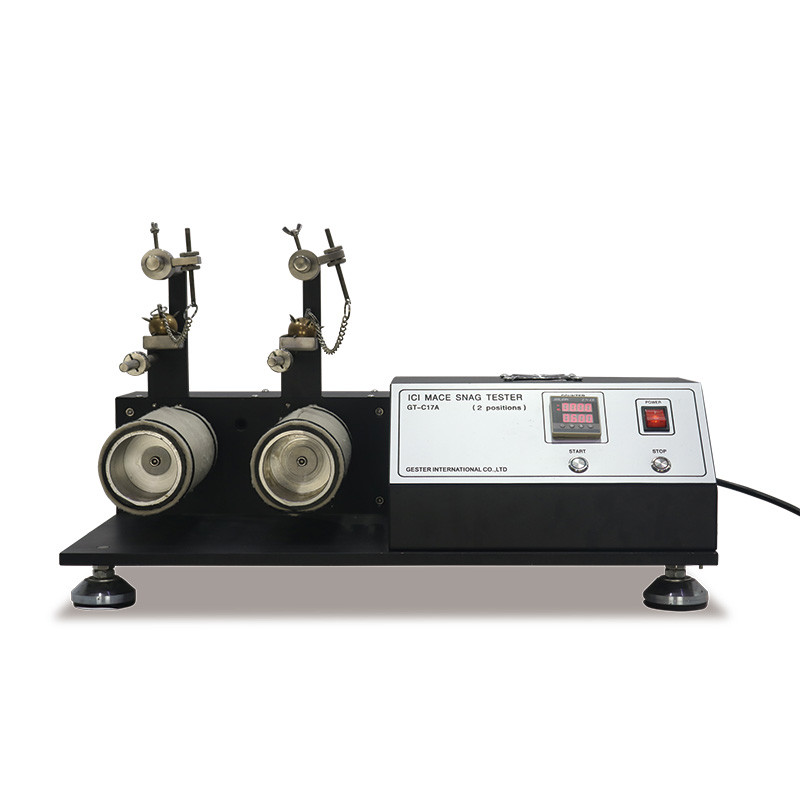

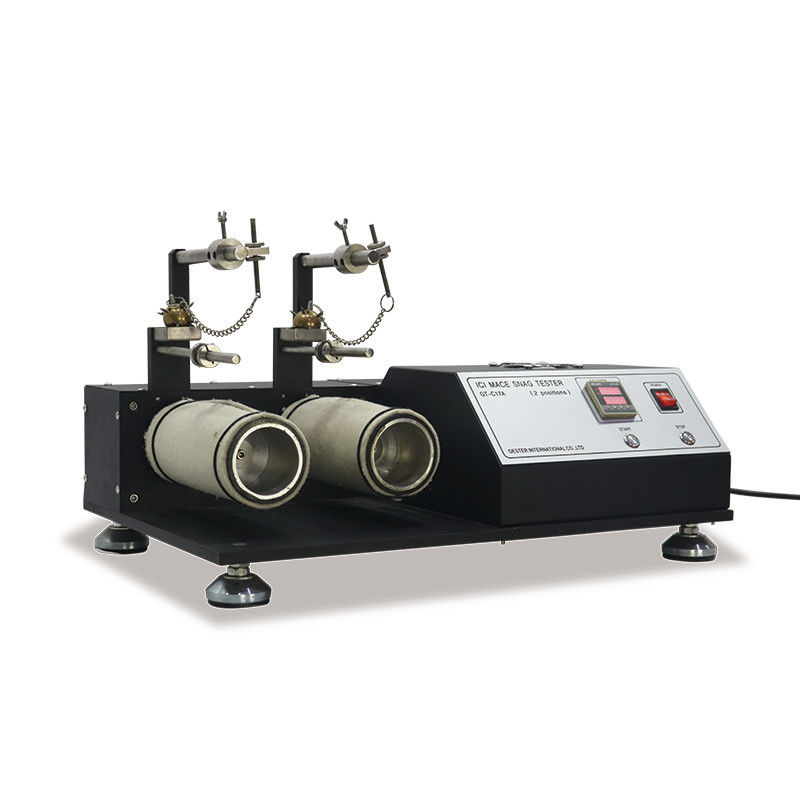

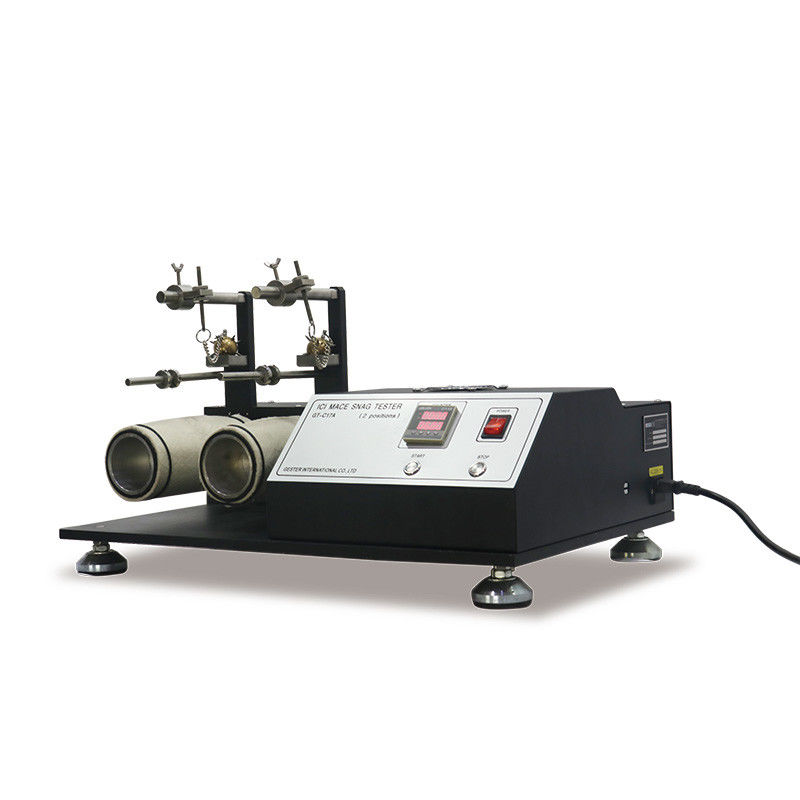

ICI Mace Snagging Resistance Tester

Product Introduction

Application:

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.

Standards:

ASTM D3939, GB 11407, JIS L 1058, VDA 230-220

Feature

Rotating cycle number can be pre-settable.
Stop automatically after getting the preset rotating cycles.
To ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel.
Length of chain is adjustable.

Key Specifications

Model	GT-C17A	GT-C17B
Working position	2	4
Speed	60rpm±2rpm
Testing cylinder	Φ82mm, Width: 210mm

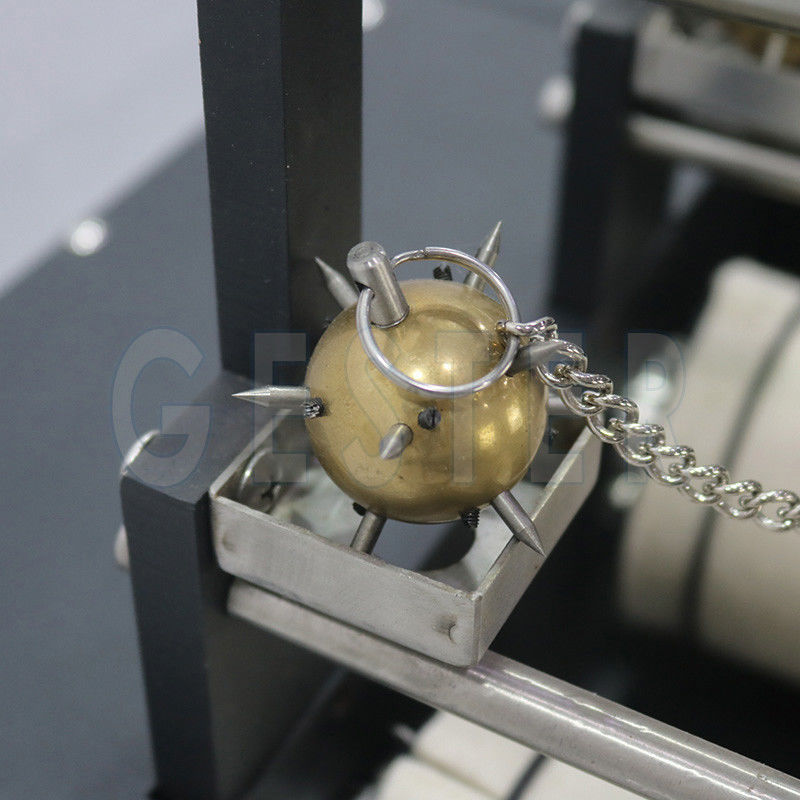

Mace ball	Weight: 160±10g, 11 maces
Mace	Length: 10±1mm, Tip radius: R0.13mm
Counter	0-99999
Felt	Thickness: 3～3.2mm; Width: 165±1mm
Distance between nail hammer and guide rod	45±1mm
Power supply	AC 220V 50/60HZ
Dimensions(LxWxH)	560 x 420 x 480mm	945x 420 x 480mm

Accessories:

Standard accessories	1pc/pos	Felt sleeves (2pcs for GT-C17A; 4pcs for GT-C17B)
	2pcs/pos	Rubber rings (4pcs for GT-C17A; 8pcs for GT-C17B)
	1pc	Power line
Optional accessories	Optional	Tungsten carbide maces
	Optional	Standard photographs
	Optional	GT-C78 pilling assessment box
