Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-KA16 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Power: | AC220V/50Hz | Usage: | Measure Bending Resistance Of Whole Shoes |
---|---|---|---|
Warranty: | 12 Months | Product Name: | Shoe Stiffness Testing Machine |
Application: | Shoes | Color: | Silver/Black |
Quality: | High,good | ||
Highlight: | 200 N Shoe Testing Machine,Bending Stiffness Shoe Testing Machine,200 N Bending Stiffness Tester |

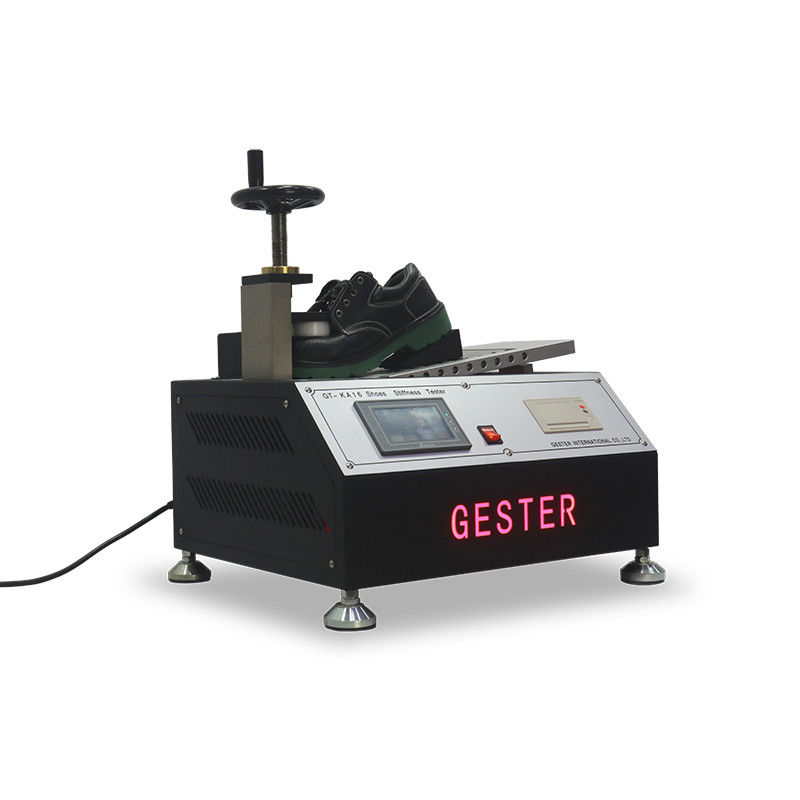

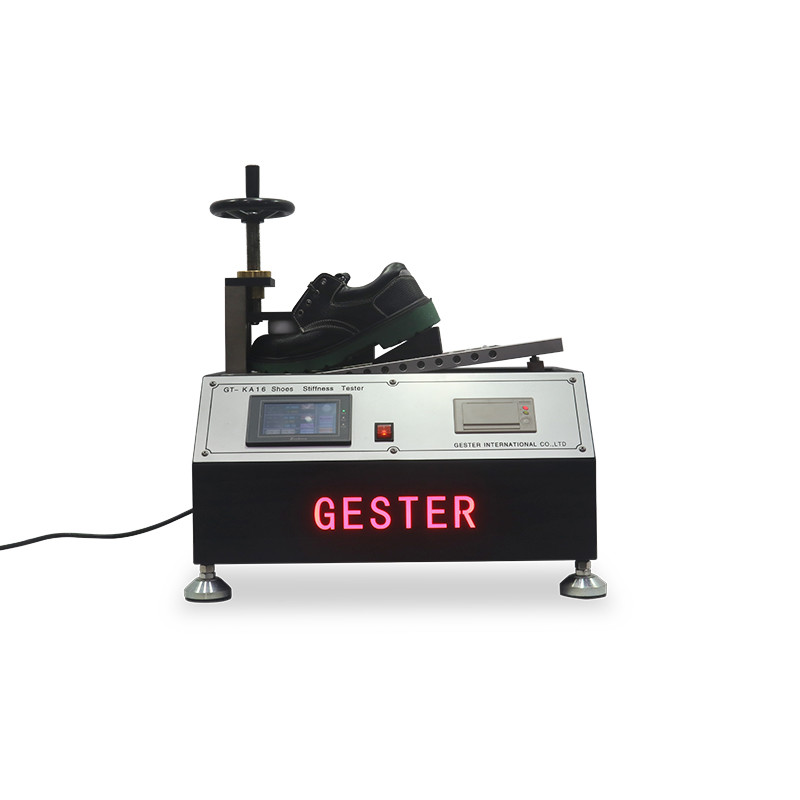

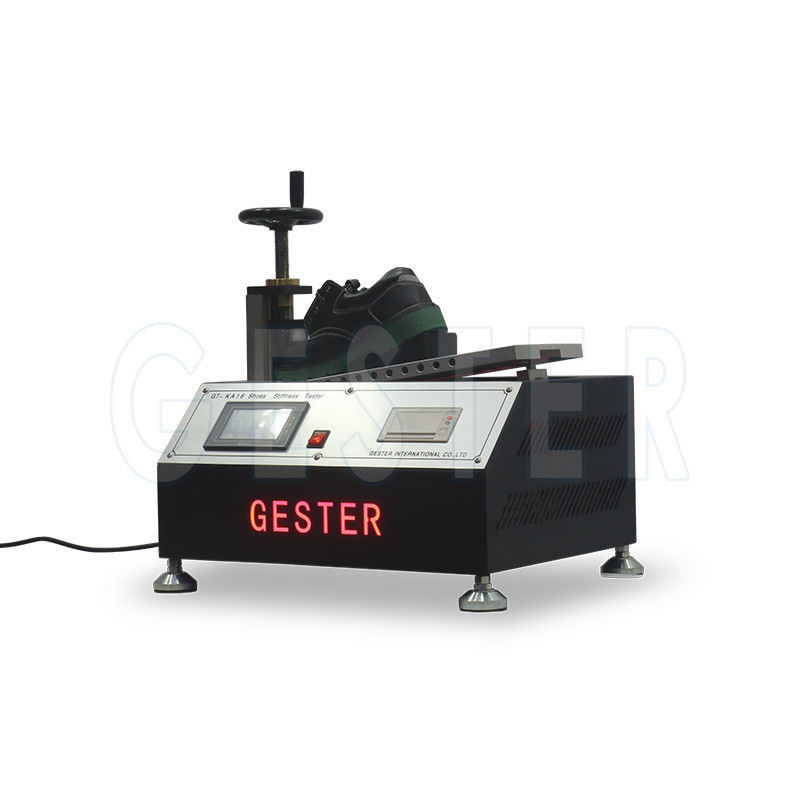

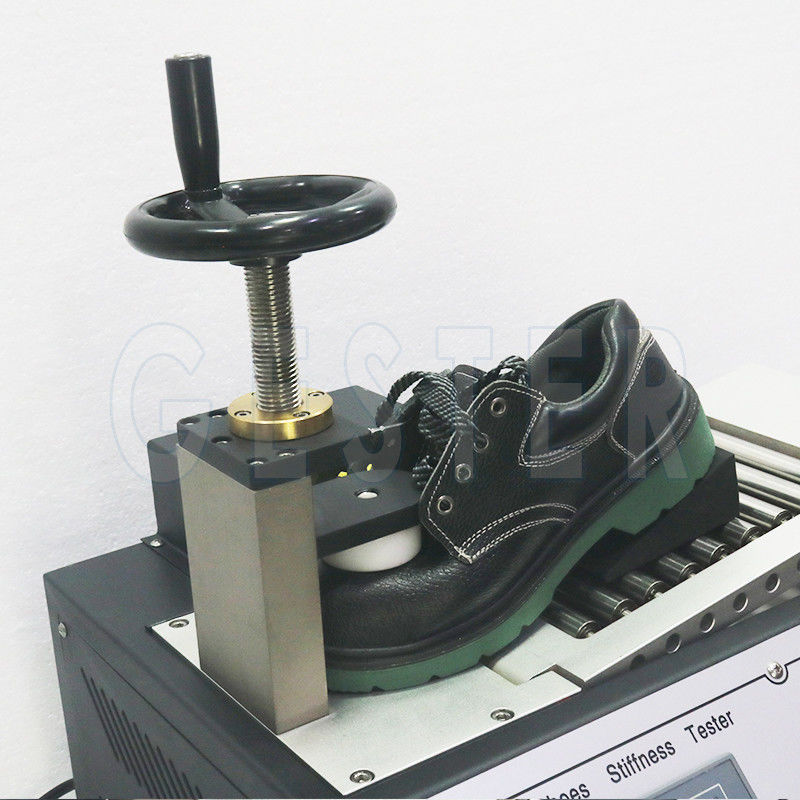

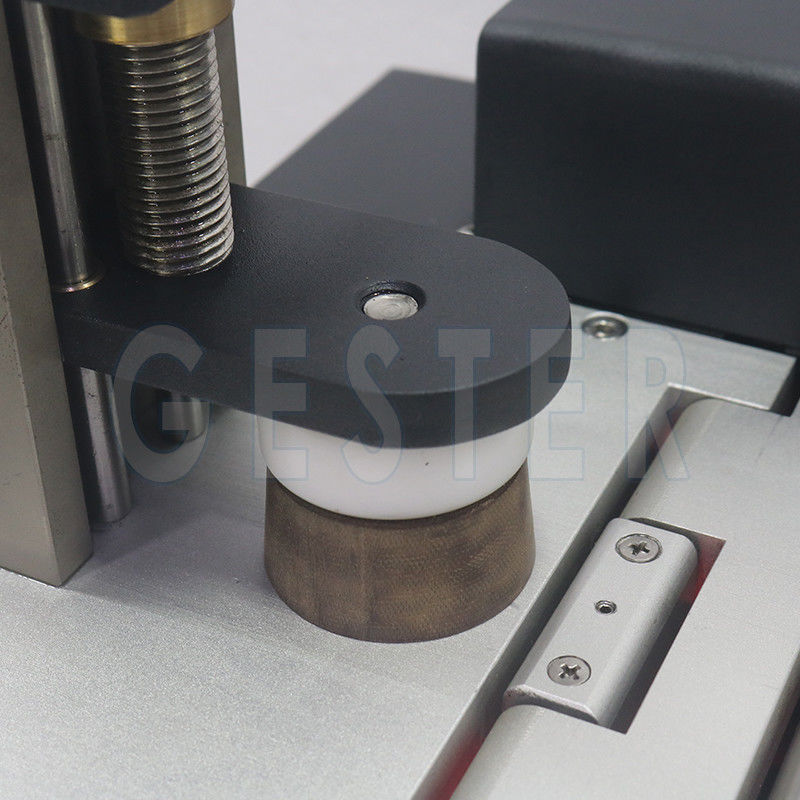

Application: Shoes Bending Stiffness Tester is used to measure bending resistance of whole shoes (France shoe Size 39, 42,and British shoe Size 6,Size 8). Clamp the foreshoes (confirming to 1/3 of palm shoes, located on shaft location), after motor launching, driving to pulley, to make shaft drive the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test. Standards: GB/T 20991 section 8.4.1 ISO 20344-2020 section 8.5 AS/NZS 2210.2 section 8.4.1 ISO 17707 section 4.2 |
2.Equip with a decoder on shaft, and inducting angle speed of turning board, showing the value through the display with accuracy of 0.1°.
Model |
GT-KA16 |
Capacity |
200 N |
Bending speed |
100mm/min (adjustable) |
Sample size |
French standard: Size 39, 42 ; British standard : Size 6, 8 |
Test load |
30 N |
Bending position |
1/3 of shoes |
Angle resolution |
0.1° |
Force resolution |
1/50000 |
Measurement method |
Fixed fore to display angle Fixed angle to display force |
Power |
1∮AC 220V 50/60HZ 3A |
Dimension (W×D×H) |
50×45×53 cm |
Weights |
40kg |
Standards |
GB/T 20991 section 8.4.1 ISO 20344-2020 section 8.5 AS/NZS 2210.2 section 8.4.1 ISO 17707 section 4.2 |
