Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | HEY105 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 set/month |
Key Word: | Paper Bowl Making Machine | Warranty: | 1 Year |
---|---|---|---|
Certificate: | CE, ISO | Speed: | 60-70/min |
Bottom Knurling: | HOT AIR | Working Air Source: | 0.6-0.8Mpa; 0.4m³/min |
High Light: | 1200ML Paper Bowl Making Machine,PE Coated Paper Bowl Making Machine,200ML Disposable Bowl Making Machine |
Product Application

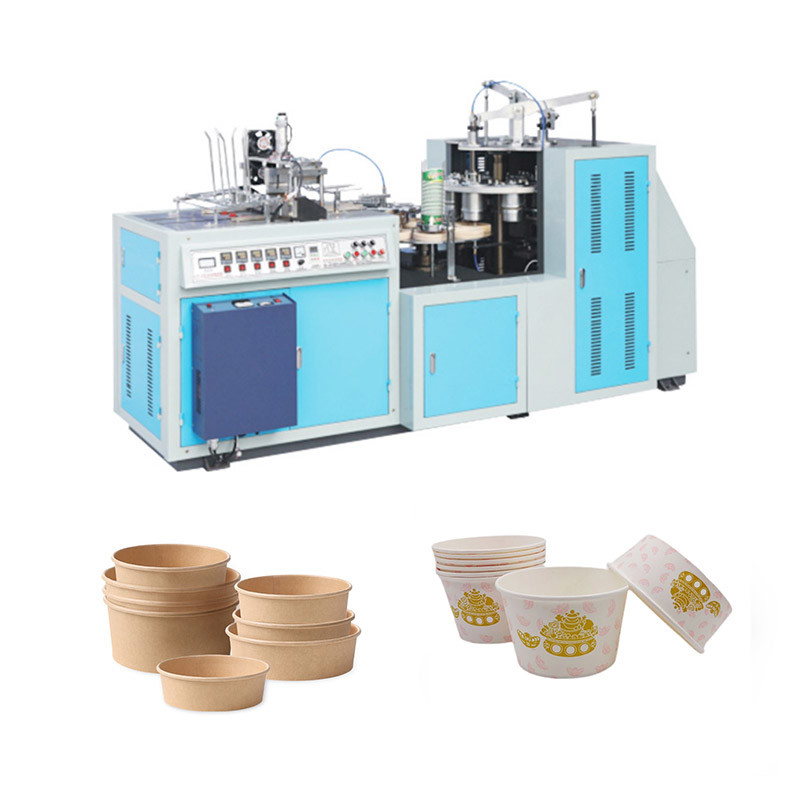

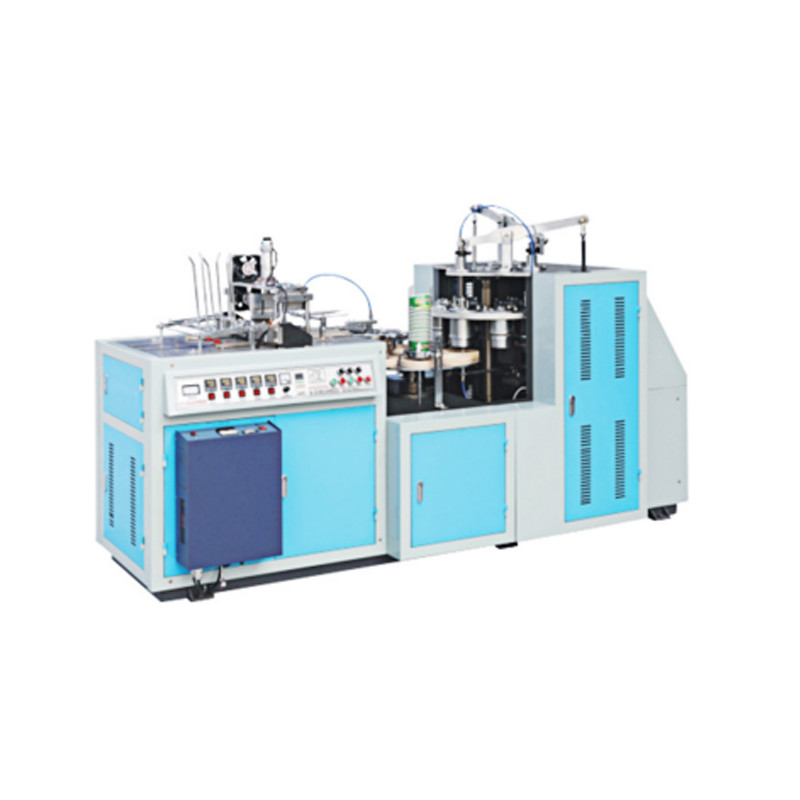

Paper Bowl Making Machine is a multi-station automatic forming machine which adopts automatic paper feeding, sealing, oil filling, bottoming, heating, knurling and crimping. Such continuous processes as well as photoelectric detection, fault alarm, counting and other functions are ideal equipment for producing large-capacity calibers or food containers such as paper soup bowls, instant noodle bowls, convenient noodle bowl, breakfast bowl, and other paper food container bowls.
Product Parameter
Paper Bowl Size |
200-1200ML
|
Raw Material |
One-side or two-side PE coated paper (Singe PE or Double PE coated paper)
|
Speed |
60-70/min
|
Suitable Paper Weight |
160-350; ±20g/㎡
|
Voltage supply |
380V(220V) 50HZ
|
Bowl Size |
Bottom: 8-125mm; Top: 90-145mm; Height: 40-130mm
|
Working Air Source |
0.6-0.8Mpa; 0.4m³/min
|
General Power |
12KW
|
Net Weight |
2800KG
|
Dimension of Mainframe |
L:2100mm; W:1200mm; H:1800mm
|
Cup Side Sealing |
EVERGREEN Ultrasonic
|
Bottom Knurling |
HOT AIR
|

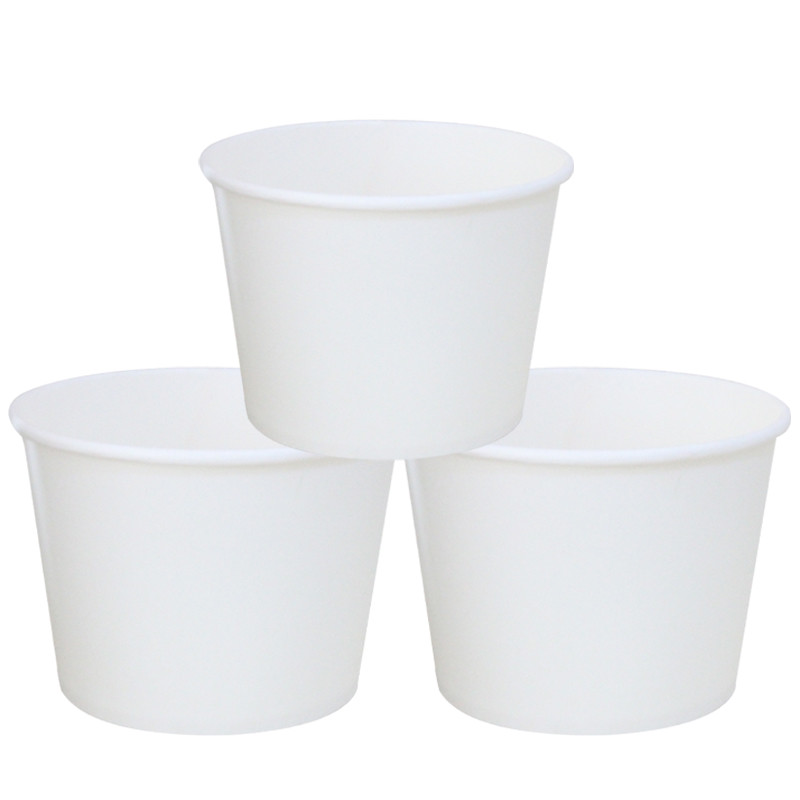

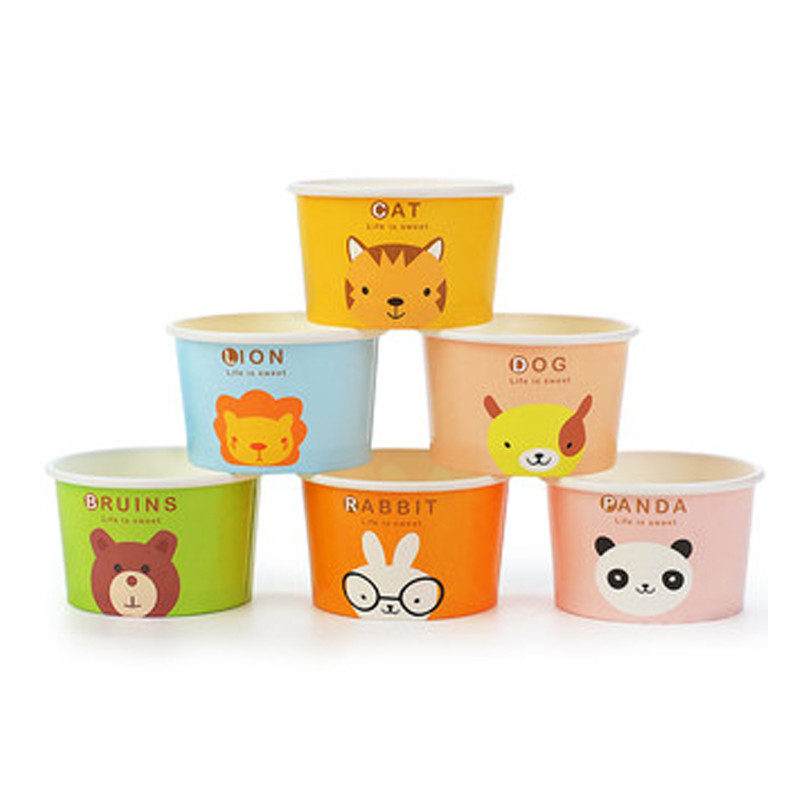

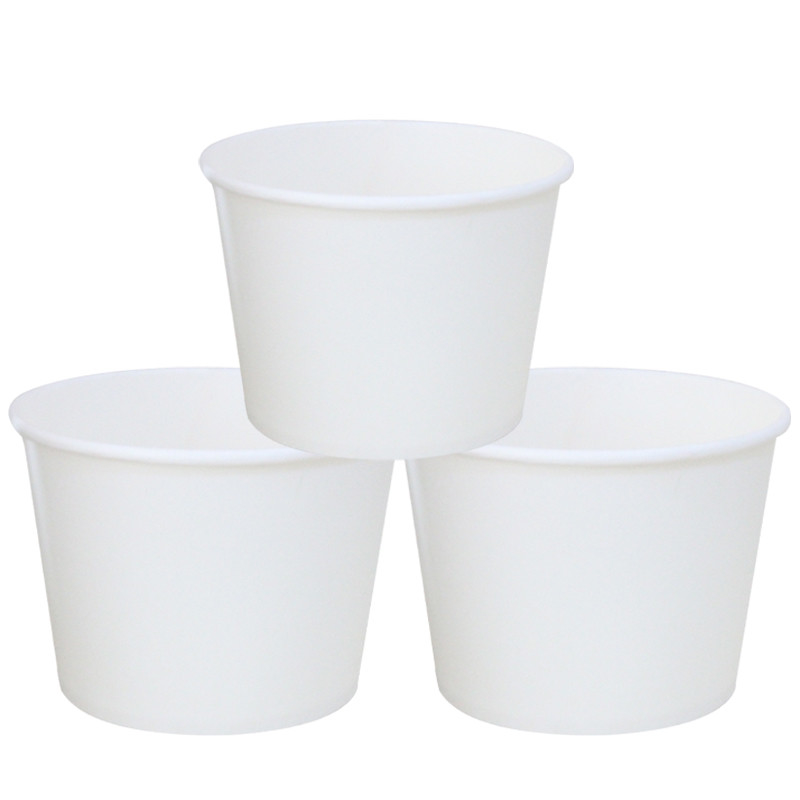

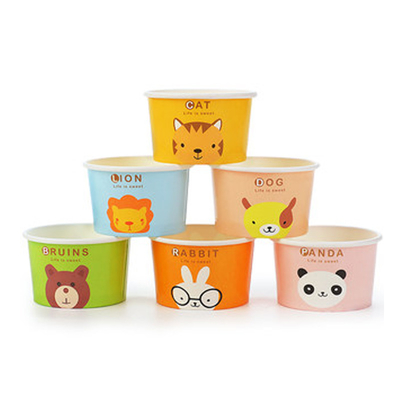

Product Display
