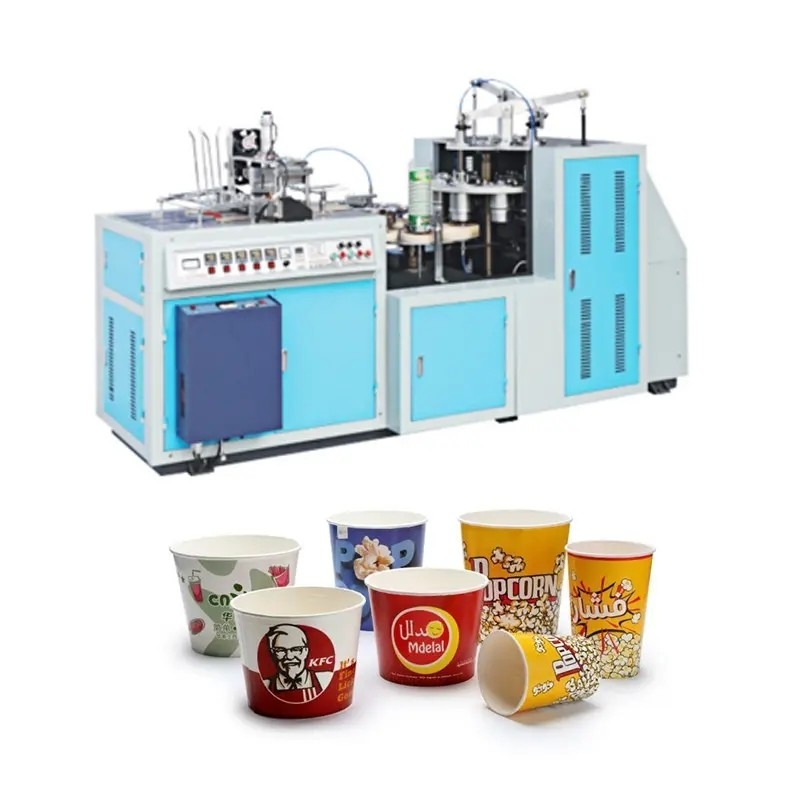

15KW 130 - 180OZ Double PE Coated Paper Bucket Making Machine

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	HEY100-220

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 set/month

Get Best Price Contact Now

Key Word:	Paper Bowl Making Machine	Warranty:	1 Year
Paper Cup Size:	130-180oz Or Customize	Speed:	25~~30 Pcs/min
Min Top Diameter:	120mm	General Power:	15KW
After-sales Service Provided:	Online Support, Video Technical Support	Air Consumption:	0.5m³/min
High Light:	15KW Paper Bucket Making Machine , 180OZ Paper Bucket Making Machine , 130OZ Paper Cup Making Machine

15KW Double PE Coated Customize Size Paper Bucket Machine

Product Features

^{1. Paper bucket machine with double turning plate, better for collecting the finished cup.}

^{2. Ultrasonic sealing station for the cup side welding.}

^{3. Two stations Hot air station for the bottom sealing}

^{4. You can make cups of different size by changing molds.}

^{5. Machine with PLC control, touch screen operation}

^{6. Open cam system fully lubrication system in the machine.}

^{7. Low operating cost, 1 worker can handle 1 machine.}

Product Parameter

^Model	^HEY100-220
^{Paper cup size}	^{130-180oz or customize}
^Speed	^{25~~30 pcs/min}
^{Max top diameter}	^220mm
^{Max bottom diameter}	^180mm
^{Min top diameter}	^120mm
^Max.Height	^100mm
^{Min bottom diameter}	^90mm
^{Raw material}	^{250~~380gsm, single or double PE coated paper}
^{General power}	^15KW
^{Air consumption}	^0.5m³/min
^Electricity	^{380V 3 phases}
^Weight	^4500kg
^{Outline size (LxWxH)}	^{3.98m×2.1m×1.9m}
