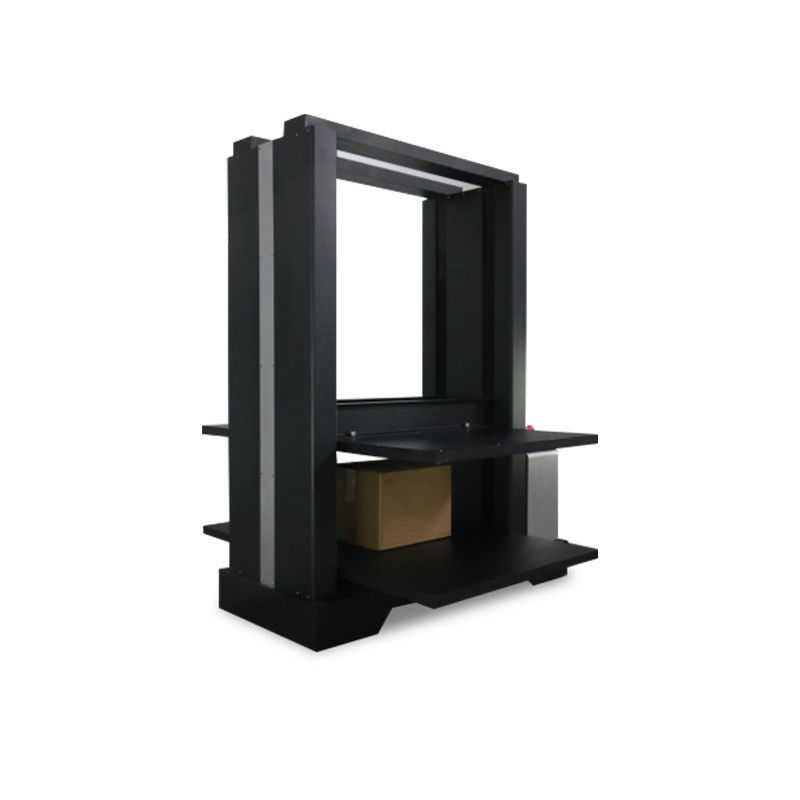

Paper Testing Instruments LCD Model Box Compression Strength Tester
GT-N02A Type box compression tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 30kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the carton box compression tester has the following salient features: good parallelism, reliable measure precision and high return speed(250mm/min.)
Box compression tester is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
Constant Value Test
There are two parameters which are to be set in the constant value test: load force value and deformation value. The user can set one or both of them according to the practical requirement. the measure is complete when any parameter reaches the set value.
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).
when the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.
The overall system is in good parallelism, stationarity and high return speed.
500 mm x 500 mm or 600 mm x 600 mm
800 mm x 800 mm or 1000 mm x 1000 mm
500mm or 600 mm
800mm or 1000 mm
0-10KN, 20KN, 30KN
Direct thermal printer, high speed while noiseless.
