Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | Yarn Friction Tester |
Model Number: | A32 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Warranty: | One Year | Test Tension: | 0~500cN |
---|---|---|---|
Tension Accuracy: | ±1% | Friction Angle: | 0~360° |
Pretension: | 0~24cN | Speed: | 1~100m/min |
Weight: | 35kg | Testing: | Yarn Friction Tester |
Key Words: | Coefficient Friction Tester | ||
High Light: | astm coefficient of friction test,astm coefficient friction tester,500cN coefficient friction tester |

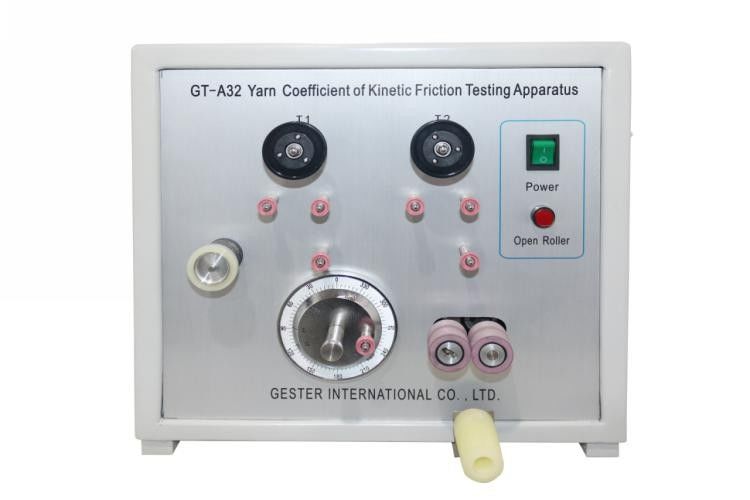

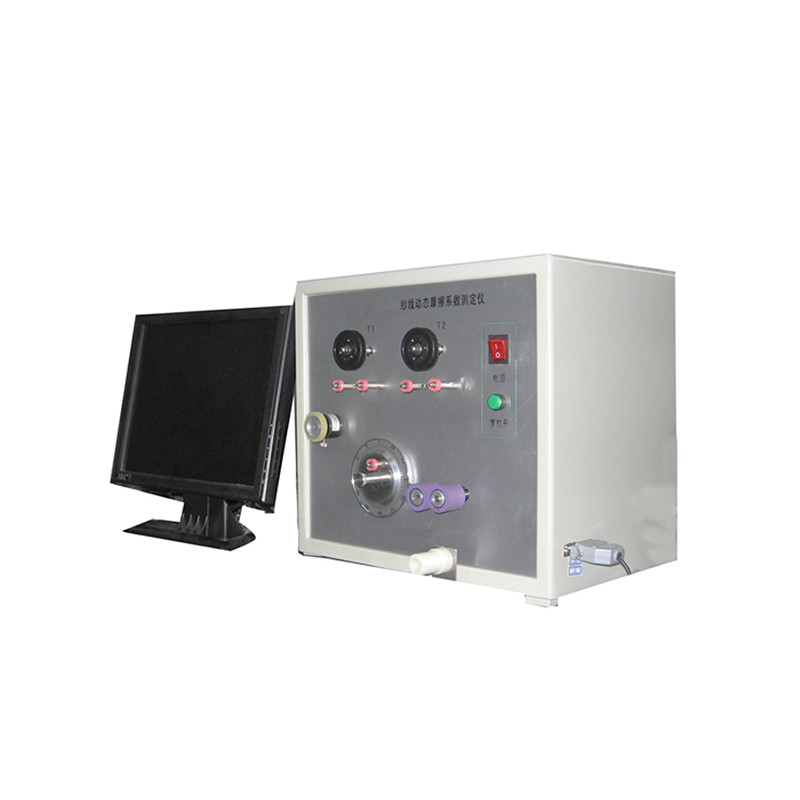

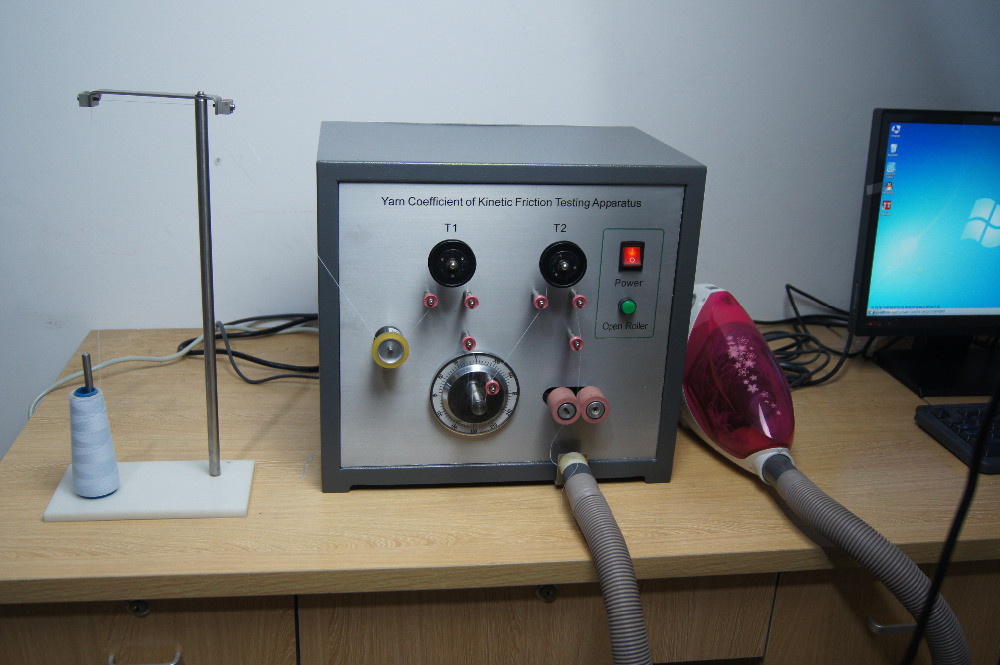

Textile Testing Yarn Digital Coefficient Friction Tester For Fabric
Application
Yarn Coefficient Friction Tester is suitable for measuring the static friction coefficient and kinetic friction coefficient of filament yarn with different solid materials. Computer automatically calculate the friction coefficient with input tension and output tension value by using formula.
Features
1.Computer control and automatic data processing.
2.Test the tension with high precision.
3.Display input tension, output tension and friction coefficient on computer.
4.Possible to determine different kinds of filament yarn.
5.Adjustable winding angle.
6.Adjustable pretension and Adjustable speed.
Standards
ASTM D 3108-2013, T/CNTAC 4-2017
Key Specification
Test tension | 0~500cN |
Tension accuracy | ±1% |
Friction coefficient | 0<µ<1 |
Friction angle | 0~360° |
Pretension | 0~24cN |
Yarn test speed | 100m/min |
Power | 300W |
Power supply | 220V 50Hz |
Dimensions | 600x350x450mm (L x W x H) |
Weight | 35kg |
