Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-KB05D |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Keyword: | Whole Sole ROSS Flexing Tester | Service: | Perfect After-sales Service |
|---|---|---|---|
| Name: | Shoe Sole Flex Testing | Advantage: | Factory Direct Sale |
| Type: | Shoe Testing Machine | Warranty Period: | 1 Year |
| High Light: | ASTM D1052 Shoe Testing Machine,Bending 90degree Shoe Testing Machine,ASTM D1052 ROSS Flexing Tester |
||
|

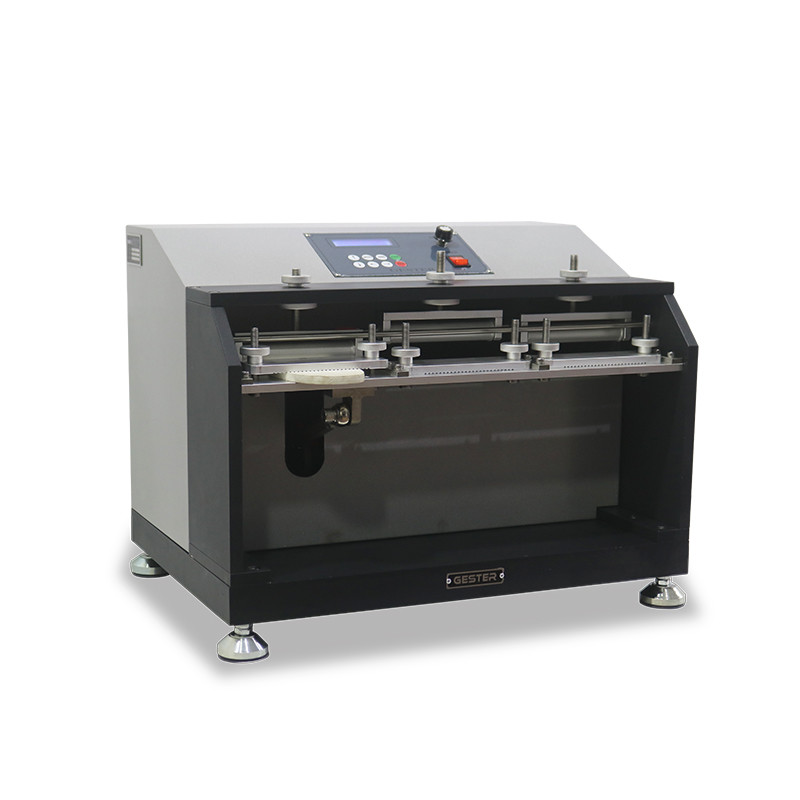

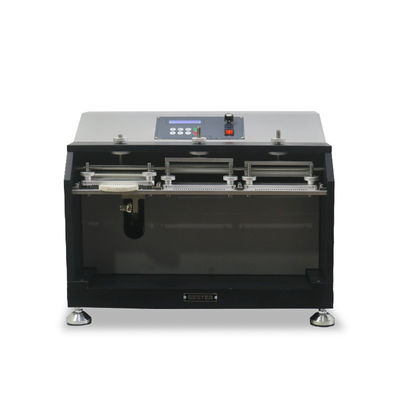

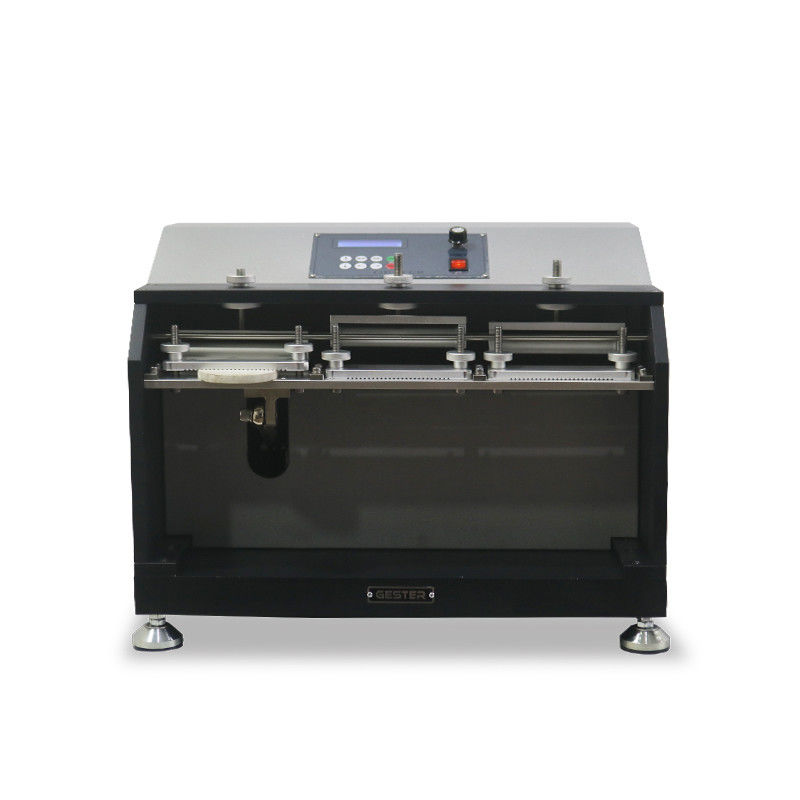

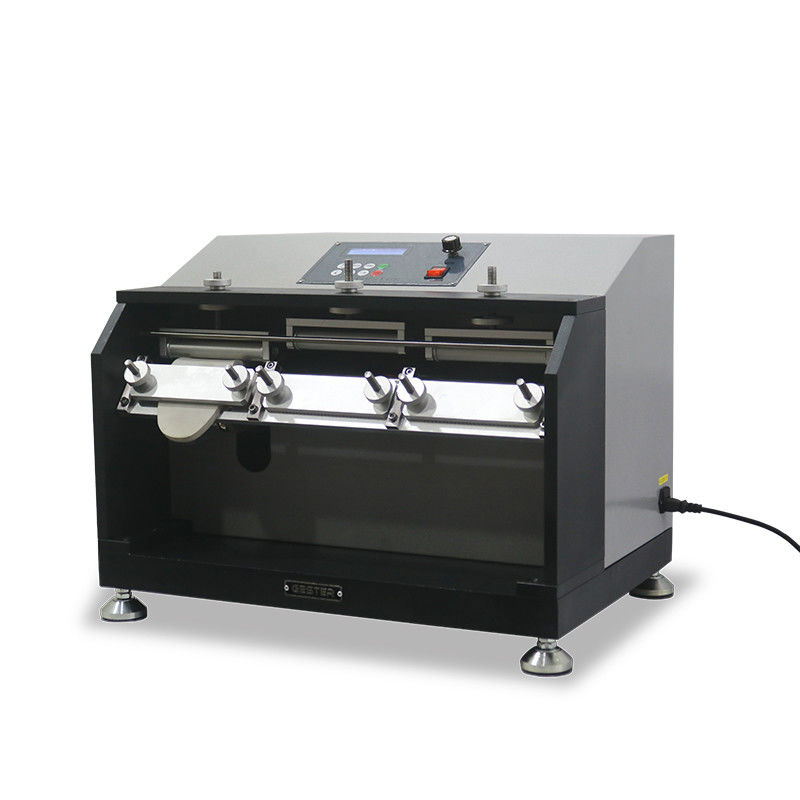

Application: Whole Sole ROSS Flexing Tester to determine right angle flexing risistance for whole sole of rubber, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending. |

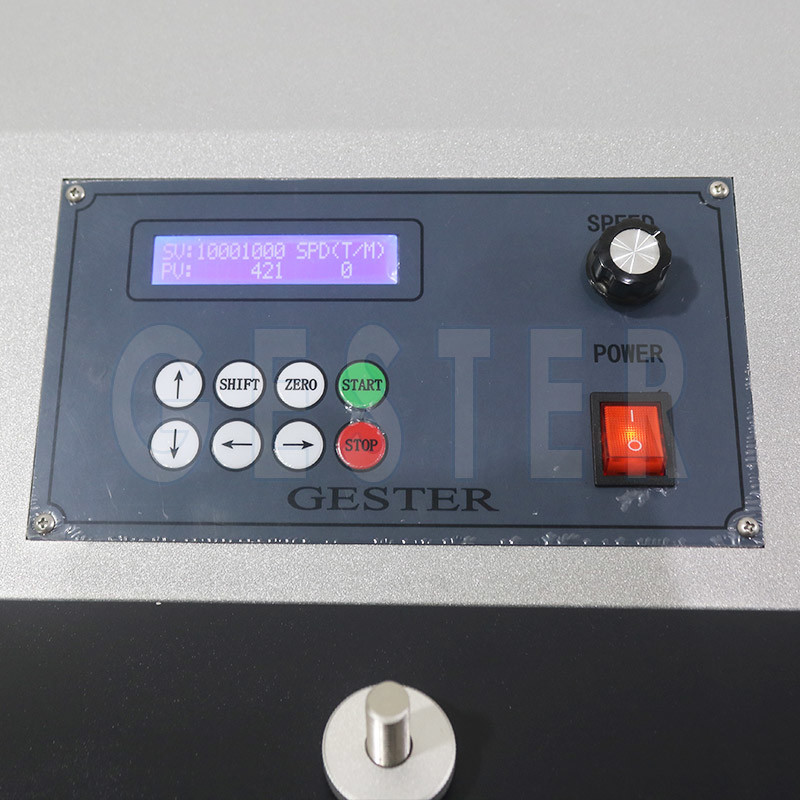

Whole Sole ROSS Flexing Tester equip with digital counter, automatically stop after test finished.
|
Model |
GT-KB05D-1 |
GT-KB05D-2 |
|
Fixuture |
3sets |
6sets |
|
Bending angle |
90±2° |
|
|
Bending speed |
100± 3 cpm |
60± 5 cpm |
|
Winding shaft radius |
5± 0.3mm |
|
|
Specimen dimension |
Whole sole |
|
|
Counter |
LCD, 0~99,999,999 |
|
|
Dimension (W×D×H) |
80×42×45cm |
|
|
Weight |
About 60 kg |
|
|
Power Supply |
1∮AC 220V 50/60HZ 3A |
|
|
Standards |
ASTM D1052 |
SATRA TM60, BS5131: 2.1, GB 2026, HG/T2411, ISO 5423, ISO4643 |
