Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GTM63 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Condition: | New | Product Type: | Plastic Thermoforming Machine |
---|---|---|---|
Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support,Online Support |

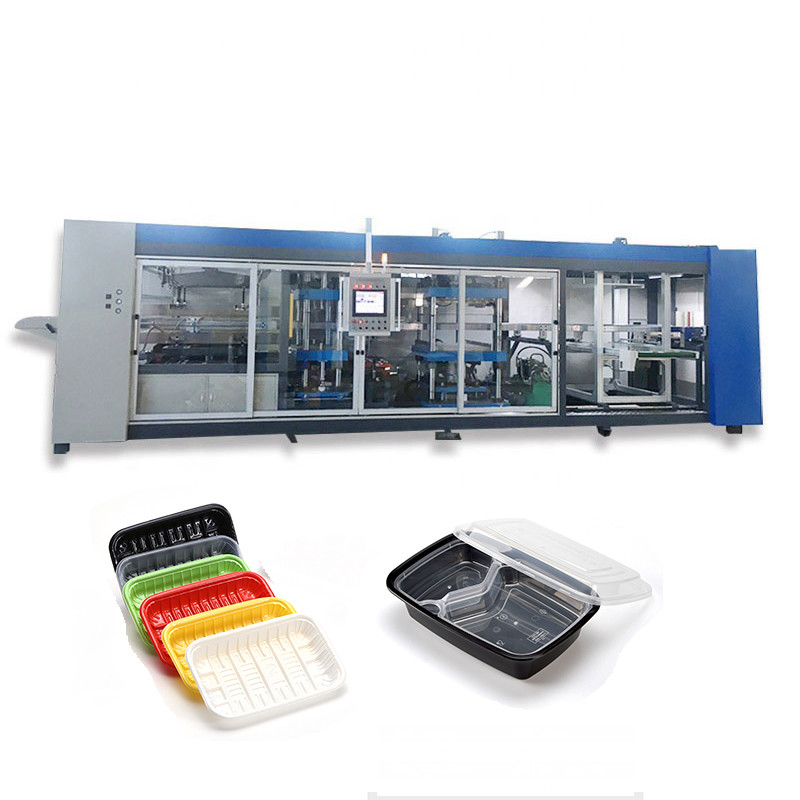

Production: | Fast Food Box,Vegetable And Fruit Box, Biscuit Box, Lunch Box, Fresh Meat Tray Box, Etc. | Automation: | Fully Atuomatic |
High Light: | ISO Plastic Lid Thermoforming Machine,45 Cycles/Min Plastic Lid Thermoforming Machine,ISO Plastic Pressure Forming Machine |

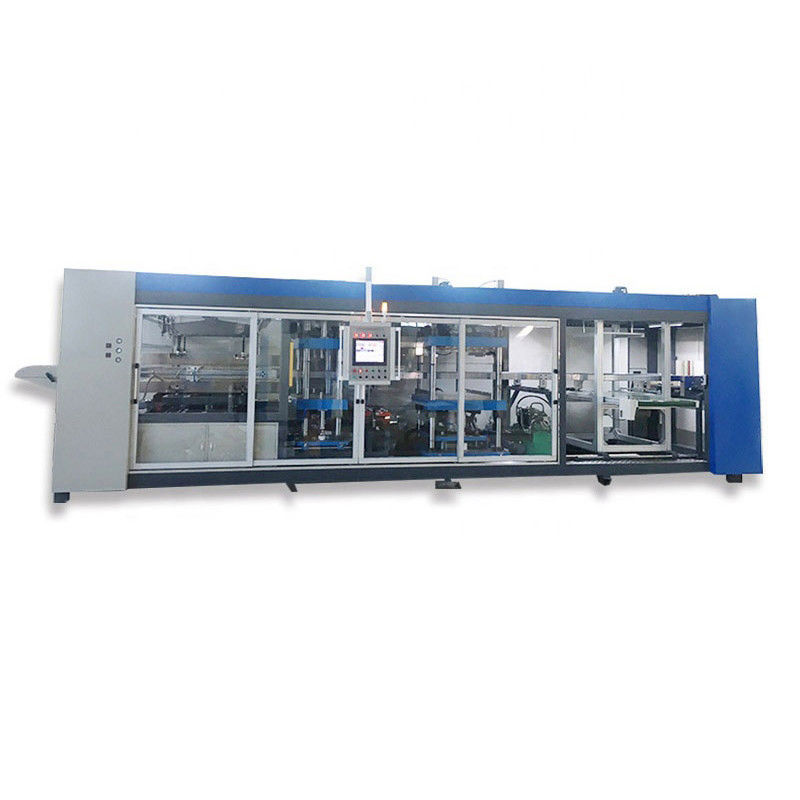

Three Stations Plastic Lid Thermoforming Machine
Product Introduction:
Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. Plastic Lid Thermoforming Machine is operates man-interface, which can works all by itself. Feeding system driven by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.
Thermoformer machine is suitable for PP, HIPS, PVC and PET sheet.
Features:
Key Specification:
Model | GTM63 | GTM63 |
Maximum forming area | 760x540 mm | 760x540 mm |
Minimum forming area | 375x350 mm | 375x350 mm |
Maximum mold dimension | 780x560 mm | 780x560 mm |
Height over sheet material forming part |
150 mm | 150 mm |
Height under sheet material forming part | 150 mm | 150 mm |
Dry cycle speed | 45 cycles/ min | 45 cycles/ min |
Maximum film width | 810 mm | 810 mm |
Operating pressure | 6 bar | 6 bar |
