Gester International Co., Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE,ISO |
| Model Number: | GT-KB06 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | SATRA TM161 EN Whole Shoe Sole Flexing Resistance Tester | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | 80kg/100kg | Key Words: | Shoe Sole Flexing Resistance Tester |
| Advantage: | On-site Installation Training | On-site Installation Training: | 30 Mm |
| Benefit: | Provide Professional Standard Testing Solution | Feature: | Factory Price |
| Counting: | LCD, 0-9999999 | Certificate: | CE ISO |
| High Light: | SATRA TM161 Flexing Tester,ISO 17707 Flexing Tester,SATRA TM161 Shoe Testing Machine |
||

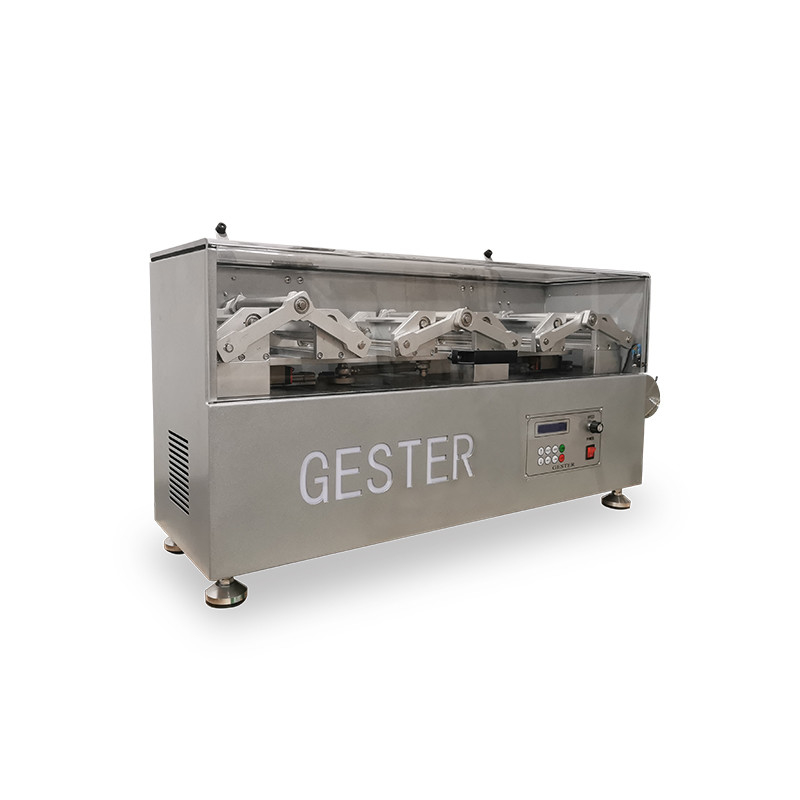

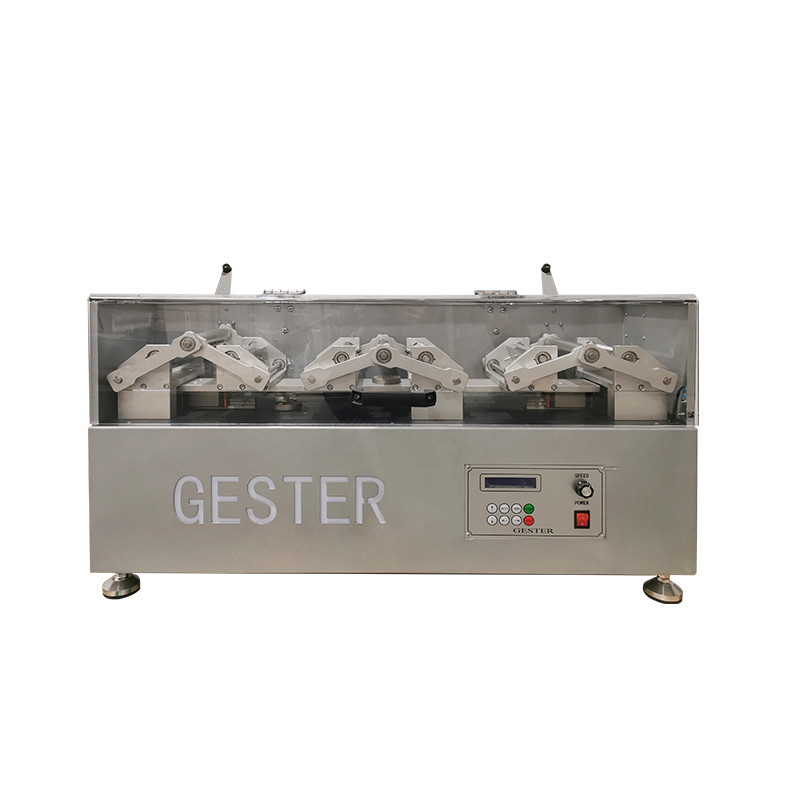

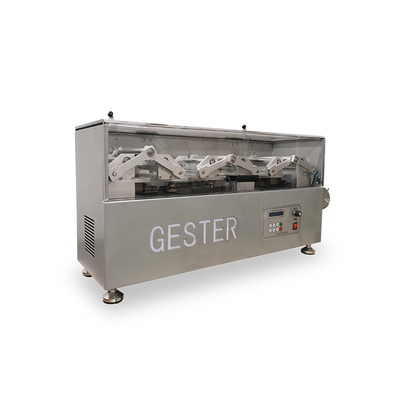

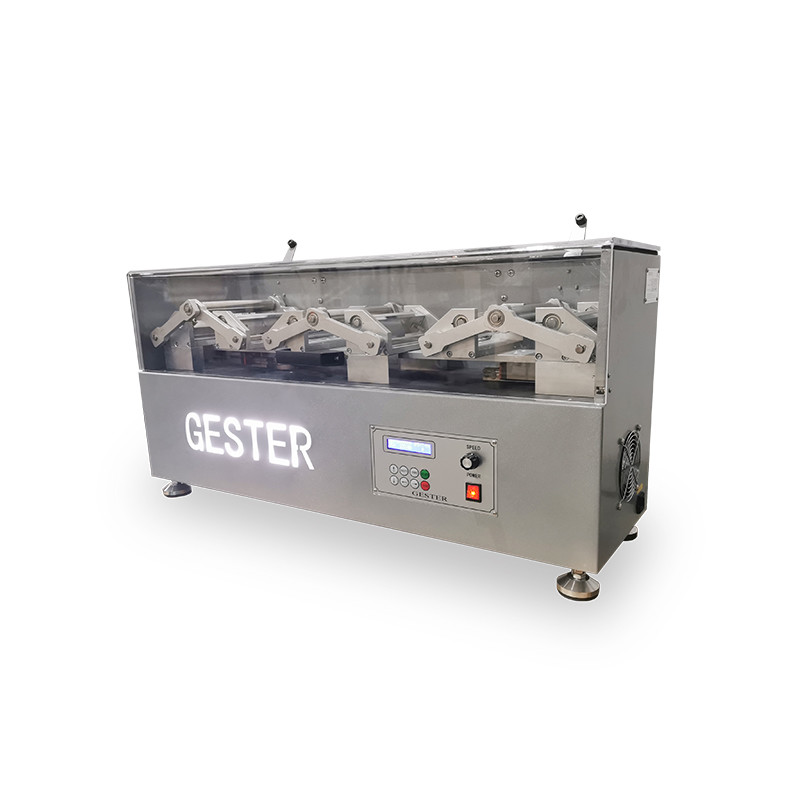

Shoe Testing Machine Footwear Whole Sole Flexing Tester
| Application |
SATRA TM161 EN Whole Shoe Sole Flexing Resistance Tester Desk and Bed Universal Testing Machine is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.
| Standards |
SATRA TM161, ISO 17707, ISO20344 section8.4.2 ,
ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991section8.4.2, QB/T 2885, DIN 53543
| Key Specification |
| Model | GT-KB06A | GT-KB06B |
| Test position | 3 | 6 |
| Bending angle | 90±2 ° | |
| Bending speed | 125-150cpm | |
| Mandrel diameter | 30 mm | |
| Clamps apart | 110±1mm | |
| Movable fixture stroke | 41.5 ± 0.5 mm | |
| Counting | LCD, 0-9999999 | |
| Power supply | AC 220V 50/60HZ | |
| Dimensions | 105x42x55cm | 105x70x55cm |
| Weight | 80kg | 100kg |
| Accessories |
|
Standard accessories
|
1set | Spanner |
| 1pcs | Chisel cutter(2mm) | |
| 1pcs | Power line |

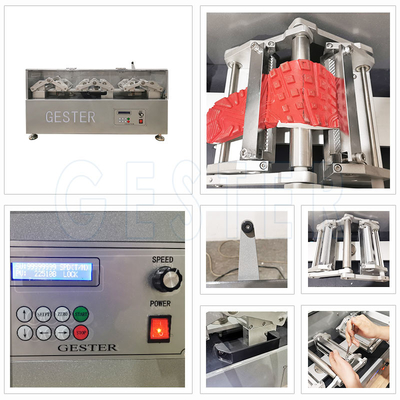

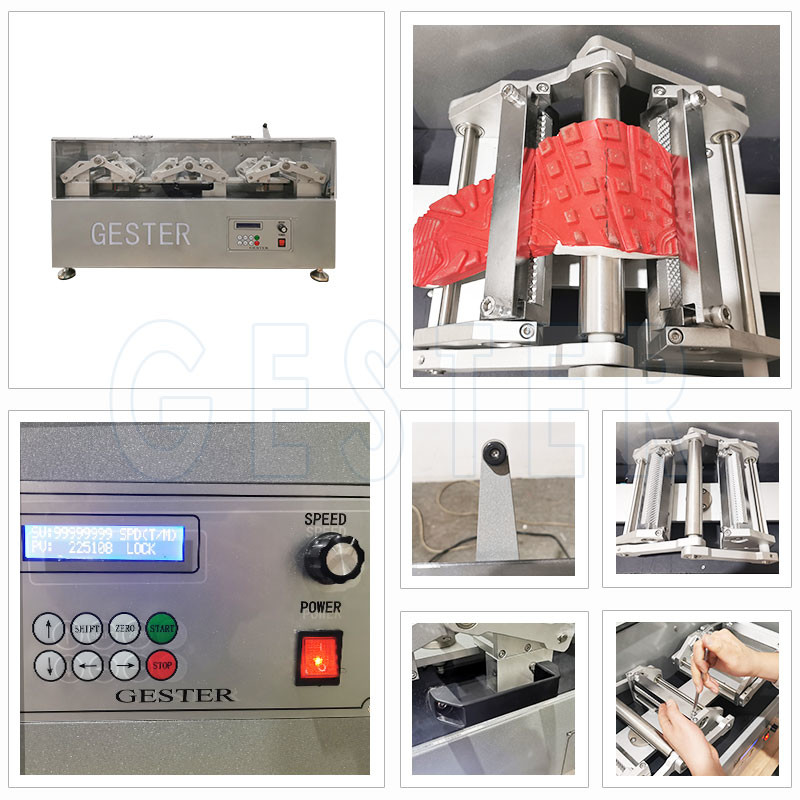

| Product Image |
| Fixture Set | Fixture | ||
 |
Can do 3 sets for every test | |
Clamp sample on fixture set, bending the sample by movable fixture |
| Control Panel | Vent | ||
|
It is to set test parameter | |
Internal ventilation for machine
|
|
Protection Cover
|
|||
|
To protect any dust and personnel safety | ||
