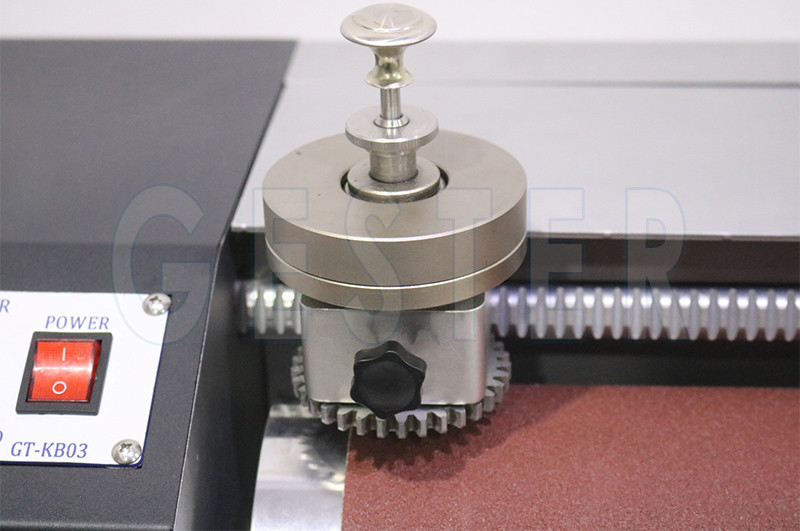

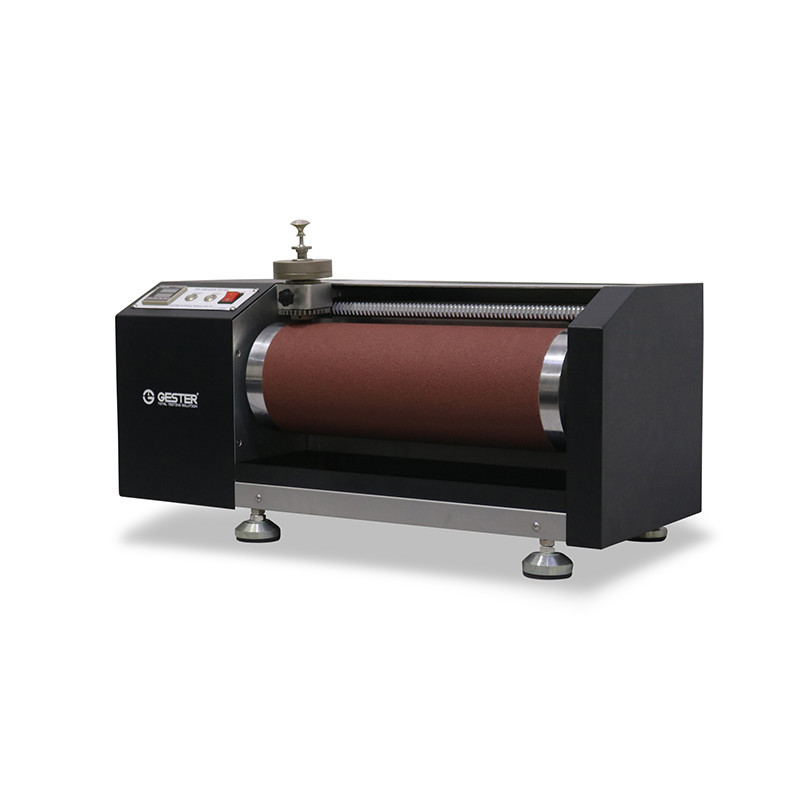

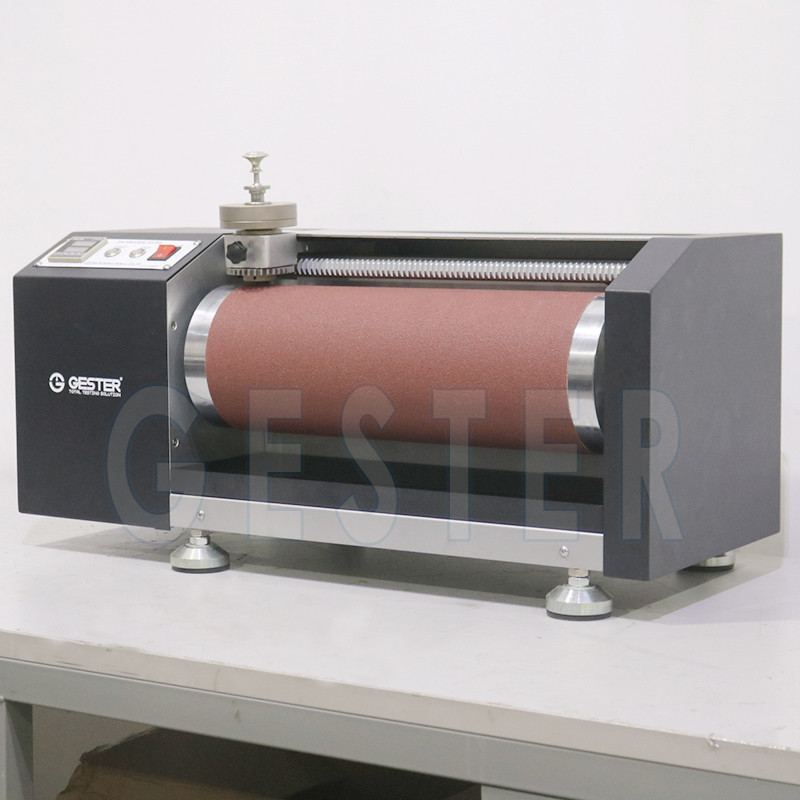

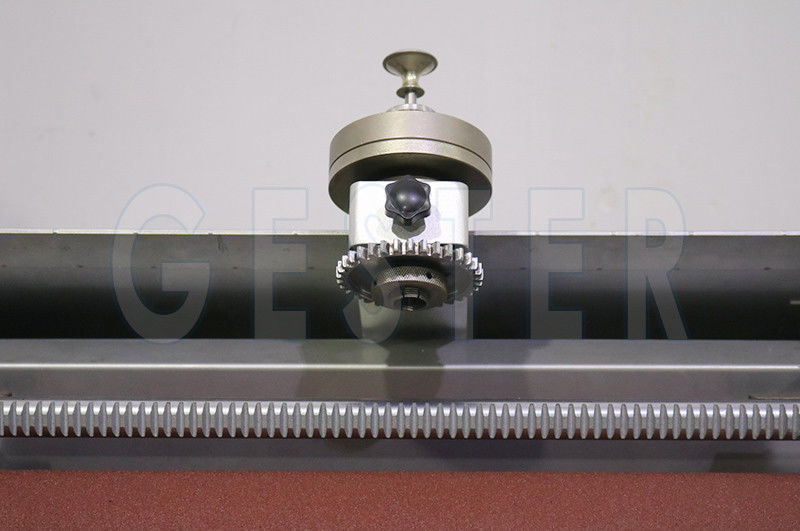

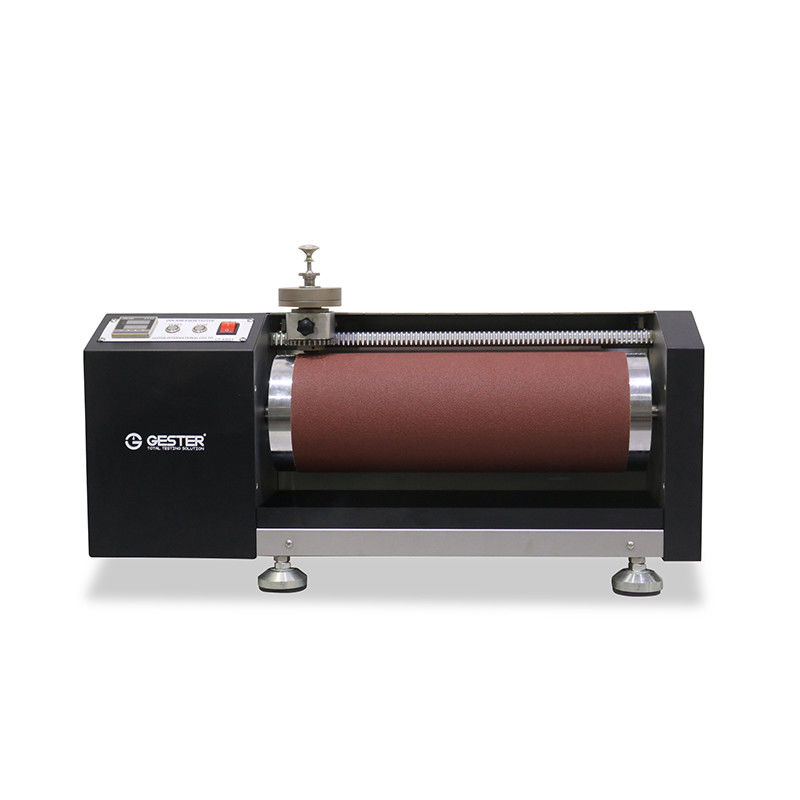

Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material

small.img.alt
small.img.alt Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material small.img.alt Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material small.img.alt Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material small.img.alt Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material small.img.alt Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material
Basic Information
Place of Origin: China
Brand Name: GESTER
Certification: CE, ISO
Model Number: GT-KB03
Minimum Order Quantity: 1 set
Packaging Details: wooden packaging
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets/month
Get Best Price Contact Now
Power: AC220V Usage: Determine Wear Performance Test Of Materials
Product Name: DIN Abrasion Tester Warranty: 12 Months
Color: Black Advantage: Factory Direct Sale, Fast Delivery
High Light:

DIN 53516 Shoe Testing Machine

,

Rotary Drum DIN Abrasion Tester

,

DIN 53516 DIN Abrasion Tester

Rotary Drum DIN Abrasion tester



Product Introduction



Application:

DIN Abrasion tester GT-KB03 is used to determine wear performance test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.



Standards:
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, EN 12770



Feature



  • 1. Din Abrasion Tester Body paint baking processed, easy for maintenance.
  • 2. Equip with digital counter, automatically stop after test finished.
  • 3. Principle: Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.



Key Specifications



Model

GT-KB03

Diameter of wear wheel

150mm

Specimen dimension

ø16.2 mm x thickness 6-10 mm

Specimen moving speed

4.2 mm/r

Weights

Holder 2.5N, can be used arbitrarily with optional accessory 2.5N, 5N (each for one)

Wear wheel speed

40±1rpm

Inclination angle

3°, Test piece support shaft of test piece becomes vertical angle with roller.

Grit size of sandpaper

#60

Roller length

460mm

Wear stroke

40m

Power supply

1∮AC 220V 50/60HZ 3A

Dimensions (L x W x H)

700 x 300 x 300 mm

Weight

55kg

Standards

DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A, ASTM D5963,  ISO20871, QB/T2884, SATRA TM 193, EN 12770

Standard accessories

1pc

2.5N weights

1pc

5N weights

1pc

P60# standard abrasive paper

1pc

Standard cutting die

1pc

Metal blob(Grinding head)

1pc

Power line

Option accessories

Optional

GT-G203H Electronic balance (210g,accuracy 1mg)

Optional

Standard rubber



Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material 0

Rotary Drum DIN 53516 DIN Abrasion Tester For Elastic Material 1
