Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | GT-C12B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets/month |
| Product Name: | Pneumatic Bursting Strength Tester | Usage: | Protective Clothing Test |
|---|---|---|---|
| Warranty: | 1 Year | Power Supply: | 220V 50Hz |
| Warranty Period: | 1 Year | Service: | Online Support, Professional After-sales Team |
| High Light: | ISO2960 Pneumatic Bursting Strength Tester,1.50Mpa Pneumatic Bursting Strength Tester,ISO2960 Bursting Strength Tester |
||
|

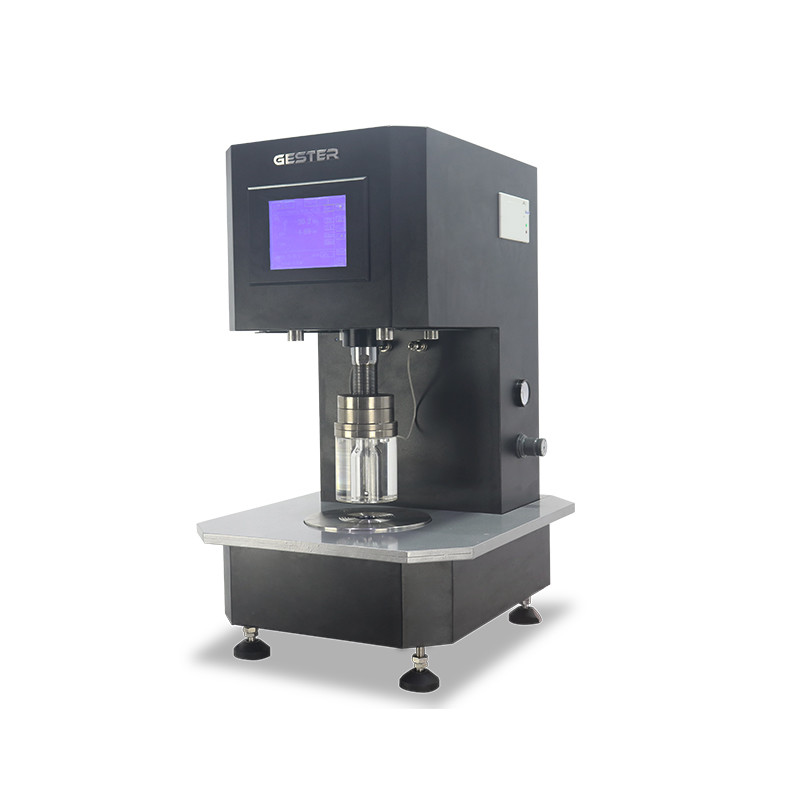

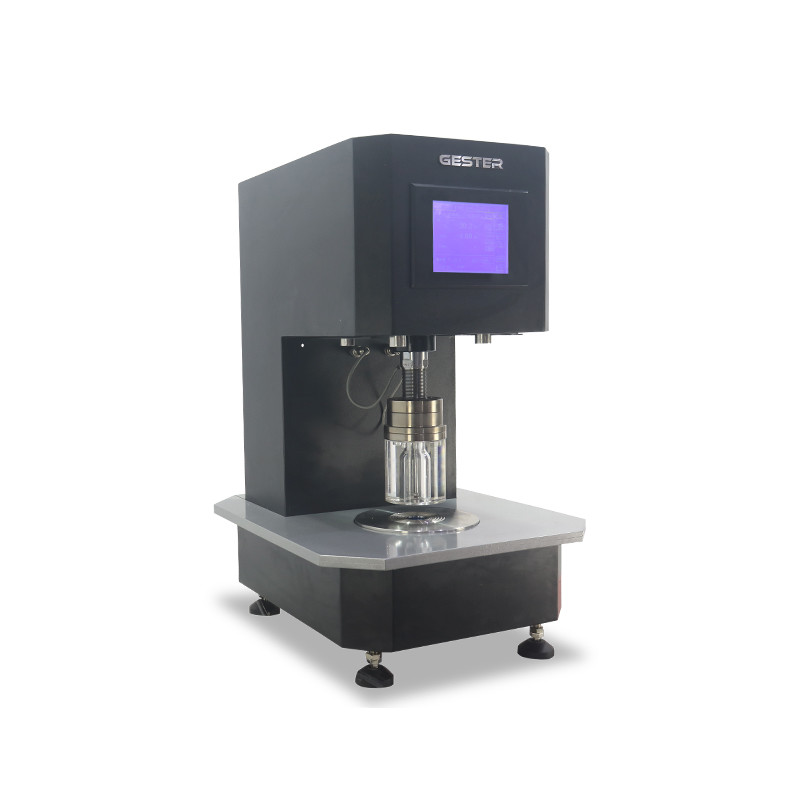

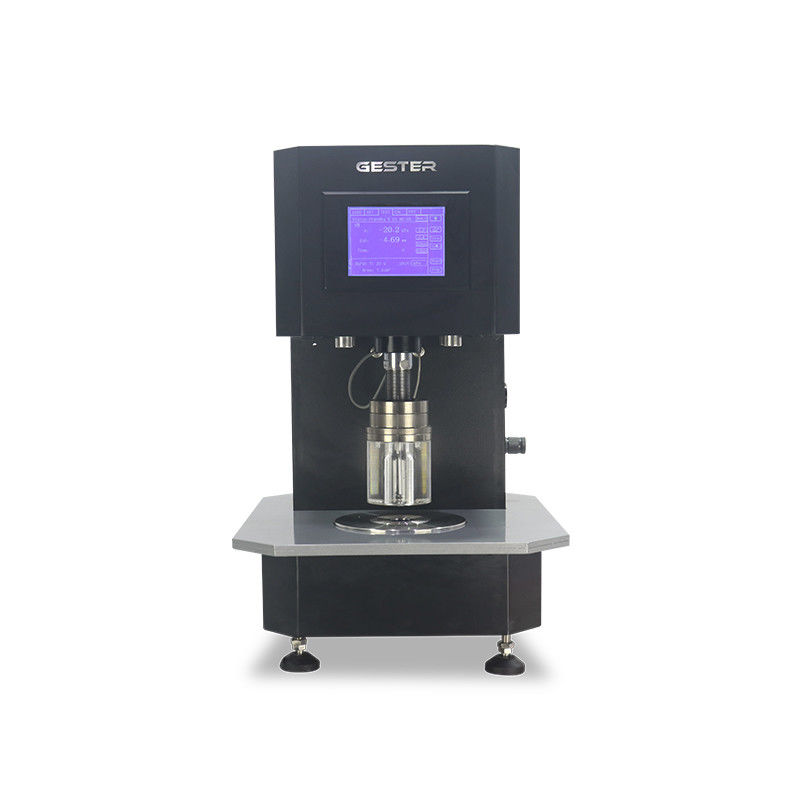

Application: Pneumatic Bursting Strength Tester For determining the bursting strength of woven or knitted fabrics, non-woven, paper, protective clothing, leather and board by application of a pneumatic load under a rubber diaphragm of a specific area. Provide with a digital readout of pressure with peak value hold facility, renewable rubber diaphragms, and manual clamping device with acrylic bell, forward reverse and neutral drive system. Provide accurate elongation information of fabrics, up to 0.1mm.
Standards: FZ/T60019, ISO2960, ASTM D3786,M&S P27, JIS L-1096, ISO 13938-2 |
1. This Protective Clothing Bursting Strength Tester use pneumatic method, meet multinational standards and equipped with several changeable test clamp.

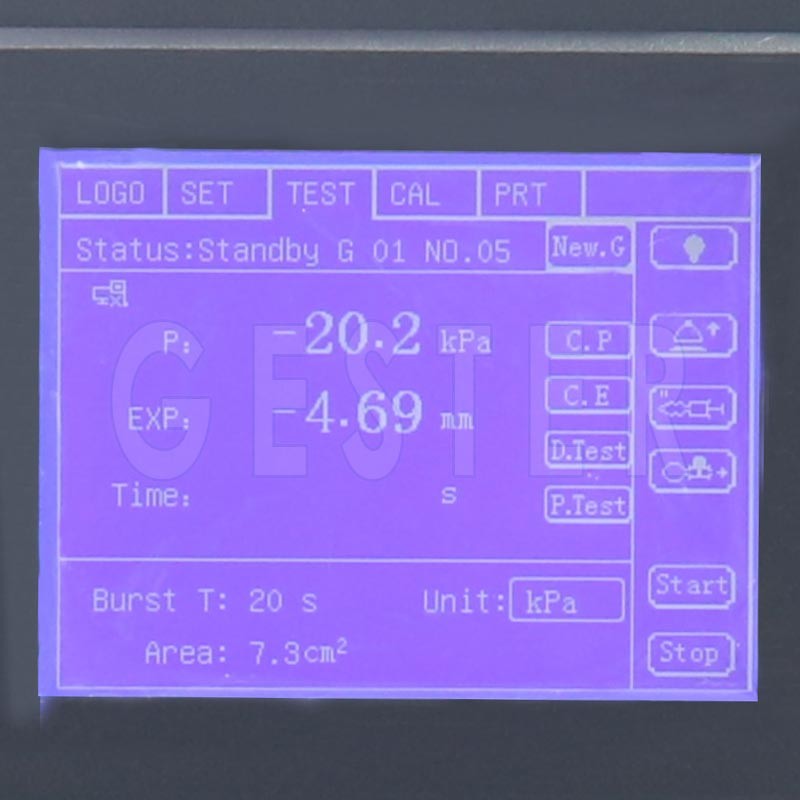

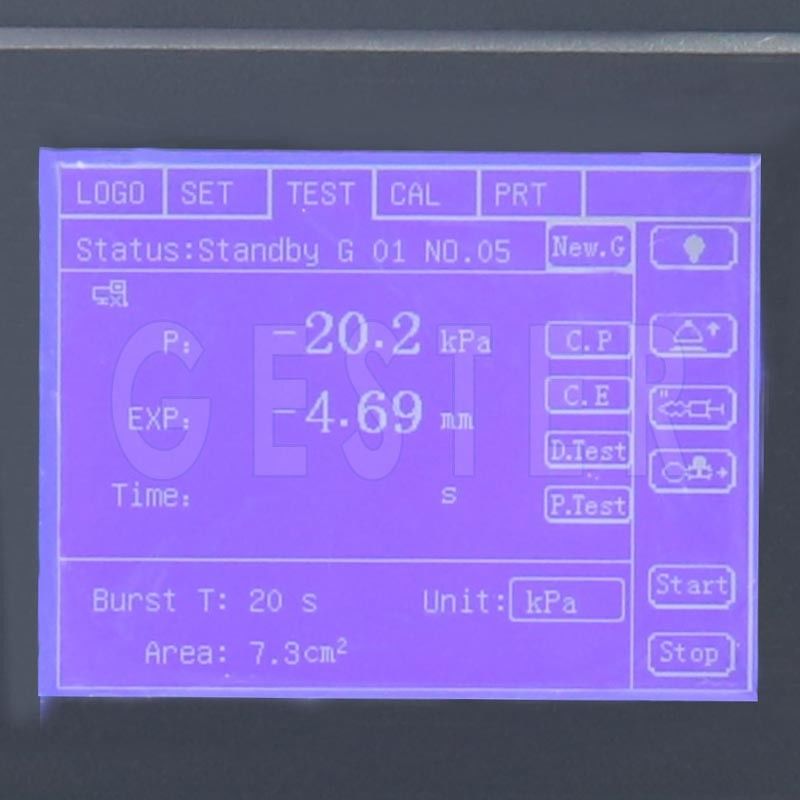

2. The simple interface touching screen controller is easy and simple to handle.
3. The specimen was clamped firmly by the pneumatic force which can also save effort.

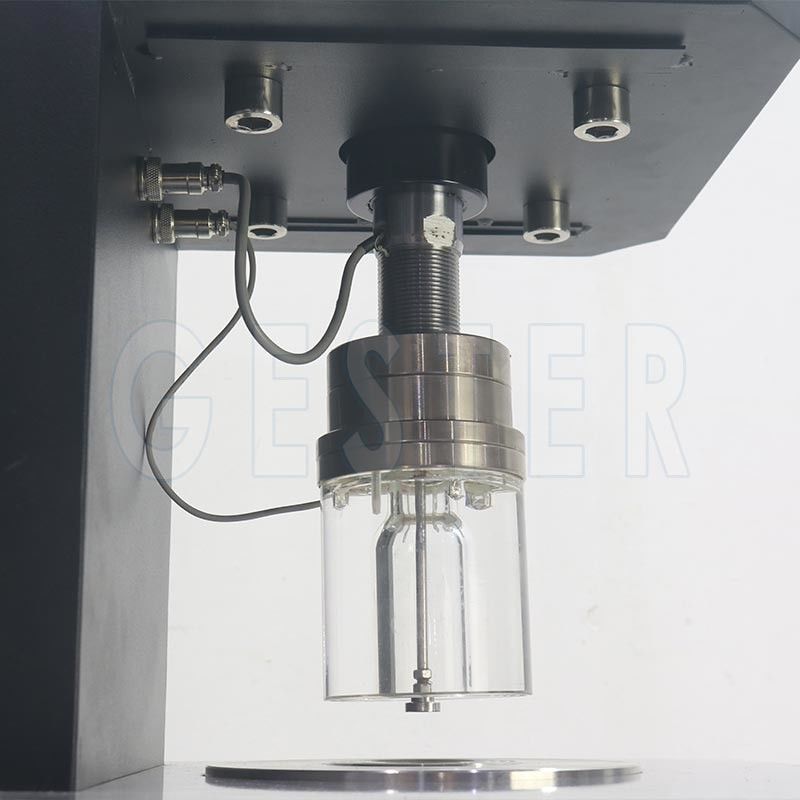

4. The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily
5. Protective Clothing Bursting Strength Tester can induct the burst automatically which is much more sensitive and reliable.
6. The bursting distension can go up to 75mm.
7. The AC servo drive system with low noise and wide range of applications.
8. 4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
9. The bursting strength tester bring saving and printing functions and support on-line operation.
10. Provide on-line interfaces, professional detection software which can be used to analysis testing result.
|
Model |
GT-C12B |
|
Range
|
1.50Mpa |
|
The min. division value
|
0.002Mpa |
|
Test area |
7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100 cm2( Φ112.8mm) can be option |
|
Thickness of rubber diaphragm |
≤2mm |
|
Pressure speed |
10ml/min - 500ml/min |
|
Maximun expansion height |
75 ± 0.02mm |
|
Testing units |
Kpa, kgf/ cm2, atm, mmHg, lb/in2 free shift |
|
Test method |
Constant Rate Bursting, Constant Expansion, Constant Pressure, Constant Time Bursting |
|
Output |
Printer, display output, and can be connected to the computer |
|
Power supply |
AC 220V 50/60HZ 200W |
|
Dimensions |
600×400×530mm |
|
Weight |
200 kg |
