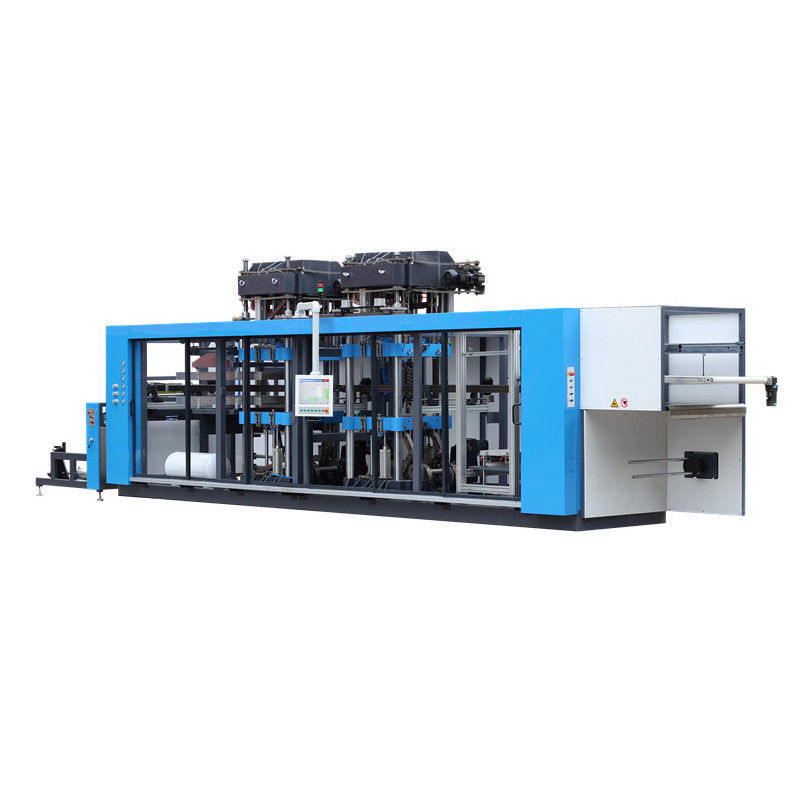

No Waste Color Touch Screen 6 Bar Plastic Thermoforming Machine

Basic Information

Place of Origin:	China
Brand Name:	GESTER
Certification:	CE, ISO
Model Number:	GTM50

Minimum Order Quantity:	1 set
Packaging Details:	wooden packaging
Delivery Time:	10-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets/month

Get Best Price Contact Now

Condition:	New	Warranty:	1 Year

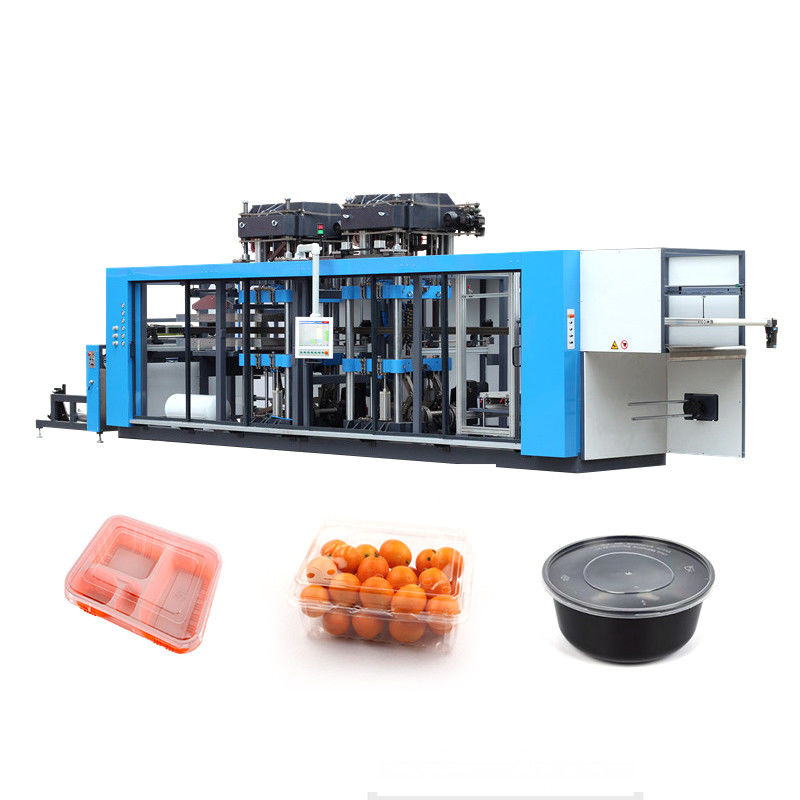

Name:	PP Thermoforming Machine	Production:	Fast Food Box,Vegetable And Fruit Box, Biscuit Box, Lunch Box, Fresh Meat Tray Box, Etc.
Type:	Plastic Thermoforming Machine Manufacturers	Automation:	Fully Atuomatic
High Light:	6 bar Plastic Thermoforming Machine , ISO Plastic Thermoforming Machine , 6 bar Plastic Cup Thermoforming Machine

Product Introduction:

Fully Automatic Thermoforming Machine: Integrated heating, forming, punching and stacking stations. Thermoformer use high-efficiency ceramic heating elements; laser knife mold, high efficiency and low cost; color touch screen, easy operation.

Fully Automatic Plastic Cup Thermoforming Machine Feature:

The integrated forming, punching, stacking, and waste rewinding stations make sheet processing smoother and lower energy consumption.
The forming and punching station uses a solid cast iron structure, equipped with a crank arm with roller bearings to ensure perfect forming and cutting.
The unique vertical stacking concept ensures continuous stacking of products.
Plastic cup thermoforming machine clean production process: no burrs, no waste, directly sent to the box.

Key Specification:

Technical Data	GTM50 1 Station	GTM50 3 Station
Maximum forming area	845x645 mm	845x645 mm
Minimum forming area	400x300 mm	400x300 mm
Maximum mold dimension	870x670 mm	870x670 mm
Maximum mold weight	400 kg	400 kg
Height over sheet material forming part	150 mm	125 mm
Height under sheet material forming part	125 mm	110 mm
Dry cycle speed	45 cycles/ min	45 cycles/ min
Maximum film width	900 mm	900 mm
Operating pressure	6 bar	6 bar
