Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | GT-KB17 |
Minimum Order Quantity: | 1 set |
Packaging Details: | Wooden Packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Drop Height Range: | 0- 1200mm | Power Supply: | 1∮AC220V 50HZ 5A |
---|---|---|---|
Dimensions(L X W X H): | 60 X 70 X 220cm | Weight: | 230kg |
Warranty: | 1 Year | Price: | Factory Price |
High Light: | ISO EN344 BS-953 Impact Testing Machine,Impact Testing Machine AC 220V,ISO EN344 BS-953 Impact Tester |
Application
It is used for impact resistance of safety shoes. Impact steel head of safety shoes by 100J or 200J kinetic energy, and inspect it subsidence to check it quality.
Feature
Key Specification
Model | GT-KB17A | GT-KB17B | GT-KB17C | |
Drop height range | 0- 1200mm | |||
Impact energy | 200±2 J | 100±2 J | 101.7±2 J | |
Impact hammer |
Wedge, Length 75mm, Angle 90° |
Cylinder, Diameter 25.4mm |
||
Impact surface | Corner radius R3 mm | Spherical radius R25.4mm | Length 152.4±3.2 mm | |
Impact hammer mass | 20±0.2 kg | 22.7±0.23kg | ||
Power supply | 1∮AC220V 50HZ 5A | |||
Dimensions(L x W x H) | 60 x 70 x 220cm | |||
Weight | 230kg | |||
Standards |
EN ISO 20344-2020 Section 5.4 and 5.20, AS/NZS 2210.2 Section5.4 and 5.16 GB/T 20991 Section 5.4 and 5.16, BS EN-344-1 Section 5.3 BS-953 Section 5, ISO 20345 ISO 22568-1-2019, 5.3.1.1 |
CSA-Z195-14 Section 6.2, ANSI-Z41 Section 1.4.5 , ASTM F2412 Section 5, ASTM F2413 Section 5.1, NOM-113-STPS-2009 Section 8.3 |
CSA-Z195-14 Section 6.4, ASTM F2412 Section 7, ASTM F2413 Section 5.3, NOM-113-STPS-2009 Section 8.6 |
Accessories
Standard accessories | 1set | Toecap clamp device |
1pc | Power line | |
Option accessories
|
Air compressor | |
Metatarsal protective test clamp device for EN ISO 20344-2020 Section 5.20 |

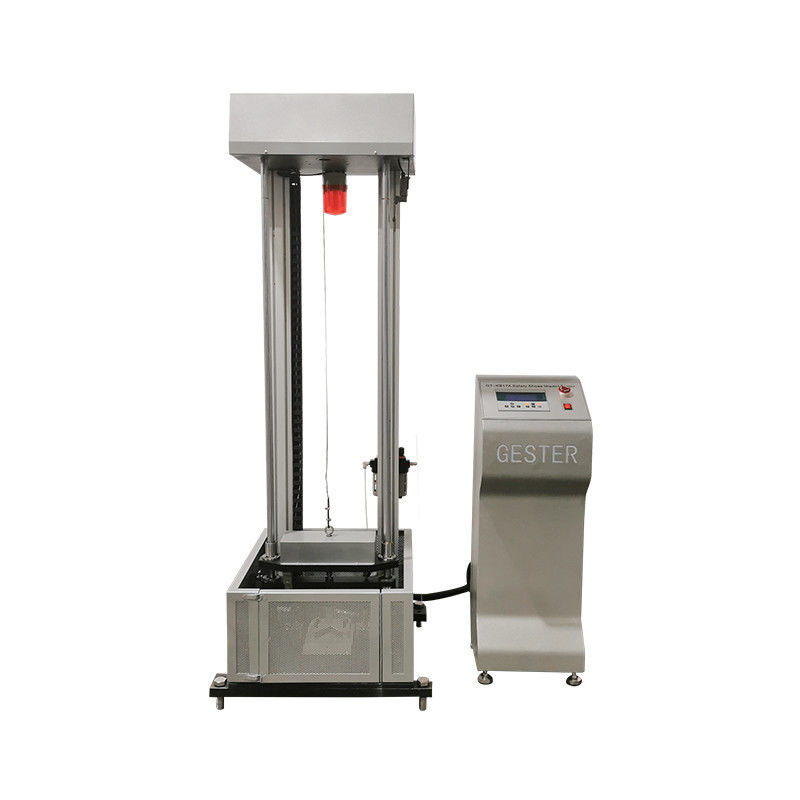

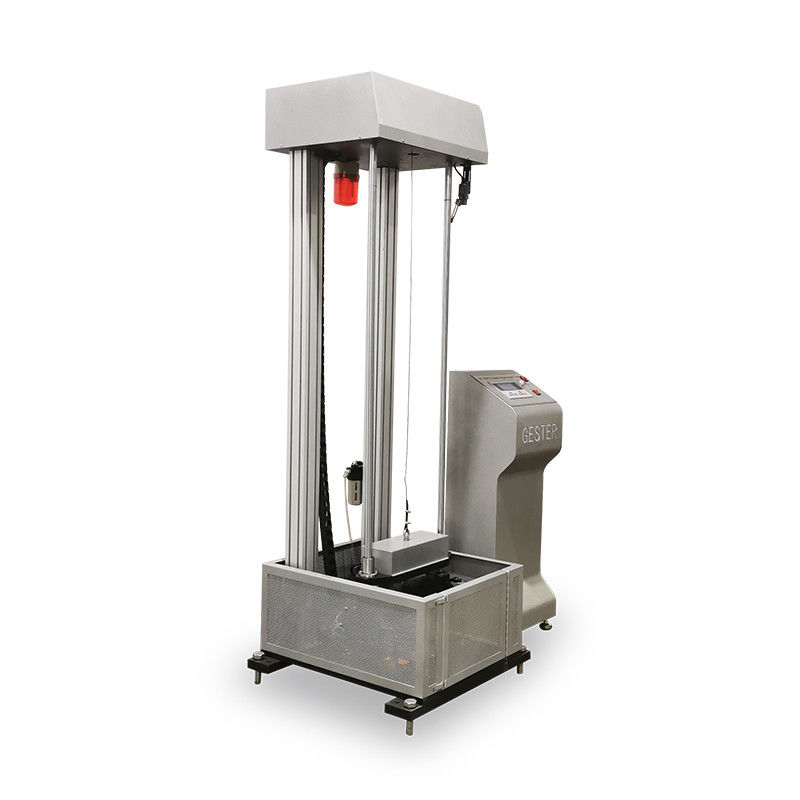

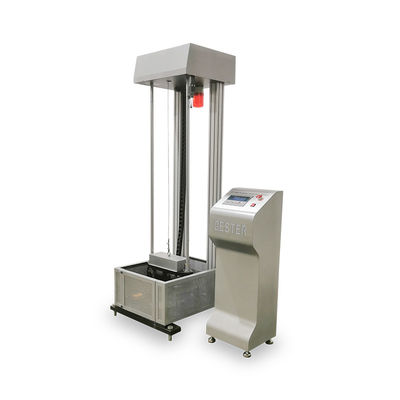

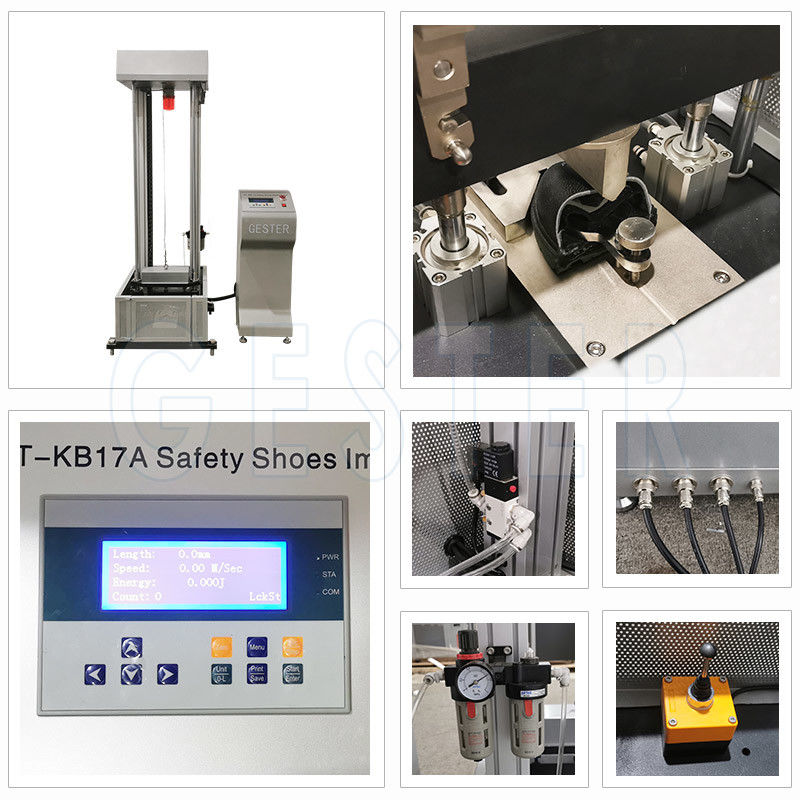

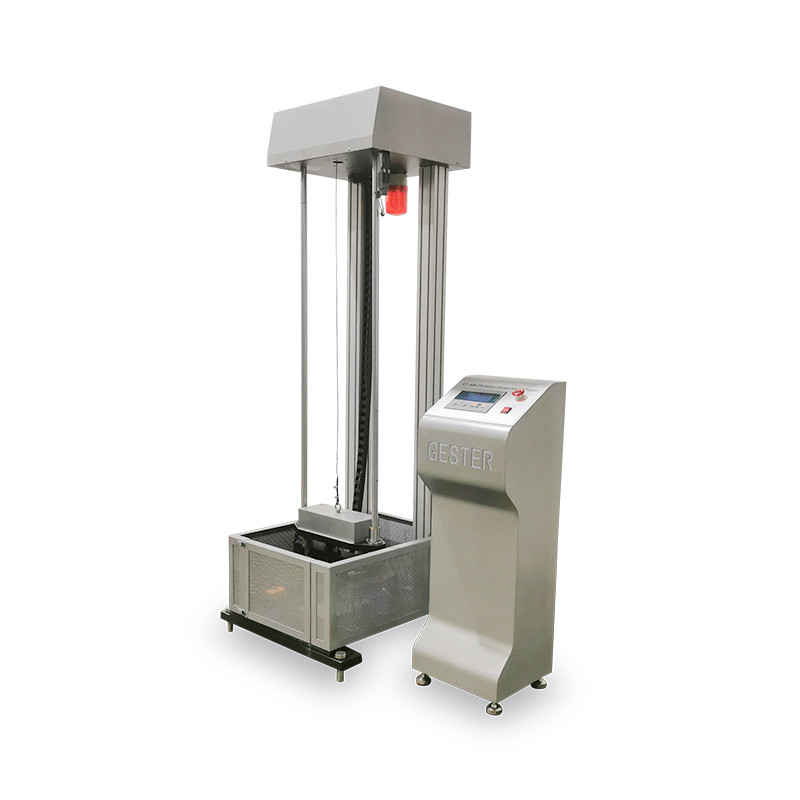

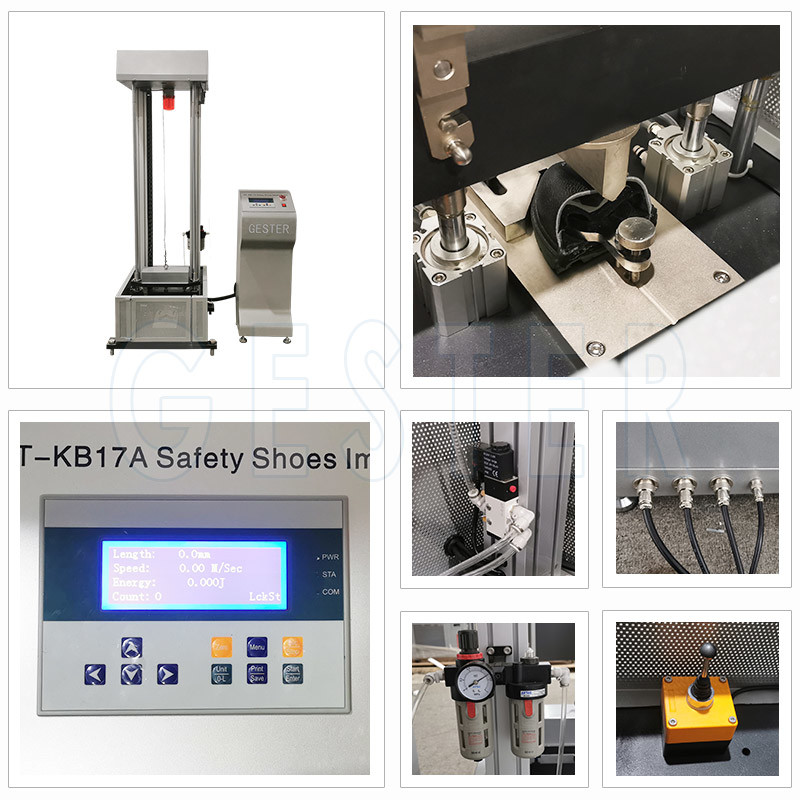

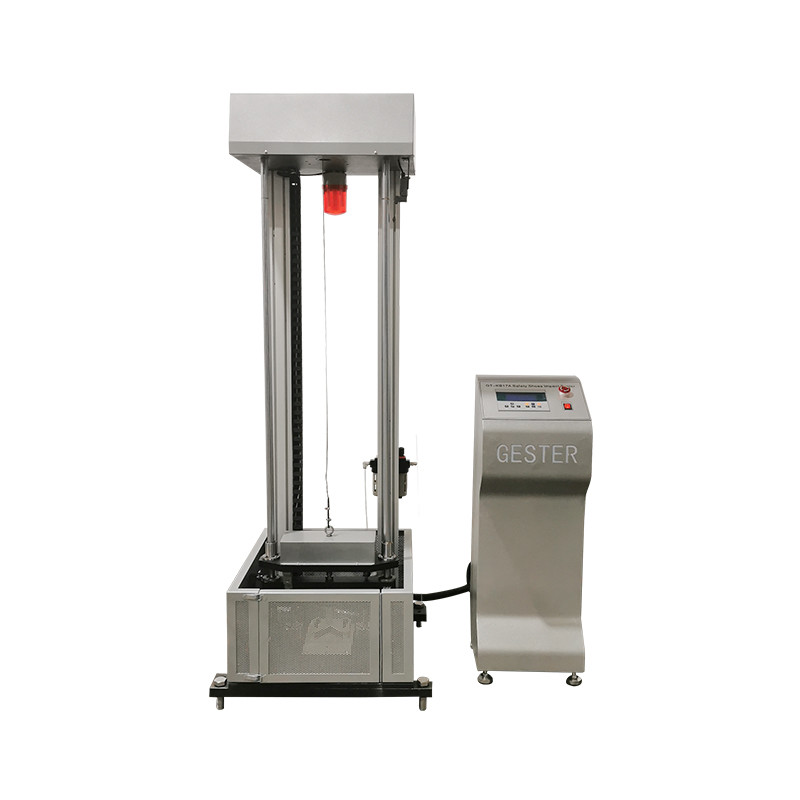

Product Picture
