Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GT-3000 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Power: | AC220V | Usage: | Simulation Light Color Fastness |
---|---|---|---|
Product Name: | Xenon Weathering Test Chamber | Warranty: | 12 Months |
Color: | Red/white | Advantage: | Factory Direct Sale, Fast Delivery |
High Light: | 4500W Textile Testing Machine,Irradiation Control Textile Testing Machine,4500W Xenon Weathering Test Chamber |

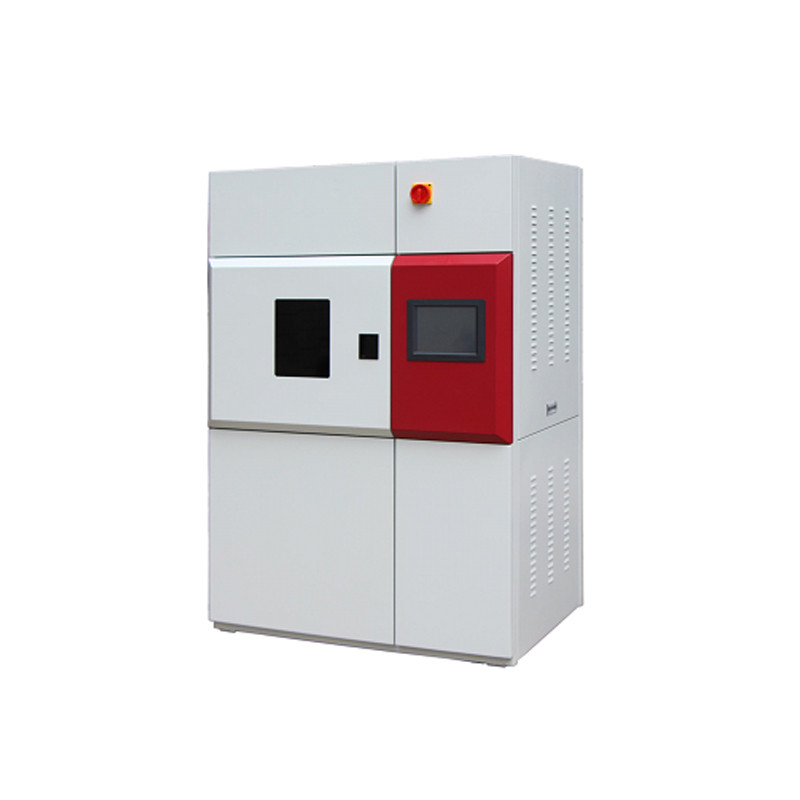

Water-Cooled Light Weather Fastness Tester Xenon Test Chamber
Application: Water-Cooled Light Weather Fastness Tester is widely use in solar radiation simulation light color fastness, light perspiration color fastness and light aging test of rubber, plastic, coating, petrochemical industry, car, textile industrial products and other materials. It through simulate illumination, exposed to the rain, mist spraying, alternating light and dark, temperature and humidity climates conditions to test material products’ color fading, aging, transmittance, peeling, hardness, softness and other performance changes. Standards: Textile: GB/T 8430, GB/T 14576, GB/T 8427, ISO 105-B02/B04/B06, AATCC 169, M&S C09 / C09A, JIS L0843 Paint coating: GB/T1865, ASTM D6695, ISO 11341, NES M0135 Rubber & Plastics: GB/T 12831, GB/T9344, GB/T 16422.1, ASTM D2565, ISO 4892 Non-metallic Material: AATCC TM16, ASTM G26, ASTM D4459, ASTM G155, GB/T 2423.24,GB/T 15102, GB/T 15104 Car: SAE J2527, SAE J1885, SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM 0067- MA, HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431 |
Model | GT-3000-1 | GT-3000-2 |
Irradiation Source (Water-cooled Long Xenon Arc Lamp) |
4500W | |
Exposure Area | 2660cm2 | 4700cm2 |
Sample Holders Capacity |
ISO:135×45mm 33pcs Or AATCC:100×75mm 20pcs |
ISO:135×45mm 47pcs Or AATCC:100×75mm 35pcs |
Average Lamp Life | 1000 hours | |
Sample Rack Rotating Speed | 1-7rpm ( adjustment) | |
Sample Rack Outside Diameter | Φ550mm | |
Chamber Temperature Range | 20-93℃ ±1 ℃ Resolution: 0.1 ℃ | |
BPT | 35-125 ℃ ±1 ℃ | |
BST (Option) | 35-120 ℃ ±1 ℃ | |
Chamber Humidity
|
Light Cycle: 10-70%RH;Resolution :0.1% Dark Cycle: 30-95%RH;Resolution :0.1% |
|
Irradiance Control Range |
0.6~3.08W/m²@420nm (Option: 340nm, 420nm, 300-400nm and 300-800nm) Accuracy: ±0.02W/m²@420nm. |
|
Digital Setting, Closed-loop Automatic Compensation | ||
Power Supply | AC220V±10% 50Hz 10KW | |
Dimensions
|
1200×900×1800mm(L×W×H) | |
Weight | 350kg | 360kg |
