Gester International Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | GESTER |
| Certification: | CE, ISO |
| Model Number: | HEY26B |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packaging |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 set/month |
| Key Word: | Forming Machine Inline Crusher | Warranty: | 1 Year |
|---|---|---|---|
| Broken Material: | PP, PS, PET | Crushing Chamber Size(mm): | 850x330 |
| Weight: | 2000kg | After-sales Service Provided: | Online Support, Video Technical Support |
| Maximum Crushing Capacity(kg/hr): | 450-700 | Grinding Noise When The Db(A): | 80-100 |
| High Light: | Plastic Crushing Machine With Recycling System,Fully Closed Plastic Crushing Machine,Fully Closed Inline Crusher Machine |
||
Fully Closed State Cup Plastic Crushing Forming Machine Inline Crusher Machine
Product Application
Crushing and recycling machine is suitable to match machine of environmental protection drinking cups, bowls and other packaging machine (cup making machine, plastic suction machine). In the production process of cup making machine, usually the finished product flow to the packaging time, will be left with mesh type scrap, according to the traditional method is to collect by a winder, then manual transport, centralized crushing, in this process, it is difficult to avoid a large number of pollution in the collection and transportation process.
In view of the above situation, the company timely introduces the cup making machine scrap immediately crushing recycle system, the machine integration of timely crushing, transportation, storage as one of the operation, in this process are in a fully closed state, to avoid pollution, save labor, and meet environmental protection requirements, while the production process is obtained to improve the environment, the biggest effect is to change the traditional productive forces.
Product Parameter
| Model | HEY26B-1 | HEY26B-2 |
| Position | 1 | 2 |
| Broken material | PP, PS, PET | |
| Power of main motor(kw) | 11 | |
| Speed(r.p.m) | 600-900 | |
| Feeding motor power(kw) | 4 | |
| Speed(r.p.m) | 2800 | |
| Traction motor power(kw) | 1.5 | |
| Speed(r.p.m)optional | 20-300 | |
| The number of fixed blades | 4 | |
| The number of blade rotation | 6 | |
| Crushing chamber size(mm) | 850x330 | |
| Maximum crushing capacity(kg/hr) | 450-700 | |
| Grinding noise when the db(A) | 80-100 | |
| Tool material | DC53 | |
| Sieve aperture(mm) | 8, 9, 10, 12 | |
| Outline size (LxWxH) (mm) | 1538X1100X1668 | 1538X1140X1728 |
| Weight(kg) | 2000 | |

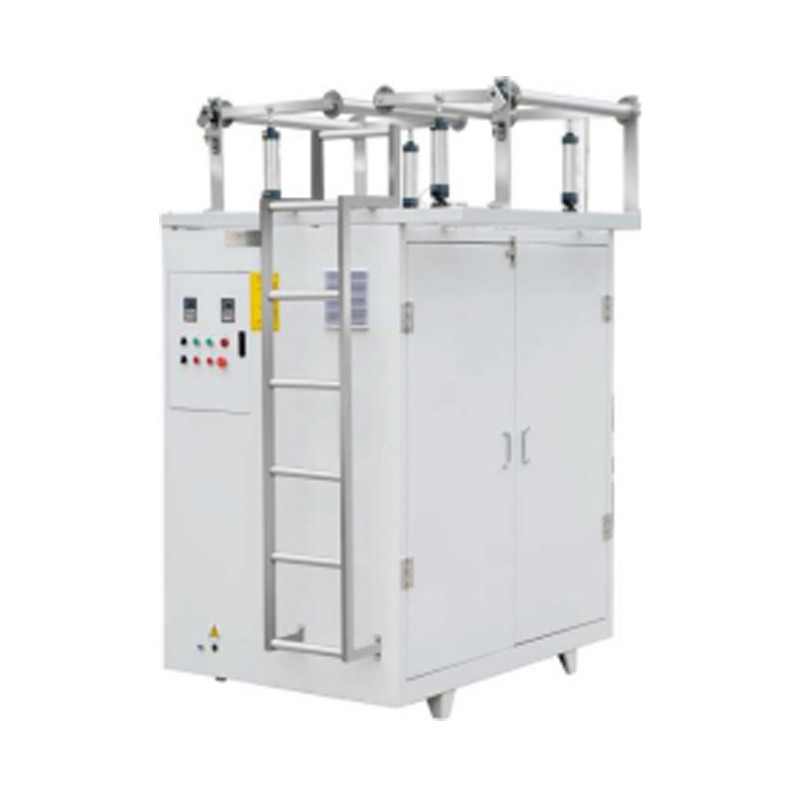

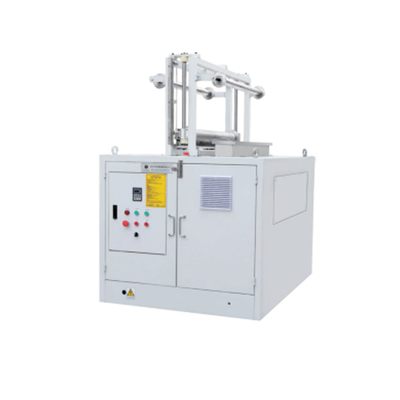

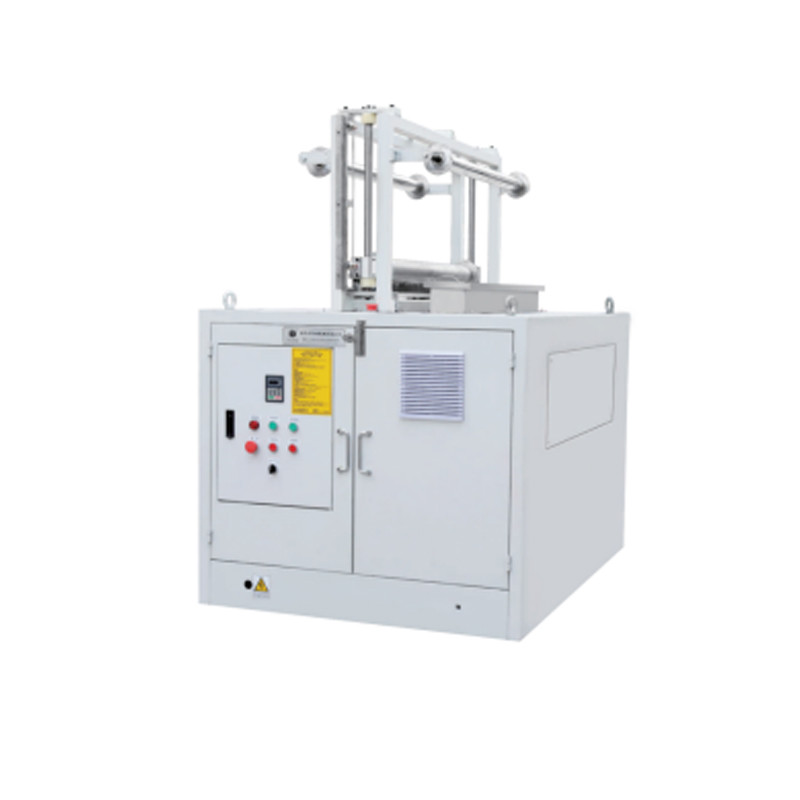

Product Display
