Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GTM51 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Condition: | New | Warranty: | 1 Year |
---|---|---|---|
After-sales Service Provided: | Video Technical Support,Online Support,commissioning And Training | Name: | Automatic High Speed Pressure Former |

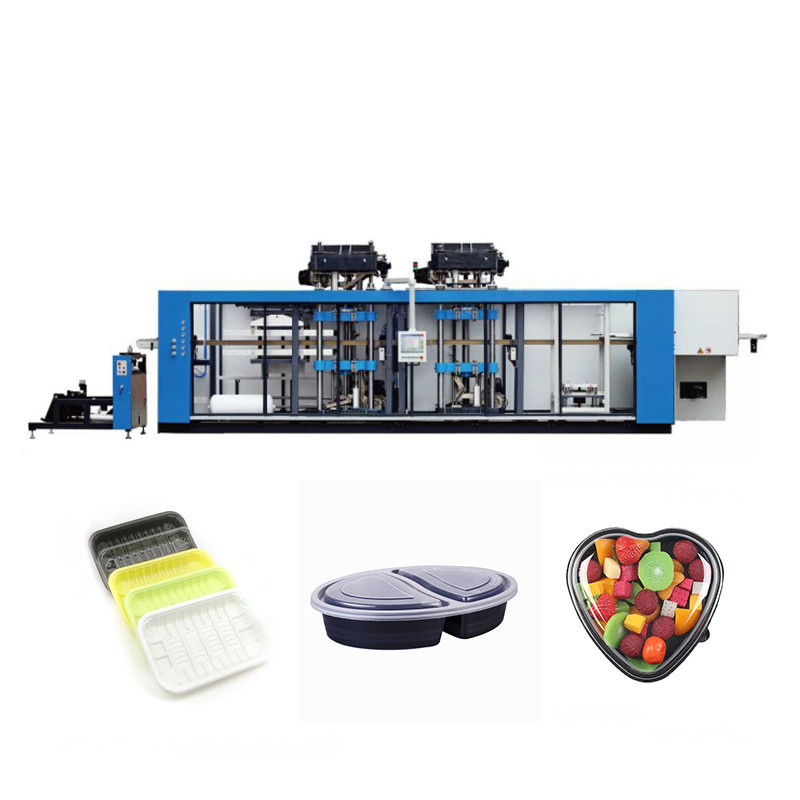

Production: | Vegetable And Fruit Box, Biscuit Box, Lunch Box, Fresh Meat Tray Box, Etc. | Automation: | Fully Atuomatic |
High Light: | 6 Bar PP Thermoforming Machine,ISO PP Thermoforming Machine,6 Bar Pressure Thermoforming Machine |

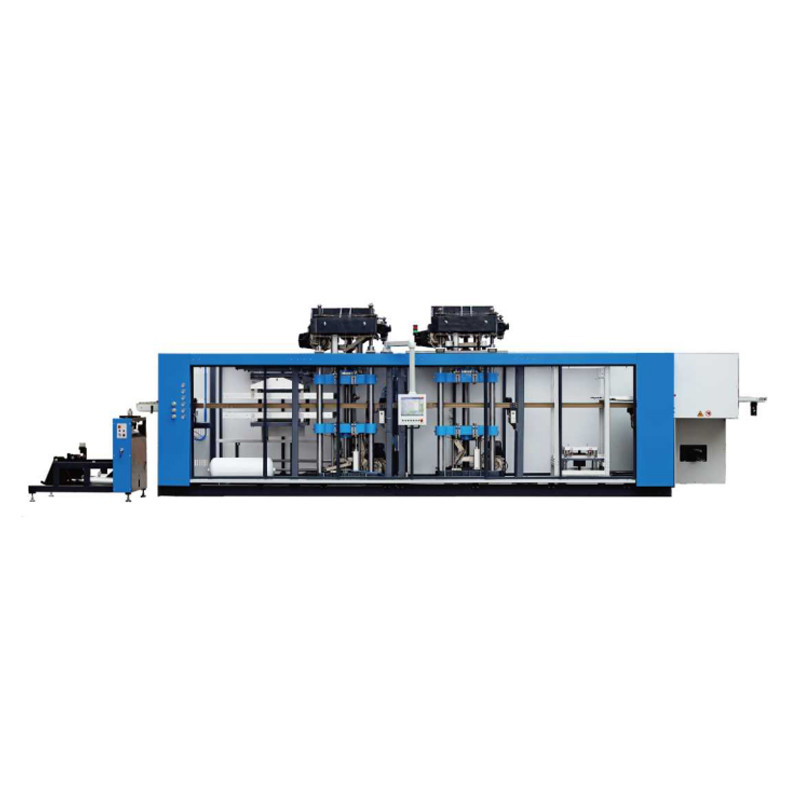

Product Introduction:
This Thermoforming Machine adopts the method of laminating heating, adopts the technology of moving film punching, no secondary pollution, high sanitary level, high production safety coefficient, saving labor, the equipment set positive pressure/negative pressure/positive and negative pressure automatic molding, punching, cutting, manipulator grasp stack counting in a production line to complete continuously, automatic conveying products.There is no need for manual punching, manual cutting and other subsequent processing procedures, reduce a series of quality problems caused by manual punching and cutting and cumbersome subsequent procedures, save the site, reduce secondary pollution, save labor costs, product quality has been greatly improved.
Feature:
PP Thermoforming Machine Key Specification:
Model | GTM51 3 Station |
Maximum forming area | 760x540 mm |
Minimum forming area | 375x350 mm |
Maximum mold dimension | 780x560 mm |
Max Mold Weight (Each workstation ) | 300kg |
Height over sheet material forming part | 150 mm |
Height under sheet material forming part | 150 mm |
Dry cycle speed | 45cycles/ min |
Maximum film width | 810mm |
Operating pressure | 6bar |
