Place of Origin: | CHINA |
---|---|
Brand Name: | GESTER |
Certification: | CE,ISO |
Model Number: | HEY02 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Product Name: | Full Automatic Four Stations Pressure Plastic Thermoforming Machine | Keyword: | Plastic Container Thermoforming Machine |
---|---|---|---|
Function: | Automation | Certificate: | CE, ISO |
Power Consumption: | 60-70kw/h | Forming Mould Width (mm): | 350-680 |
Max. Formed Depth (mm): | 100 | Price: | Factory Price |
High Light: | Four Stations Plastic Thermoforming Machine,Full Automatic Plastic Thermoforming Machine,Four Stations Plastic Thermoformer |
Full Automatic Four Stations Pressure Plastic Thermoforming Machine
Product Introduction
Mainly for the production of variety plastic containers ( egg tray, fruit container, food container, package containers, etc) with thermoplastic sheets, such as PP,APET, PS, PVC, EPS, OPS, PEEK, PLA, CPET,etc.
Feature
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC.
Touch screen makes the operation convenient and easy.
2. Pressure And/Or Vacuum forming.
3. Upper and down mould forming.
4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
5. Upper & lower heater, four sections heating.
6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage. Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
7. The molds of forming, cutting and punching controlled by servo motor, products automatically count.
8. Products be stacked downward.
9. Data memorization function.
10. Feeding width can be synchronously or independently adjusted in electrical way.
11. Heater will automatically push-out when the sheet is over.
12. Auto roll sheet loading, reduce the working load.
Plastic Thermoforming Machine Key Specification
Model | HEY02-6040 | HEY02-6850 | HEY02-7561 |
Max.Forming Area (mm2) | 600x400 | 680x500 | 750x610 |
4 Stations | Forming, Cutting, Punching, Stacking | ||
Sheet Width (mm) | 350-720 | ||
Sheet Thickness (mm) | 0.2-1.5 | ||
Max. Dia. Of Sheet Roll (mm) | 800 | ||
Forming Mould Stroke(mm) | Upper Mould 150, Down Mould 150 | ||
Power Consumption | 60-70KW/H | ||
Forming Mould Width (mm) | 350-680 | ||
Max. Formed Depth (mm) | 100 | ||
Cutting Mould Stroke(mm) |
Upper Mould 150, Down Mould 150 |
||
Max. Cutting Area (mm2) | 680×500 | ||
Cutting Force (ton) | 40 | ||
Dry Speed (cycle/min) | Max 30 | ||
Product Cooling Method | By Water Cooling | ||
Vacuum Pump | UniverstarXD100 | ||
Power Supply | 3 phase 4 line 380V50Hz | ||
Max. Heating Power | 121.6 | ||
Max. Power of Whole Machine (kw) | 150 | ||
Max. Machine Dimension(L*W*H) (mm) | 11150×2300×2700 | ||
Weight of Whole Machine ( T ) | ≈11 |
Brand of Main Components
PLC | Taiwan Delta |
Touch Screen Monitor (10 inch) | Taiwan Delta |
Feeding Servo Motor | Taiwan Delta |
Forming Down Mould Servo Motor | Taiwan Delta |
Forming Upper Mould Servo Motor | Taiwan Delta |
Cutting Down Mould Servo Motor | Taiwan Delta |
Cutting Upper Mould Servo Motor | Taiwan Delta |
Stacking Servo Motor | Taiwan Delta |
Heater (192 pcs) | TRIMBLE |
AC Contactor | French Schneider |
Thermo Relay | Schneider |
Intermediate Relay | Japan Omron |
Air Switch | South Korea LS |
Pneumatic Component | MAC. AirTAC/ ZHICHENG |
Cylinder | China ZHICHENG |

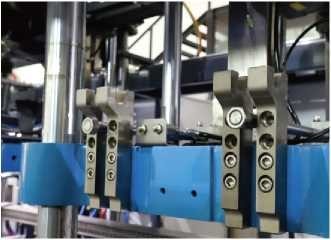

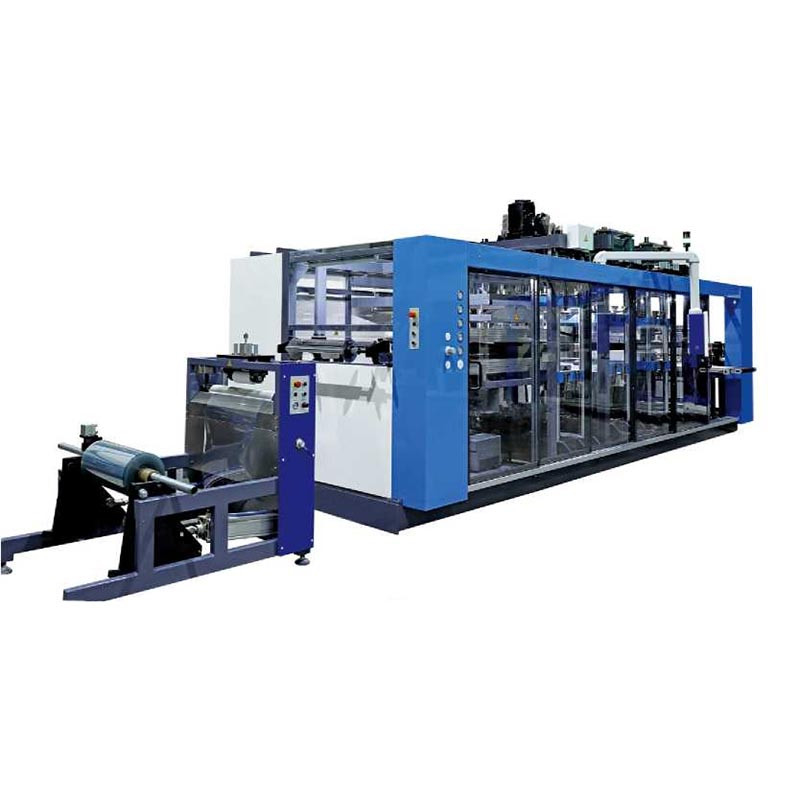

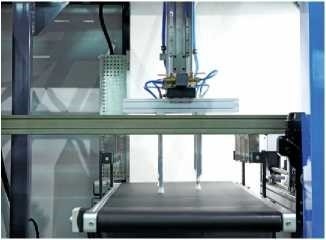

Product Image
