Place of Origin: | China |
---|---|
Brand Name: | GESTER |
Certification: | CE, ISO |
Model Number: | GTM59 |
Minimum Order Quantity: | 1 set |
Packaging Details: | wooden packaging |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets/month |
Condition: | New | Product Type: | Vegetable And Fruit Box, Biscuit Box, Lunch Box, Fresh Meat Tray Box, Etc. |
---|---|---|---|
Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support,Online Support,commissioning And Training |
Service: | Perfect After-sales Service | Advantage: | Factory Direct Sale |
High Light: | 35 Cycles/Min Large Thermoforming Machine,Four Stations Large Thermoforming Machine,35 Cycles/Min Automatic Thermoforming Machine |

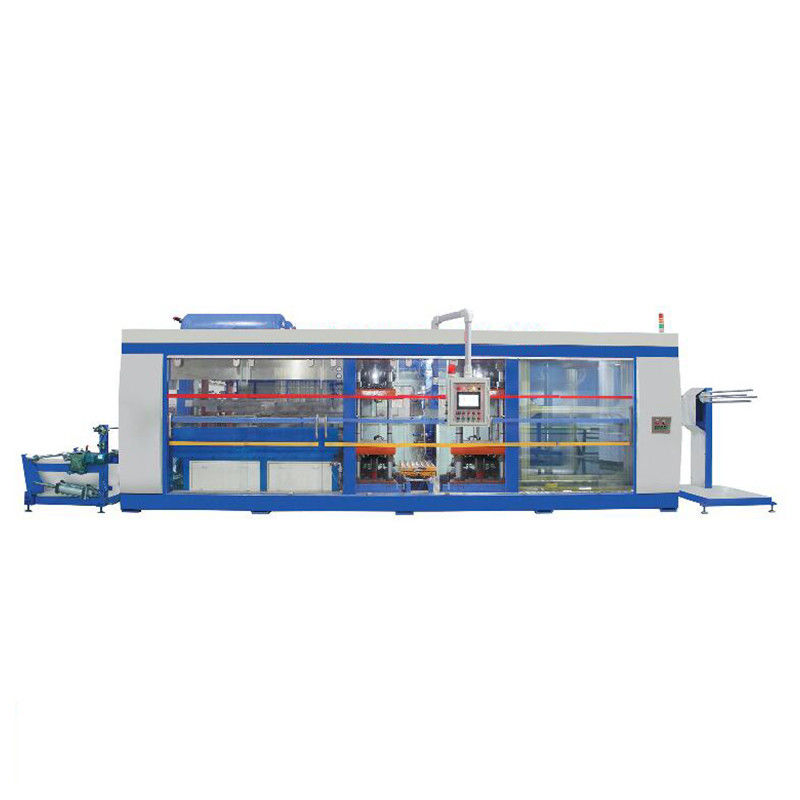

Product Introduction:
Automatic thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved.

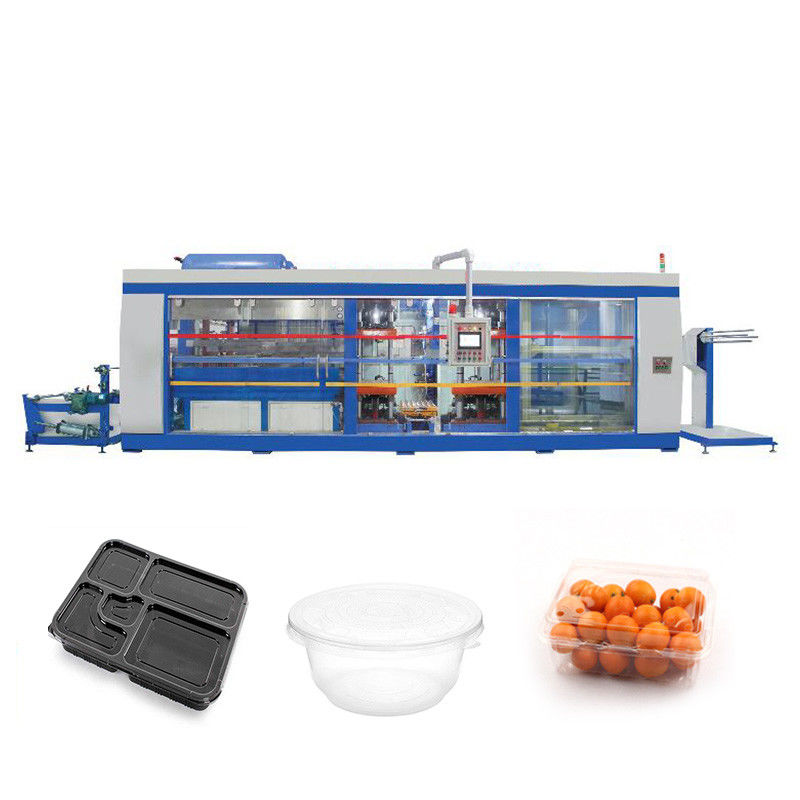

Application:
This thermoforming machine used for producing high demand of disposable fresh/fast food, fruit plastic cups, boxes, plates,container, and pharmaceutical, PP, PS, PET, PVC,etc.
Feature:
1. This thermoforming equipment fully servo driven machine.no noise.no vibration,forming good and fast.
2. Fully machine in compact structure,taking small floor space;
3. Furnaces automatic removal device,can be turned down at any time during production without breaking the sheet.reaching without wasting materials;
4. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the oven roast slices.
5. Forming, cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
6. Thermoformer machine auto cutting,auto counting,auto transmission by PLC.
Key Specification:
Model |
GTM59
|
Maximum forming area |
625x453mm
|
Minimum forming area |
250x200mm
|
Maximum mold size |
650x478mm
|
Maximum mold weight |
250kg
|
Height over sheet material forming part |
120mm
|
Height under sheet material forming part |
120mm
|
Dry cycle speed |
35 cycles/min
|
Maximum film width |
710mm
|
Operating pressure |
6 bar
|
